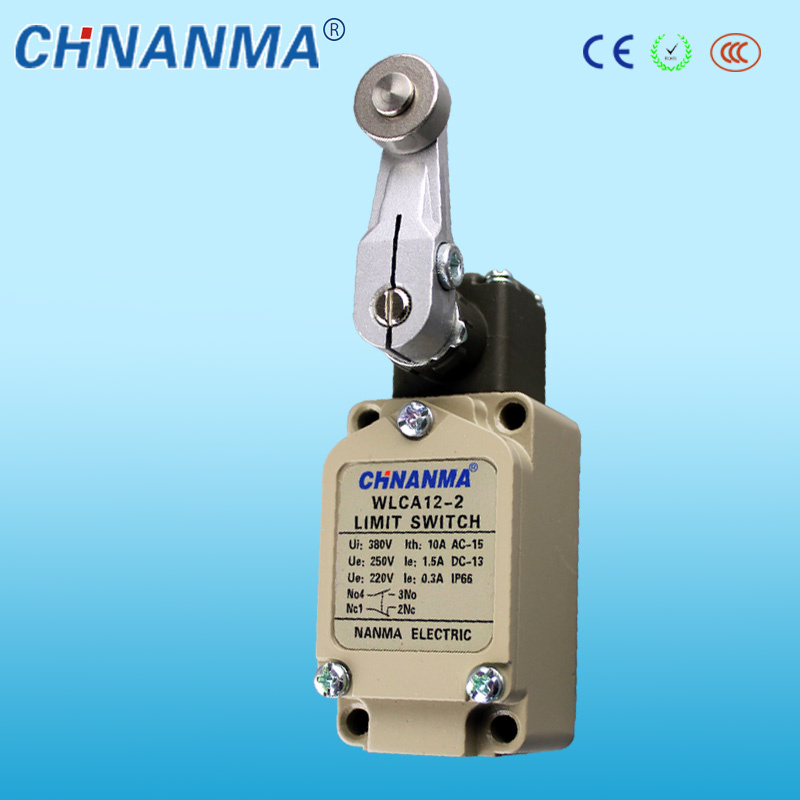

Waterproof Wlca2-2 Limit Switch

Name: Waterproof Wlca2-2 Limit Switch
Brand: all-electronics-online.com
SKU: 732009422
Availability: InStock
Rating: 4.5 (138 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	WLCA2-2

Product Description

Double-circuit limit switch.is widely used.
Firm aluminum alloy enclosure.
High mechanical strength.
Structure preventing oil,water and pressure.
Indicating plate with setting position is installed in it,so it is easy to maintain.
Kinds of actuators is taken convenience for using.
Built-in contact stand has double-reed,so it has long mechanical life.

Specification

Item		Data
Rating load		5A/250VAC
Operating speed		1mm-1m/s
Operating frequency	Mechanical	120times/min
	Electrical	30times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		25MΩ(intial value)
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	100,000above
	Mechanical	1,000,000above
Pertection degree		IP65
Operating temperature		-10'C~80'C
Operating humidity		≤ 95%

Outline And Installation Dimensions

OF Max	2720g(6.86N)
RF Min	9100g(0.59g)
PT Max	1.7mm
OT Min	5.6mm
MD Max	1mm
EP	--
OP	--

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
