| Prod Model: |
Tk119-3G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk119-3G |
| Color: |
Black |
| Weight: |
50g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36VDC |
| Dimension: |
87(L)X41.6(W)X 12(H) |
| WCDMA Frequency: |
W850/W1900/W2100MHz |
| Waterproof: |
IP67 |
| Battery Capacity: |
70mAh |
| GPS Positioning Accuracy: |
5-15m (Depend GPS Signal) |
Product Description
Tk119-3G works with WCDMA / GSM dual cellular network and GPS / LBS positioning system.It is the perfect partner for vehicle. User can view the real time location of vehicles on the tracking platform by APP & WEB & SMS.
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*Suppoert 3G network,WCDMA Frequency:W850/W1900/W2100MHz
*Wide Input Voltage: 6-36V DC.
*GPS + WCDMA / GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor for vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle.
*Water proof level IP67
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Alarm Type
Vibration Alarm
Collision / falling Alarm
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
Function Extension
Function Interface: Power cable , Relays, ACC
Extended Interface: GPIO for adding extensions (need customization)
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
| Main Function Table |
| Voltage | 12VDC/24VDC/36VDC |
| Work current | <30mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 15m |
| GSM positioning accuracy | 100m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 70mAh |
| Dimensions (mm) | 87(L)X 41.6(W) X 12(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 50g |

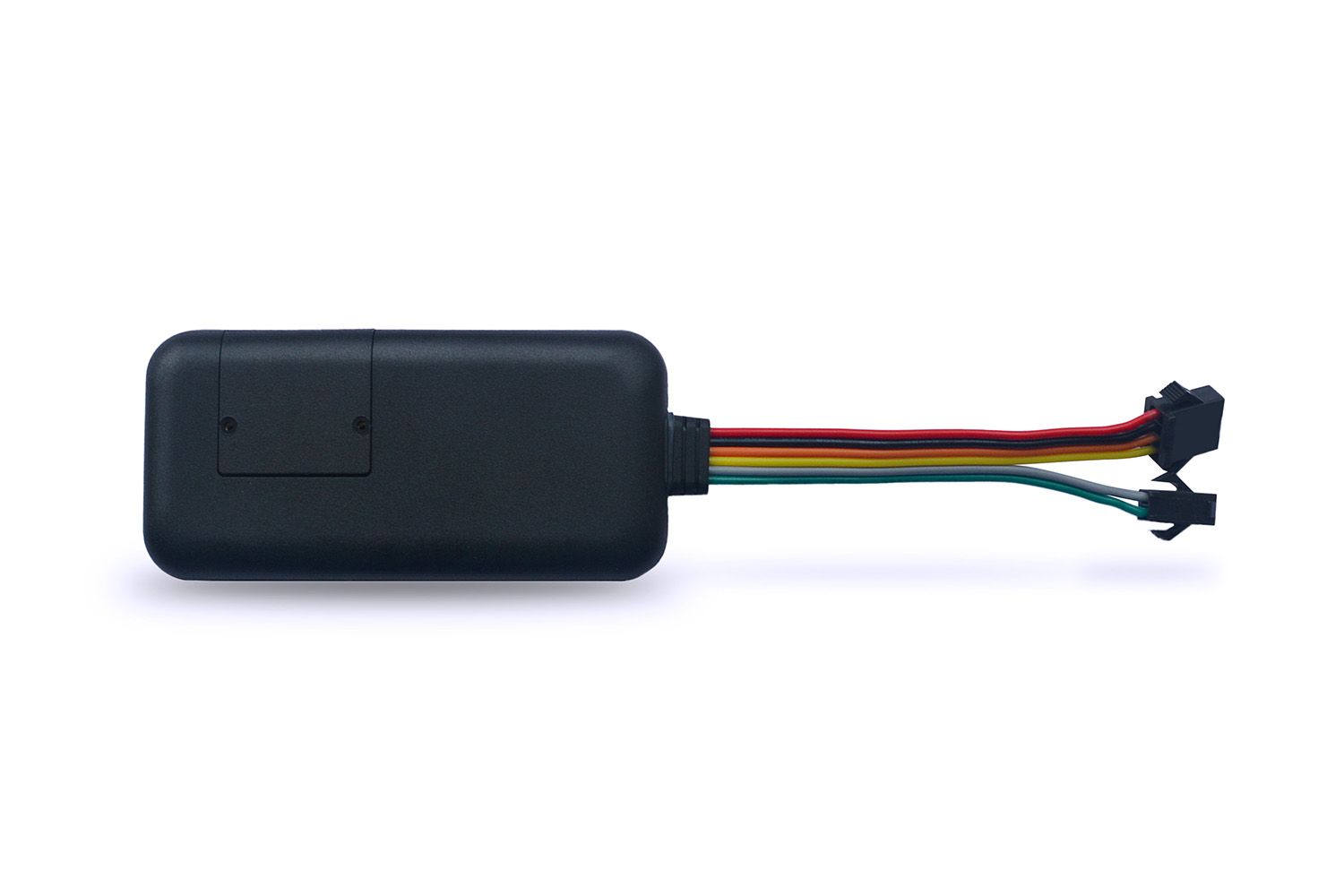

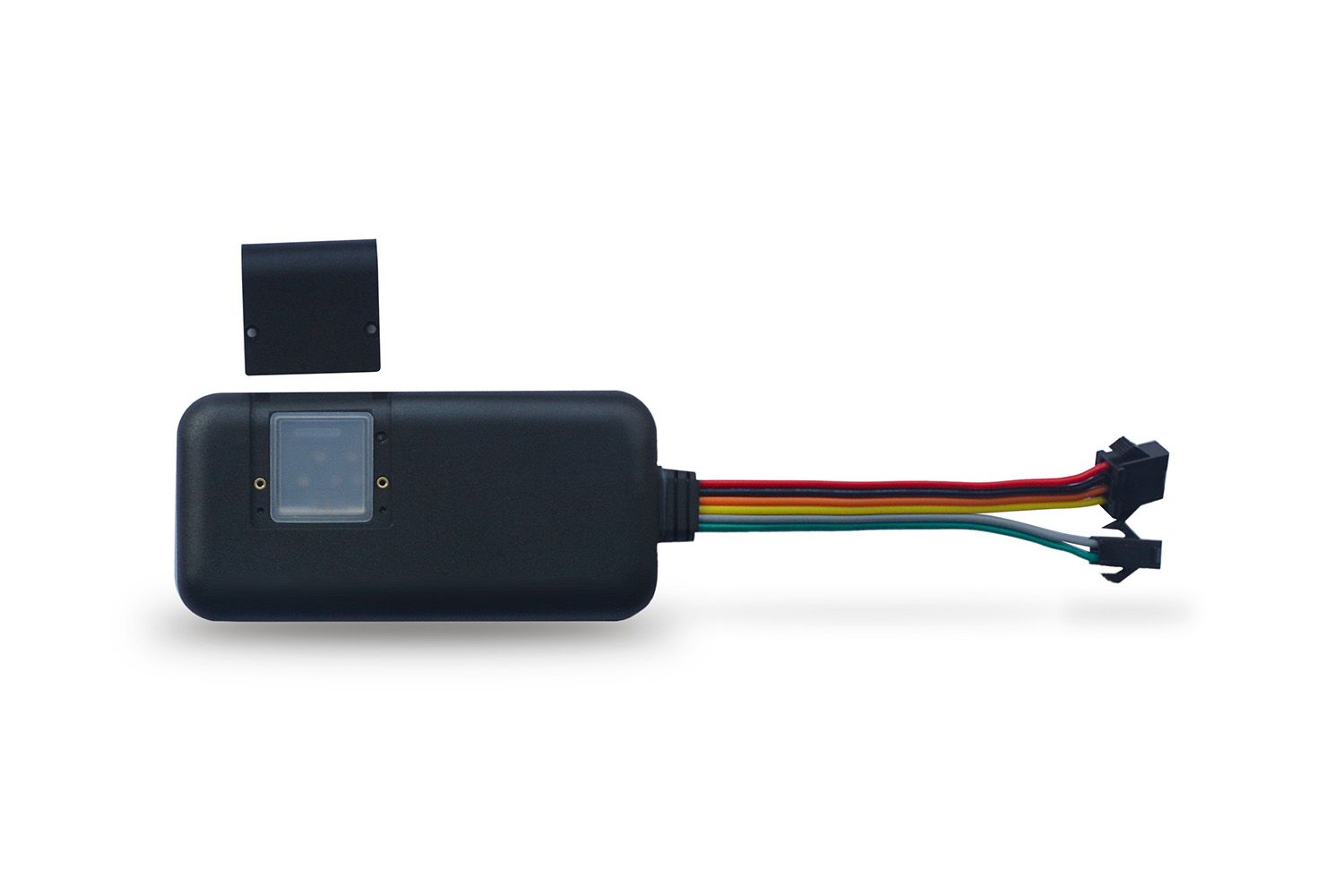

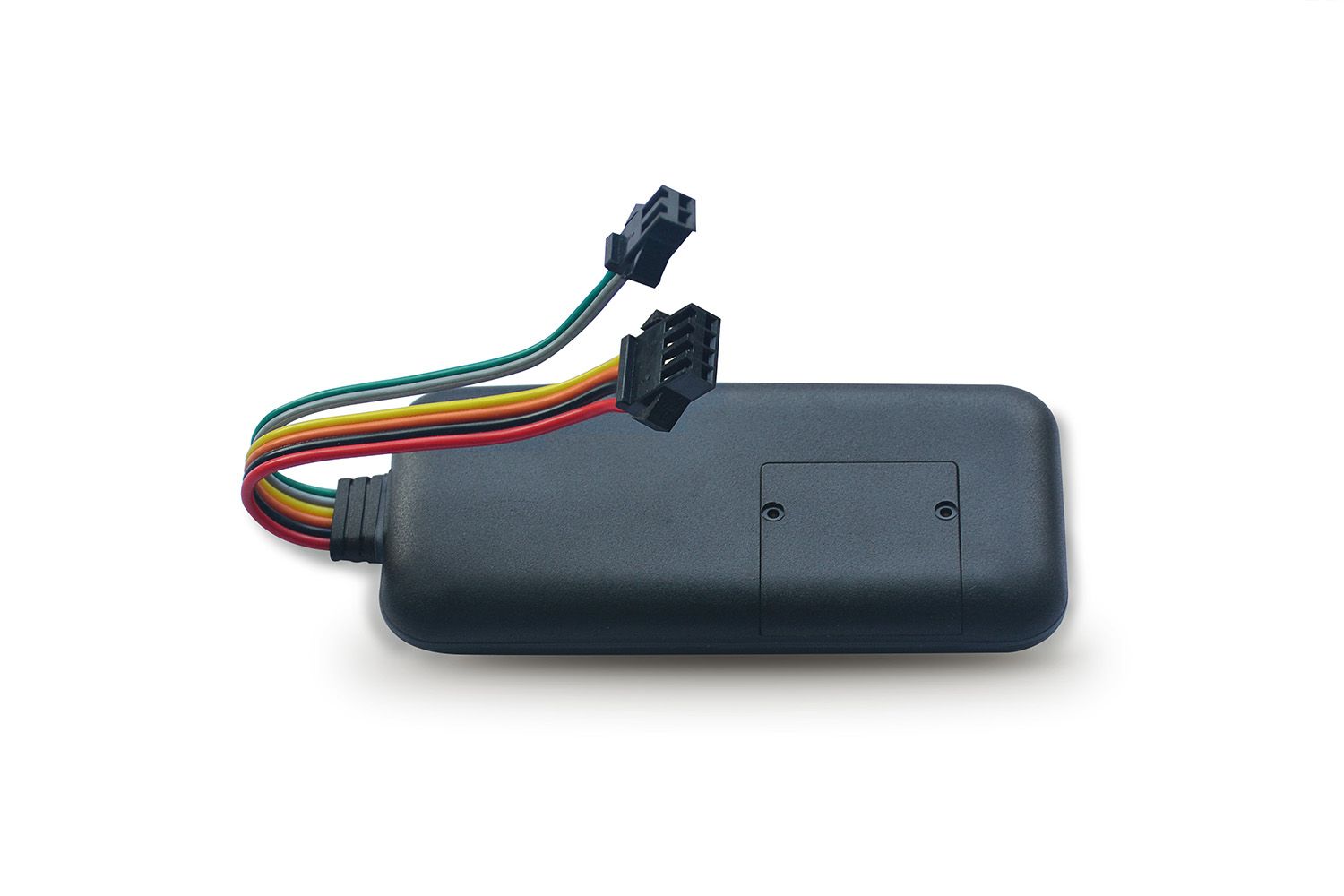

3G wired GPS tracker TK119-3G picture
