Enping City Baofeng Electronic Equipment Factory >> Wcs-202 Digital Professional Wireless Meeting System

Wcs-202 Digital Professional Wireless Meeting System

Wcs-202 Digital Professional Wireless Meeting System
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: WCS-202C/WCS-202D
Main Function: Video-Tracking / Discussing
Composition: Controller/Chairman Unit/Delegate
Controller Model: Wcs-20m
Chairman Unit: Wcs-202c
Delegate Unit: Wcs-202D
Mic Color Option: Black or Silver
Connect Mic Qty: 255 PCS
Working Distance: 100 Meter
Material Of Mic: ABS Plastic
Mic Power: 1.5V AA Battery *3
Style: Gooseneck Microphone
Application: Meeting
Signal Transmission: Wireless
Directivity: Uni-direction
Transducer Principle: Condenser Microphone
Wireless Technology: UHF and Digital

Product Description

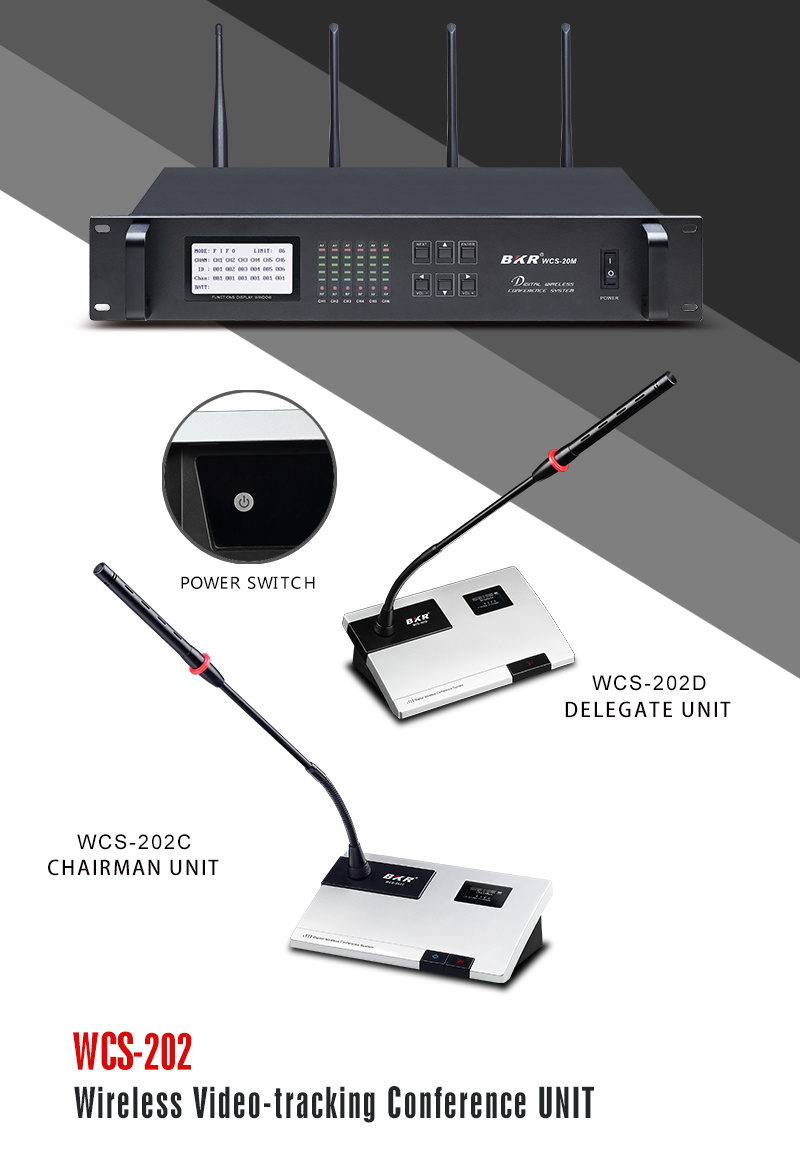

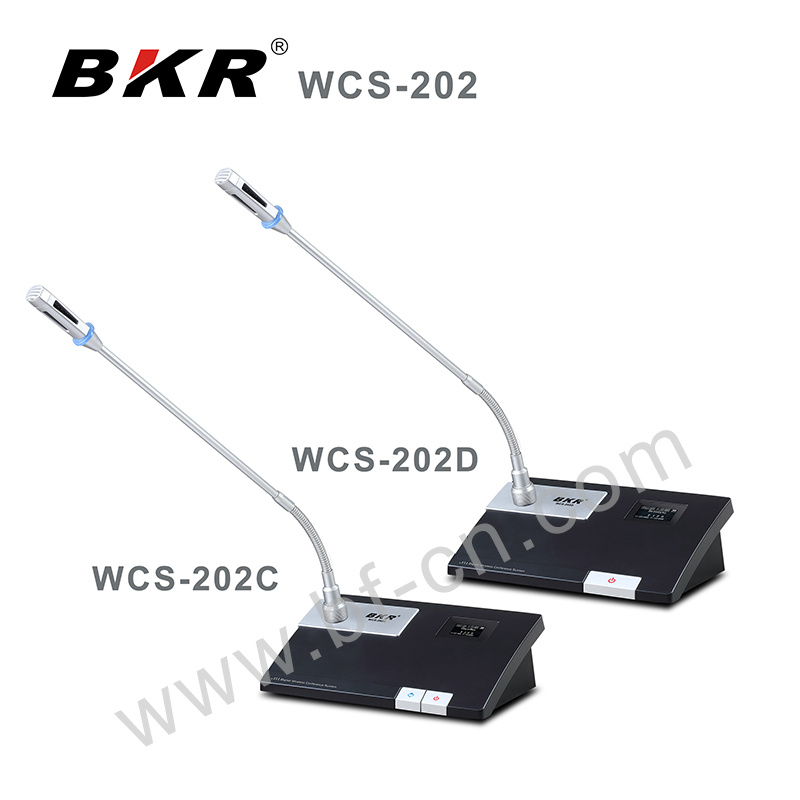

WCS-202 Digital Professional Wireless Meeting System

Function:

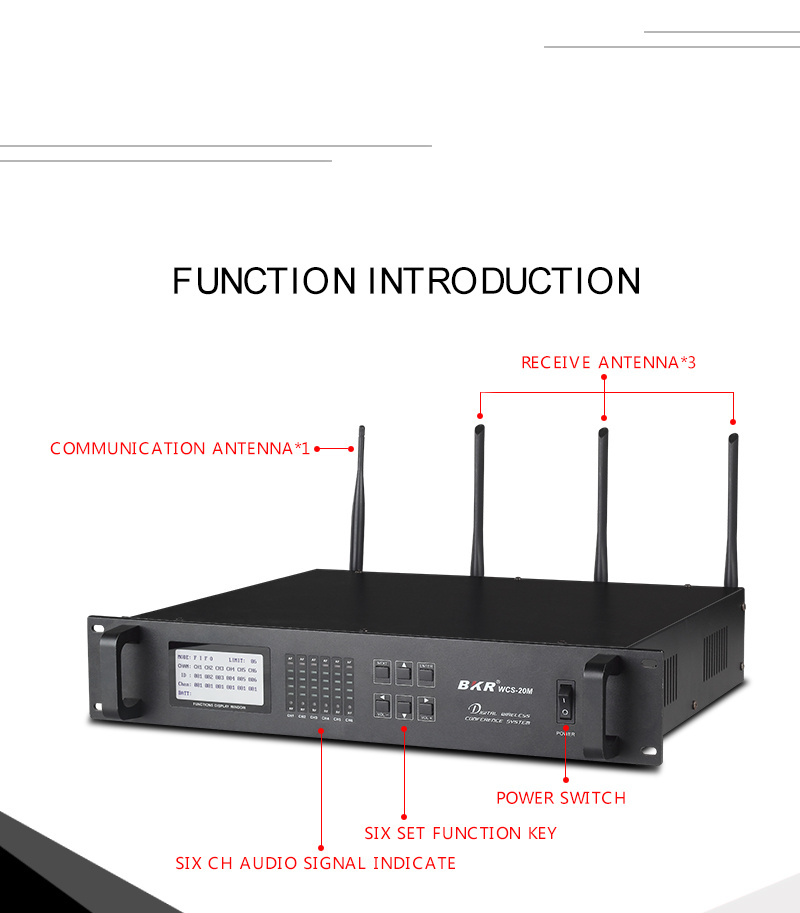

Controller: WCS-20M

*Discussion and video-tracking function digital wireless conference system;
*Products using wireless digital audio signal processing and control signal, without complicated wiring;
*Scientific IP and ID encoding design,ID:001-008,IP:001-160;
*One host can support 255 units in the effective range.
*CPU correct and encrypt code multistage,Anti electromagnetic interference, mobile phone;
*Three speech mode:FIFO( first-in first-out),limited speech,chairman specially.
1-6 speaking number can be chosen.
*There is large screen(240*64) install in the host display content.
*Chairman has priority control function key.Can cut the speech of delegate at any time.
*Using distance:80-100 meters,communication distance:100-150meter;
*Can be installed on the 19 inch standard cabinet;
*Suitable for all kinds of meeting,conference occasions.
*Antenna extension seat can use to make antenna out of the metal case when the controller put in a metal case.So that receive the signal stronger.

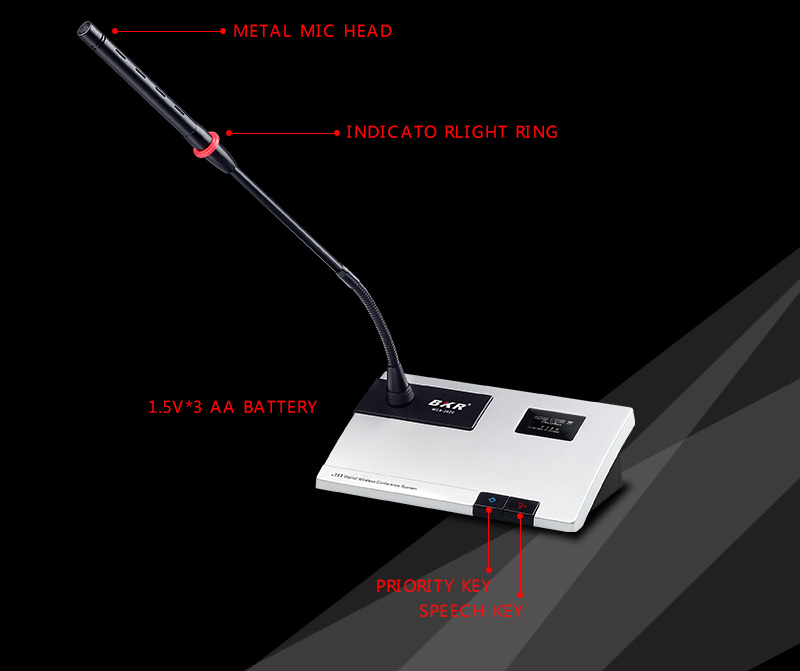

Chairman unit: WCS-202C
*Discussion/Video-tracking digital conference system unit;
*Anti electromagnetic interference, mobile phone;
*LCD monitor indicate the working status;
*Chairman has priority control function.It is not limited by the limitation function, can cut the speech of delegate at any time;
*Gooseneck microphone,there is light ring in the microphone head;
*Full power can supported 8 hours.

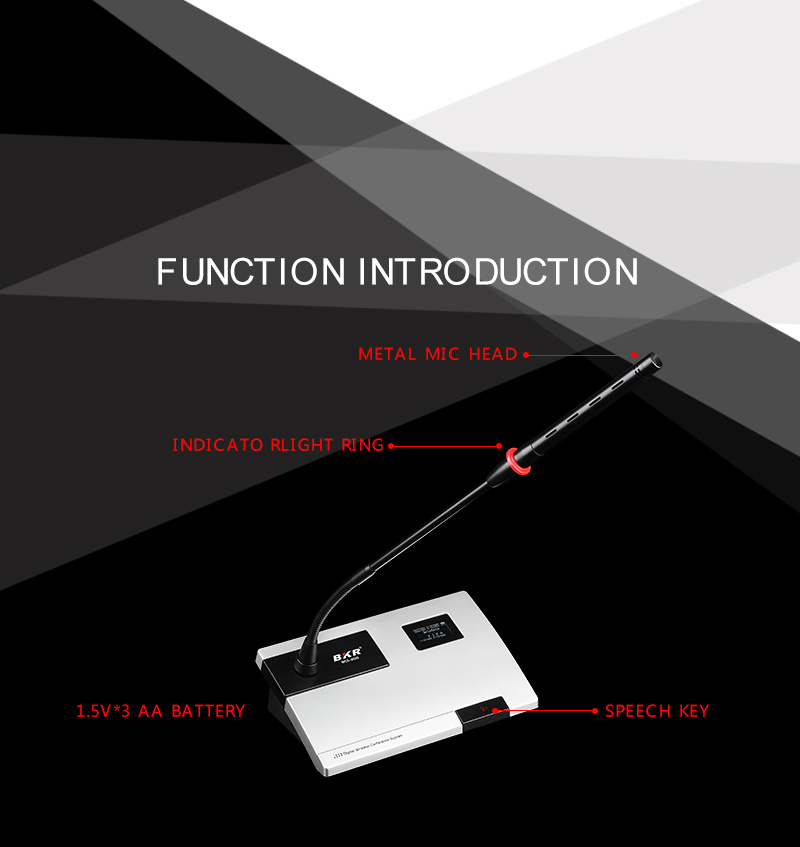

Delegete unit: WCS-202D

*Discussion/Video-tracking digital conference system unit;
*Anti electromagnetic interference, mobile phone;
*LCD monitor indicate the working status;
*Gooseneck microphone,there is light ring in the microphone head;
*Full power can supported 8 hours.


Parameter:
Controller:
Power supply:DC 12V-17V
Sensitivity: -105dBm
S/N Ratio:>90dB
T.H.D:<0.05%Db
Max.deviation range:±45KHz
Working distance: about 100meter
Power:6.5W
Size:480*370*85mm
Weight:6KG


Chairman unit:

Power supply:DC4.5V (1.5V AA*3) battery
Emission power:10mW
Maximum frequency deviation:±45KHz
Pickup head:condenser,single direction
Sensitivity:-45±2dB@1KHz
Frequency response:20Hz-18KHz
Power consumption:130mA
Size: 190*125*63mm
Weight: 850g
optional color:black or silver


Delegete unit:
Power supply:DC4.5V (1.5V AA*3) battery
Emission power:10mW
Maximum frequency deviation:±45KHz
Pickup head:condenser,single direction
Sensitivity:-45±2dB@1KHz
Frequency response:20Hz-18KHz
Power consumption:130mA
Size: 190*125*63mm
Weight: 850g
optional color:black or silver









Enping BaoFeng Electronic Equipment Factory was established in 2006 and located in microphone town -Enping city, Guangdong Province. We are a high-tech enterprise which assembling of designing, developing, manufacturing, selling and after-sale serving as a whole. Our products mainly include digital wireless conference system, wireless conference microphone, wireless microphone and other audio equipment etc.

Through our efforts, our R&D group had already developed more than 30 products and gained several national patents. Out products sell well in domestic and oversea. The quality of our products has got much affirmation from our customers.

Our company has got mature experience of OEM and ODM. We take "Technique Advanced, Investigate Bravely, Quality First and Customers Superior" as our principle to provide the best products and service to customers.

We sincerely welcome worldwide clients to cooperation with us and create mutually beneficial business relation in the future.
