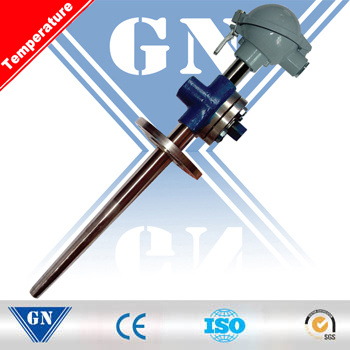

Wear-Resisting Breakable Thermocouple (CX-WR)

Prod Model:	CX-WR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	N,K,E,T,J,PT100,Cu50,Cu100
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Wear-resisting Breakable Thermocouple(CX-WR)



Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 800C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-800C centigrade .
5.Terminal blocks: terminals box


Application

We spray Ni+Wc35 on wear-resisting head to improve steel hardness. It is used for production with abrasive solid granule or fluid on the spot. The thermocouple could adopt fastener inside thermocouple to fasten filaments to completely prevent it from oil or gas leakage. It is used for production with high abrasive solid granule or fluid on the spot. It is the necessary temperature-measuring device for refinery.

Main Technical Parameters
Electric outlet: M20X1.5, NPT1/2
Wear-resisting head hardness: HRC62-65
Protection Class: IP65
Explosion-separation Class: d II BT4, d II CT5
Nominal Pressure: 2.5 MPa






Type & Specification

Type	Graduation	Measuring  Range	Protection Tube Material	Thermal Response Time	Specification
					Lx1
WRR-430MQ	S	0~1300	GH2140	less than 180S	450x300
WRR2-430MQ					500x350
WRN-430MQ	K	0~1000	GH3030		550x400
WRN2-430MQ		0~800	1Cr18Ni9Ti		600x450
WRE-430MQ	E	0~800	1Cr18Ni9Ti		650x500
WRE2-430MQ					750x600
WRR-440MQ	S	0~1300	GH2140		950x750
WRR2-440MQ
WRN-440MQ	K	0~1000	GH3030		1150x1000
WRN2-440MQ		0~800	1Cr18Ni9Ti
WRN-440MQ	E	0~600	1Cr18Ni9Ti
WRN2-440MQ

1) We may provide different class thermocouples as user's demand ;
2) Type 430 is water-proof one, and type 440 is explosion-separation one.
