Product Description
Application
The LGLF series of weather protected isolating switches is a robust range of switches suitabe for virtually any external application.
Included in the range are sigle,double and tripe pole switches from 20 to 80 amps.The base mounted mechanism for easier termination and more wiring room.Switch dimensions are 165mm×82mm with an overall height of 85mm.
Fixed Earth and Neutral connector bars with dual clamping screws per tunnel provide equal stripping lengths and secure clamping for all cables.
Terminal bore size 5-6mm.
A safety feature for mounting switches to metal strutures is the insulating caps that cover base mounting screws to totally protect them from any live cables.

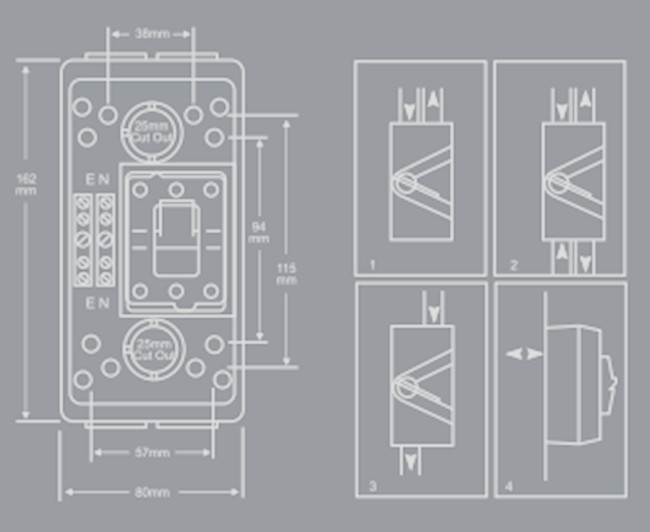

Dimensions
1.Cables looped in and out form overhead.
2.In and out from underground.
3.In and out straight through the switch.
4.Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.
Dual 25mm screwed conduit entries top and bottom(up to 55 amp.)allows four ways to surface with the switch.
Application
each unit supplied with screwed conduit plugs and screwed for easy connection to 25mm or 20mm conduits and screw caps.
Screw caps must be installed to ensure IP Rating.
The impact Resistant base and cover will survive the hardest knocks in almost any installation.The two sections are sealed with a one piece weather seal gasket.
For security,a 7mm diameter hole is provided for padlocking the lever in the OFF position.Deep moulded barriers protect the operating lever form physical abus of accidental switching.
All units comply to IEC6497-3.
Mines,and Energy,south,Australia,Approval.
Standard colours are Grey & White.
Parameters
| Products Model | Products Available | IP Rating |
| LGLF1-20 | 20A 250V Singe pole surface switch.
Terminals accommodate 16mm²cable,M Rating 220. | 56 |
LGLF1-35
LGLF1-63 | 35A/63A 250V Singe pole.
Terminals accommodate 16mm²cable,M Rating 220. | 56 |
| LGLF2-20 | 20A 440V Double.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF2-35 | 35A 440V Double.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF2-63 | 63A 440V Double.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF3-20 | 20A 440V triple pole.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF3-35 | 35A 440V triple pole.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF3-63 | 55A 440V triple pole.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF4-20 | 20A 440V triple pole.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF4-35 | 35A 440V triple pole.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF4-63 | 55A 440V triple pole.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF3-55-32CE | 55A 440V triple pole.With 32mm conduit entry at each end.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF3-63-32CE | 63A 440V triple pole.With 32mm conduit entry at each end.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
| LGLF3-80-CE | 80A 440V triple pole.With 32mm conduit entry at each end.
Terminals accommodate 16mm²cable,M Rating 180. | 56 |
