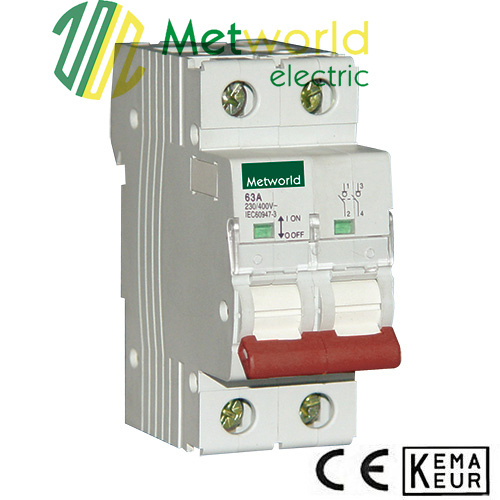

Weather Protected Isolating Switch Sti

Weather Protected Isolating Switch Sti
Price: US $ 1.1/Piece
Trade Terms: FOB,CIF
Min Order: 240/Piece
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: Weather Protected Isolating Switch STI
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

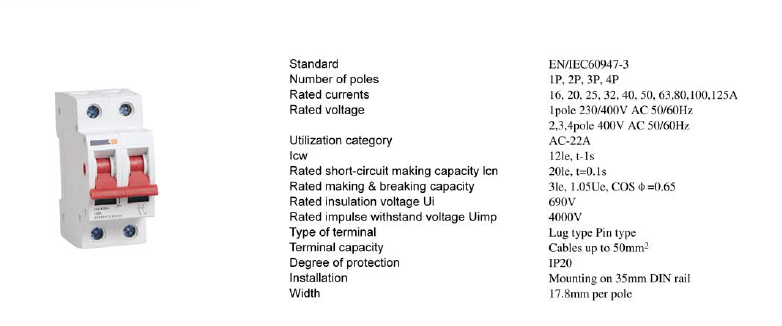

Product Standard: En/IEC60947-3
Producnt Unumber Of Poles: 1p 2p 3p 4p
Rated Currents: 16,20,25,32,40,50,63,80,100,125A
Rated Voltage: 1pole 230/400V AC 50/60Hz
Lcw: 12le,L=Ls
Type Of Terminal: Lug Type Pin Type
Degree Of Protection: IP 20
Width: 17.8 mm Per Pole
Product Installation: Mounting on 35mm DIN Rail
Rated Insulation Voltage Ui: 690V
Type: Low-voltage
Structure: Double-column Disconnector
Installation: Indoor High-voltage
Operation: Electric
Grounding: Single Ground
Series: Two
Run: Plug-In
Switching Mode: Single Throw-in
Certification: RoHS
Number Of Poles: Two
Brand: Metworld

Product Description

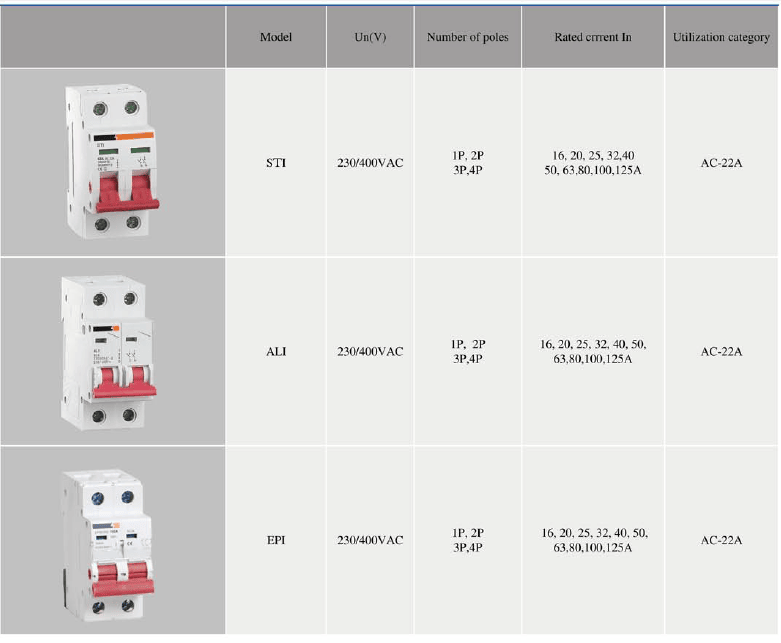

MODELUN(V)NUMBER OR POLESRATED CURRENT INUTILIZATION CATEGORY
ST1230/400VAC1,2,3,416,20,25,32,40,50,63,80,100,125AAC-22A
STI1 main switch is designed to accept cable-in/cable-out connections. It may be used as an isolating switch. The switch disconnected is capable of switching both resistive and inductive loads. The product conforms to IEC60947-3.About Wenzhou Seten International Trade Co., Ltd.Established in 1997, Wenzhou Seten International Trade Co., Ltd.Is a China-based professional supplier of casting machine to produce various casting spare parts with professional, dynamic and customer-oriented staff.Aimed on people, each individual makes a unique contribution to the business and you.The professionalism, skills and knowledge of our team throughout the business allow us to deliver you the product you need in higher quality at more reasonable price.
Range:MCB,MCB Automatic Production Line,RCCB,AC Contractor,Time Switch,Indicator,MCCB,MCB Hv Test,MCB Thermal Test,MCB Instantaneous Test
About Wenzhou Seten International Trade Co., Ltd.Established in 1997, Wenzhou Seten International Trade Co., Ltd.Is a China-based professional supplier of casting machine to produce various casting spare parts with professional, dynamic and customer-oriented staff.Aimed on people, each individual makes a unique contribution to the business and you.The professionalism, skills and knowledge of our team throughout the business allow us to deliver you the product you need in higher quality at more reasonable price.
