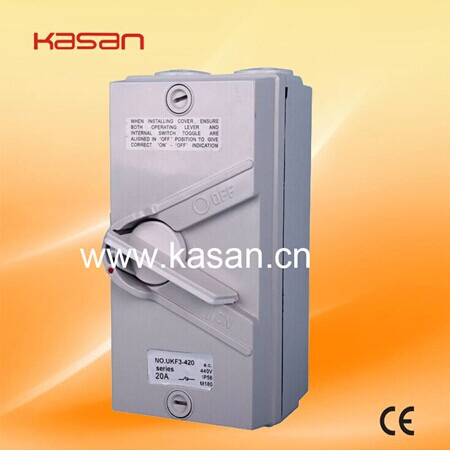

Weather Protected Isolating Switches Sukf

Prod Model:	WEA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type.:	Wea
Weather Protected Grade:	IP65
Certification:	CE

Product Description

IP, 2P, 3P Outdoor Weather Protected Isolating Switch

Brief Introduction

The waterproof isolating switches is suitable for outdoor switching use in different weather condition.
Include: Single, double and triple pole switches from 20 to 80 Amps, the base moulted mechanism.
Provides for easier termination and more wiring room, switch dimensions are 165mm-a82mm with an overall height of 85 mm.
Fixed earth and neutral connector bars with dual clamping screws per tunnel provide equal as tripping lengths and secure clamping for all cables, terminal bore size 5-a6.6mm.
A safety feature for mounting switches to metal structures is the insulating caps that cover base mounting screws to totally protect them from any live cables.
Each unit is supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw cap. Screw caps must be installed to ensure IP Rating. The impact Resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with a one piece weather seal gasket. For security, a 7mm diameter hole is provided for padlocking the lever in the OFF position. Deep moulsed barriers protect the operating lever from physical abuse or accidental switching. All units comply to IEC60947-3. Mines, and, Energy, south, Australia, Approvais. Standard colours are Grey& White...
