Weekly Programmable Electronic Digital Timer Switch

Name: Weekly Programmable Electronic Digital Timer Switch
Brand: all-electronics-online.com
SKU: 710476485
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 7.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TP8A16(DHC15), KG16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Capacity:	16A, 220V AC or 20A 220V AC
Rated Voltage:	AC 220V 50/60Hz 85%~110%
Fulling Timing Range:	24 Hours or 1 Week
Electrical Life:	at Least 10, 000, 000times
Operating Temperature:	-40~+50 Degree
Programmable:	9time/ Week or Day
Mouting Form:	Front Panel, DIN Rail Mounting
Dimmension:	81lx36wx66hmm
Theory:	Digital

Product Description

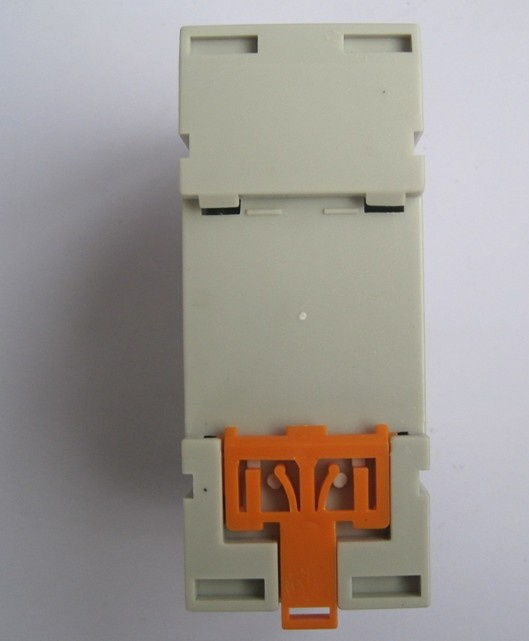

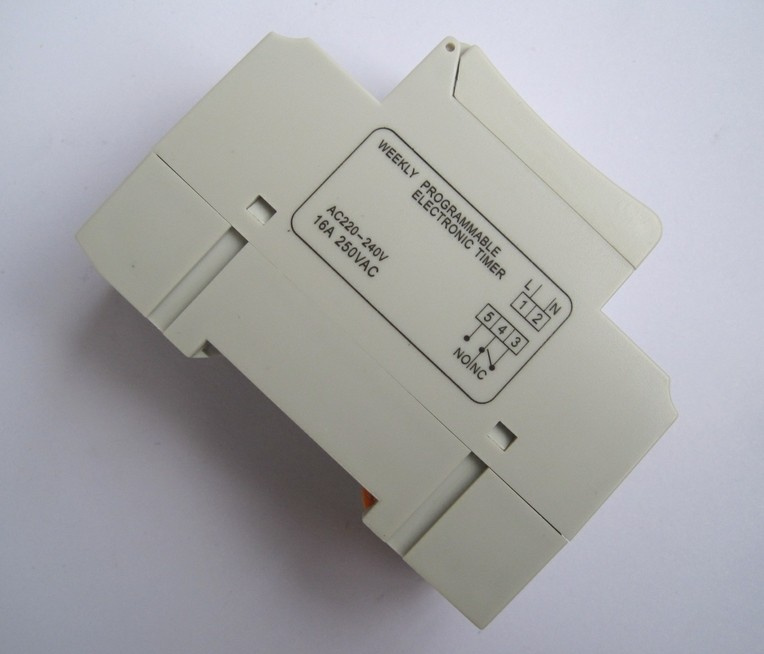

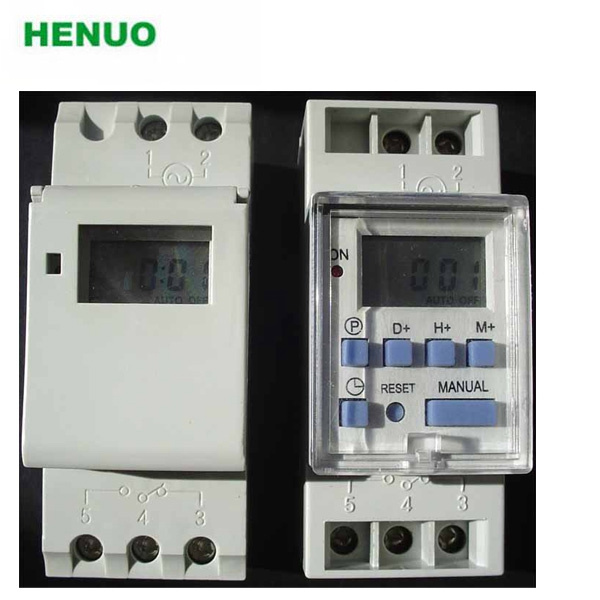

Weekly programmable electronic digital timer switch
Din rail,OEM
8 ON/OFF setting
LCD display
Hour/minute&ON/AUTO/OFF

Weekly programmable timer, daily programmable timer, 24 hours timer, 24 hours time switch, automatic time switch,digital timer

DHC15A Time switch, automatic switch, weekly digital timer, time switch, 24 hours time switch, weekly programmable timer, Programmable timer, day programmable timer, delay switch

Product features:

1)Type: DHC15A Daily and weekly programmable timer

2)Fulling timing range: 24 hours or 1 week

3)Contact capacity: 16A, 220V AC OR 20A 220V AC

4)Rated voltage: AC 220V 50/60HZ 85%~110%

5)Contact form: 1Z

6)Accuracy: ≤2S/day

7)Electrical life: ≥100,000times

8)Mechanical life:≥10,000,000times

9)Working reserve time: 15 days

10)Expectance display: LCD

11)Programmable: 9time/ week or day

12)Operating temperature: -40~+50°C

13)Mouting form: Front panel, DIN Rail mounting

14)Dimmension(mm):81Lx36Wx66H

Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.

From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:

1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.

2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.

3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.

4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on

5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on

Internationalization standard quality guarantee system:

The product quality of Tengen Group has been strictly controlled in each working procedure,

Many kinds of internationalization standard quality guaranteed system can be highly effective

Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently

Make sure of our product quality.

"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American

FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management

System authentication, CCC authentication, European Union CE safe Authentication, American UL

Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first

Side laboratory -- low voltage electric appliance test center which is the first connected with

International in China.

We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
