| Prod Model: |
HTW-21-H19 |
| Backlight: |
Green or White Optional |
| Output Current: |
3A or 10A or 16A Optional |
| Temperature Unit: |
Fahrenhait or Centigrade.(Optional) |
| Power Supply: |
100~250VAC 50/60Hz, 24VAC Optional |
| Output: |
on/off or Modulating or Floating Optional |
| Installation: |
86 or EU Standard Junction Box |
Product Description
General

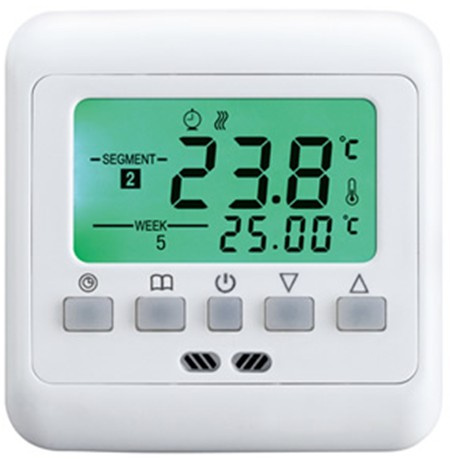

Weekly Programmable Heating Thermostat HTW-21-H19 series is for underfloor heating system can loop on every week every day. They are used to control room temperature in commercial,industrial and residential environment via controlling underfloor heating system thereof,and uses NTC to detect the room temperature and compares it with desired setpoint so as to maintain the correct temperature.
Product Features:
•Setting daily 4 periods of time and the setting temperature.
•The selection for manual control or automatic periods of time control.
•The application of electric heating of the electric heating equipment and Water heating system of electric heating re actuator control.
•Easy operation and utility.
•Touch screen input, Nice looking and easy-cleaning.
•Kinds of periods of time modes. 5+2/6+1/7
•The maximum switch power is 3600W.
•The wide voltage input: AC75-265V 50Hz/60Hz
•Mini size junction box. It is suitable for the entire world.
•The clock continues when power fail and it won't affect the period of time settings.
•Flame retardant and safe.
•Extra over heating sensor label length: 3 meters
Parameters•Power Supply: 85-250VAC(24± 10% Optional), 50/60 Hz
•Set point Range: 5 to 35°C (programmable)
•Display Range: 0 to 40.0°C
•Inside Sensor: NTC B=3380 10k @25degrees Celsius
•Extra Sensor: Length=3M NTC B=3380 10k @25degrees Celsius
•Setting Unit: 0.5°C / step
•Indication Accuracy: 0.1°C

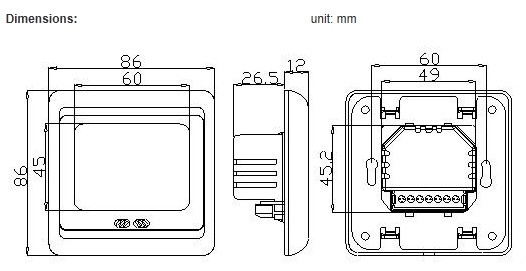

•Dimension: 86 x 86 x 12mm ( H x W x D )
•Weight: 175 g/piece
•Inner Box Size: 100 x 100 x 60 mm
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
HOTOWELL International Co., Limited is an innovative and modern medium-sized enterprise, the company is headquartered in Xiamen (China/Fujian). Hotowell was found to offer our customers mature top technology. Our creative potential and our manufacturing and development know how are the basis for innovative products. Since the company was founded, HOTOWELL International Co., Limited has continuously developed itself into a market leading enterprise in the HVAC Automation / Building Automation. Our products mainly applied for industrial, commercial and residential temperature control.
Our product range contains:
Thermostats, Motorized Zone Valves, Water Flow Switches, Proportional Valves, Balancing Valves, Differential Pressure Transmitters, PIR Motion Sensors, Fan Controllers, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc.
HOTOWELL products are designed and used as field control products to be integrated with HVAC control systems such as:
BAS = Building Automation System
BMS = Building Management System
BEMS = Building Energy Management System
BAMS = Building Automation Management Systems
HVAC controls = Heating, Ventilation and Air Conditioning controls
Our objective is to develop, produce and design user-friendly products on the highest technical level. We place great value on always meeting the requirements of the latest technical standard. In this process we take the utmost care in complying with quality and safety standards and thus ensure a long service life for our products. Products that satisfy rigorous quality requirements can only be manufactured through modern manufacturing methods. Satisfaction of all safety and environmental guidelines is a matter of course for us.
Our Products save money and protect the environment!
*********************************************************************************************************
For more information, or to purchase Hotowell products, please feel free to contact us as below:
Hotowell International Co., Limited
www.hotowell.com
Contact: Mr. Phenix Law
Title: Product & Marketing Manager
*********************************************************************************************************
