| Prod Model: |
S705 |
| Relay: |
Omron |
| Blacklight: |
Blue |
| Program: |
5/1/1 Programmable |
| Voltage: |
24V AC |
| Dimensions: |
120 X26 X 106 mm (Without Holder) |
| Application: |
Single Stage (Heat/Cool) |

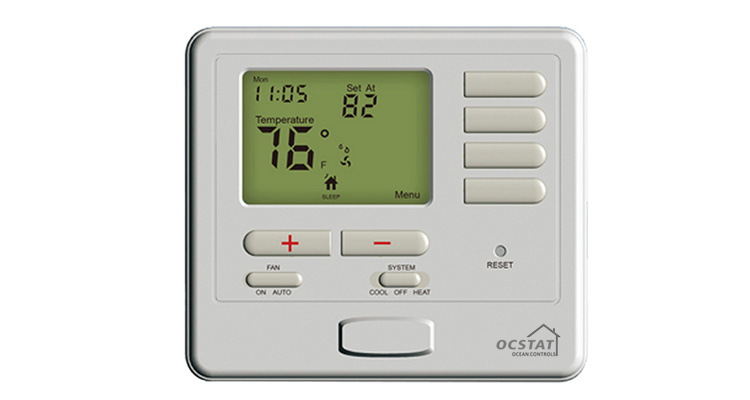

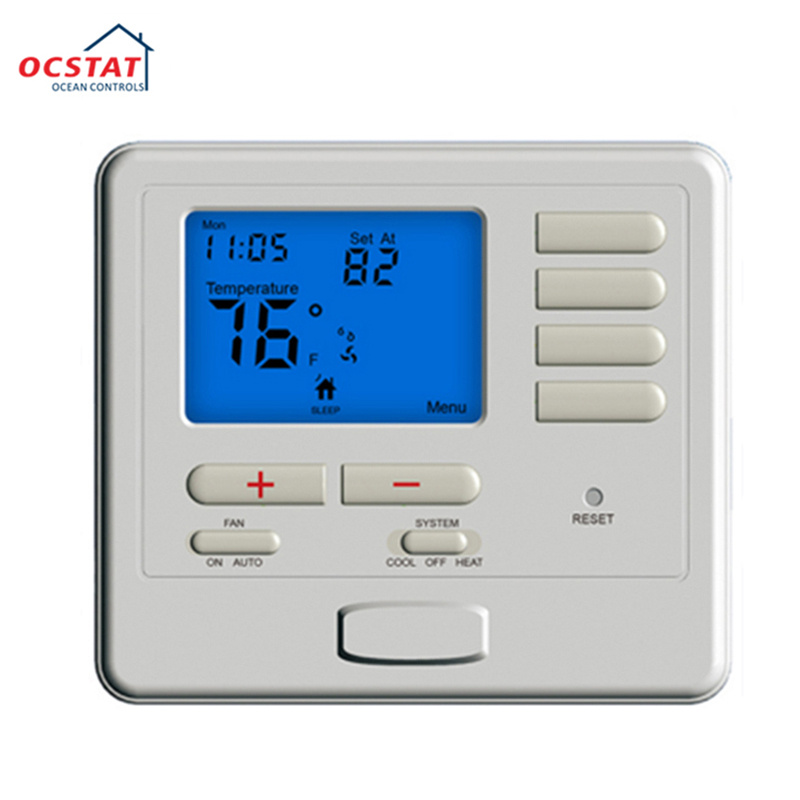

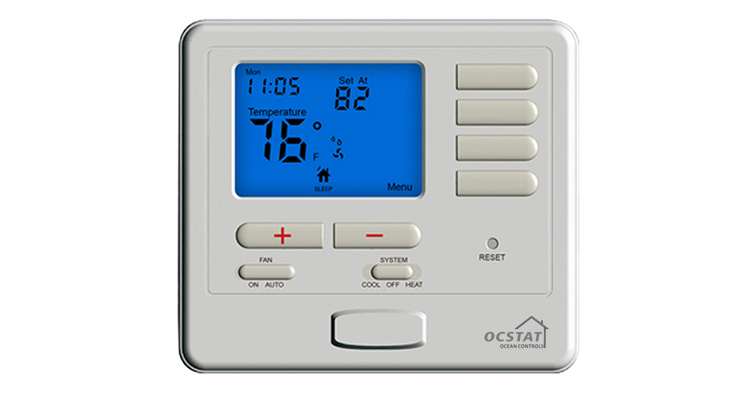

Product Description
Product Description:Features:4 sq. Inch display
Blue backlight
Glow in the dark light button
Easy access battery compartment
Electric or Gas configurable
Wall mount or junction box
Separate B&O terminals
Room temperature calibration adjustment
Separate heating and cooling swing (cycle Rate) adjustments
Intuitive wake,leave,return,sleep programming icons
5 minute compressor delay protection (selectable on or off)
Universal sub-base
Simple private label badge system
Easy wire color coded terminal blocks
Battery or 24V powerSpec:Model No.: S705
Application: Single Stage (Heat/Cool)
Stages: 1 Heat/1 Cool
Programmability: 7 Day Programmable
User Interface: Push Button
Mount: Horizontal
Temperature Range (° F): 41° F - 95° F
Control Temp. Range (° F): 44° F - 90° F
Operating Humidity: 90% non-condensing
Power Method: Battery or 24V
Company Information:
Our Services
Why Us?
1.High Quality Thermosat
2.Environment-Friendly
3.Unique First-Class Design, High Quality, Competitive Price
4.Unique Design
5.Shapes , size and color can be customized by client Customer's design are welcomed
6.Timely delivery
7.Factory Directly
8.More Than 10 Years Industry Experience, Skillful In Workman
9.Integrity of Attitude, Attentive Services
10.Patented structure design
Delivery & Payment:

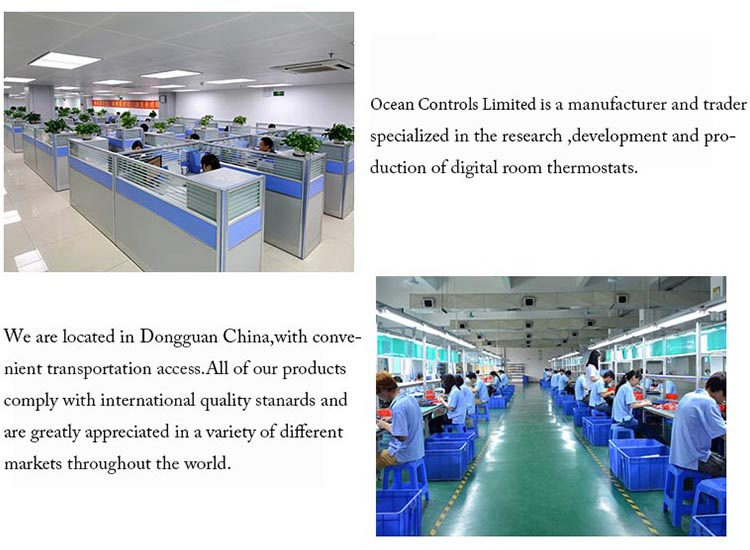

Ocean Controls Limited was founded by an industrial engineer with 10 years experience in the design and manufacturer of top-end electronic room thermostats.
We provide OEM/ODM services to worldwide customers, including manufacturing, design, engineering and tooling.
With many years of experience, our products feature unrivalled quality, reliability and durability. We export our products all over the world, especially to European and American markets. Currently our main products includ: Non-programmable/programmable thermostats, dial/push button/touchscreen thermostats, wired and wireless thermostats, we can also make timer, immersion/capillary thermostat and other related heating system control parts as per the customer's request. The products meet CE, R&TTE, FCC, UL and CSA approved quality standards.
Our factory has three sets of SMT, 10 sets of injection molding machine and advanced moulding equipments, Monthly capacity is more than 50, 000 PCS, and this can be expanded according to customer requirement.
We have a strong R&D team with more than 10 years experience in the thermostat field, They are seasoned in the design, develop and testing of electronic thermostats, HVAC controller and accessories. In addition, we have broad experience in RF remote control products like remote wireless thermostats. Based on the above, we can design/develop new models for you upon your technical specifications or samples.
As a company, we strive to excel in the quality of products we sell, the service we provide and the support we give. We are committed to continuous improvement and on building win-win relationships with our partners.
