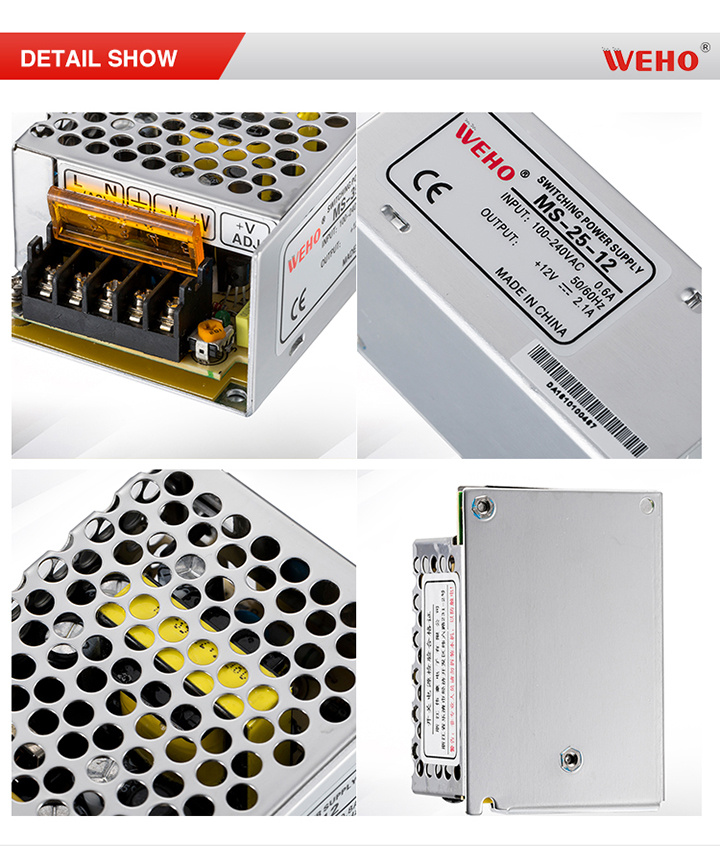

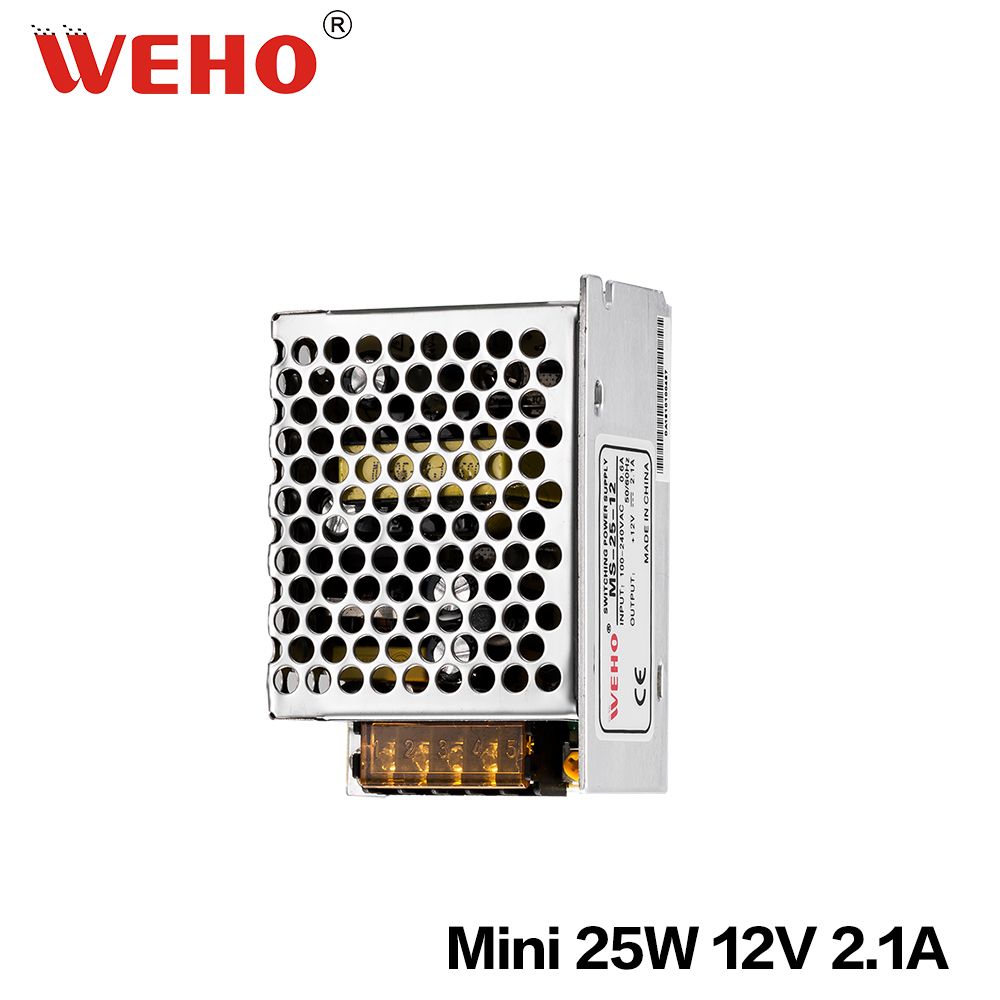

Weho 25W12V Switching Power Supply for LED LCD Ms-25 SMPS

Name: Weho 25W12V Switching Power Supply for LED LCD Ms-25 SMPS
Brand: all-electronics-online.com
SKU: 832275095
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	US $ 3-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-25-12
Type:	Constant Voltage
Material:	Aluminum Case
Weight:	0.15kg
MOQ:	1-5PCS Sample Order
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Test:	100% Full Load Burn-in Test
Voltage:	12V
Current:	2A
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	Weho

Product Description

WEHO 25w12v switching power supply for led lcd ms-25 smps

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Model		MS-25-12	MS-25-15	MS-25-24	-----
output	DC voltage	12V	15V	24V	-----
	Voltage tolerance	±1%	±1%	±1%	-----
	Rated current	2.1A	1.7A	1.1A	-----
	Current range	0~1.3A	0~1.7A	0~1.1A	-----
	Rated power	25.2W	25.5W	26.4W	-----
	Ripple&noise	100mvp-p	120mvp-p	150mvp-p	-----
	DCvoltage ADJ.range	±10%	±10%	±10%	-----
input	Voltage range	100~240VAC,150~373VDC
	frequency	47~63HZ
	AC current	0.35A/230VAC
	efficiency	78%	78%	80%	-----
	Inrush current	Cold start current 30A/230VAC
	Leakage current	< 1mA/240VAC
protection	overload	Rated output power110%~135% start over load protection
		protection type :part layer type current limit ,auto-recovery after fault condition is removed
	-----	-----
		-----
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	Comply with EN55022,CLASSA
others	Dimension	855937mm (LWH)
	Weight/packing	0.15kg/80pcs/13kg

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.
