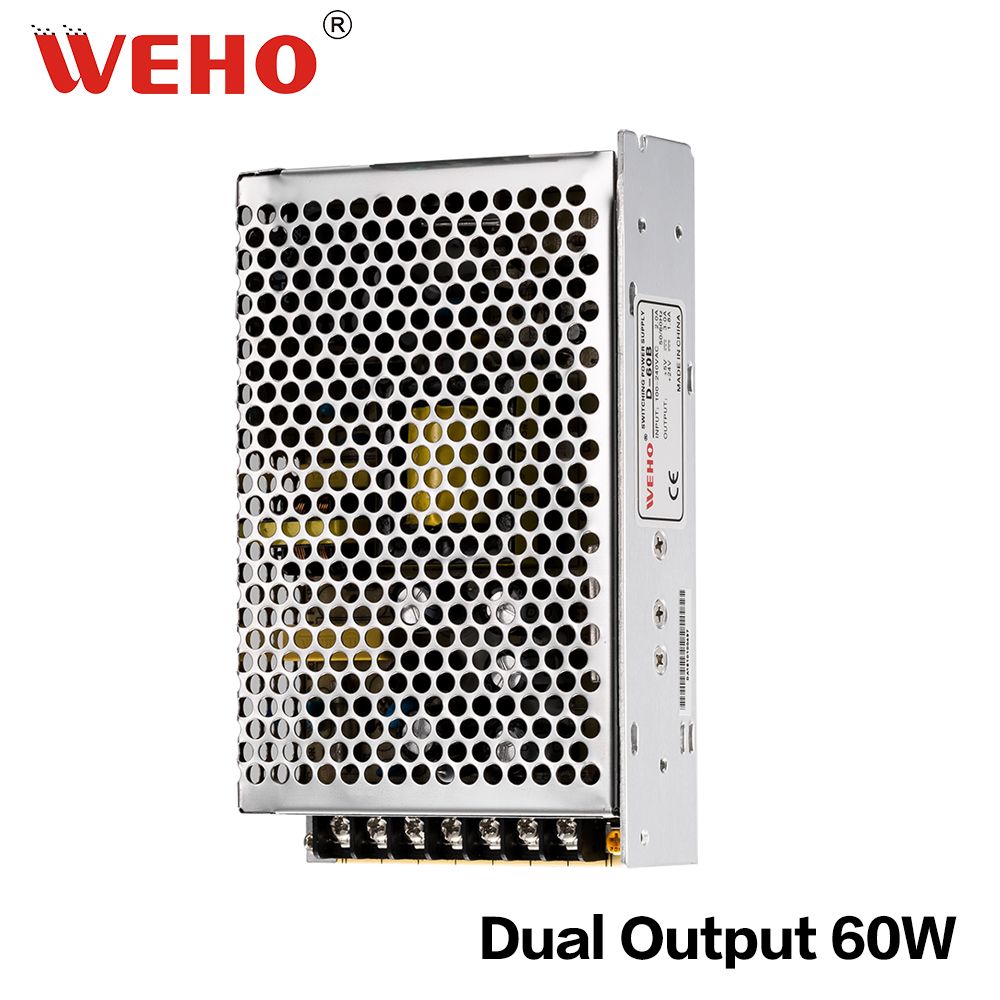

Weho D-60W Dual Output AC/DC Switching Power Supply

Name: Weho D-60W Dual Output AC/DC Switching Power Supply
Brand: all-electronics-online.com
SKU: 690884041
Availability: InStock
Rating: 4.7 (108 reviews)

Price:	US $ 6.99-10.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	D-60
IP Code:	IP20
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Output Type:	Dual
Warranty:	2 Years
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

WEHO D-60w dual output ac/dc switching power supply

Model	D-60A		D-60B
	CH1	CH2	CH1	CH2
DC output voltage	5V	12V	5V	24V
Output voltage range(Note:2)	±2%	±6%	±2%	±5%
Rated output current	4A	3A	3A	1.8A
Output current range	0.3-6A	0.2-4A	0.3-6A	0.2-2.2A
Wave and noise(Note:3)	75mVp-p	150mVp-p	75mVp-p	150mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±0.5%	±1%
Load stability(Note:5)	±0.5%	±4%	±0.5%	±4%
DC output power	56W		58W
Efficiency	73%		73%
Adjustable range for DC voltage	CH1; +10, -5%		CH1; +10, -5%
AC input voltage range	85~264VAC ,47~63Hz;120~370VDC
Input current	2A/115V 1A/230V
AC inrush current	Cold-start current 30A//115V,60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	CH1: 5.75~6.75V
Temperature coefficient	±0.03%/°c(0~50°c)ON+5V
Setup, rise , hold up time	200ms,50ms, 20ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	159×97×38mm
Weight	0.55Kgs
Safety standards	UL 1950 TUV EN60590
EMC standards	CISPR22(EN55022)class B, IEC801-2,3,4 IEC555-2 Verification
