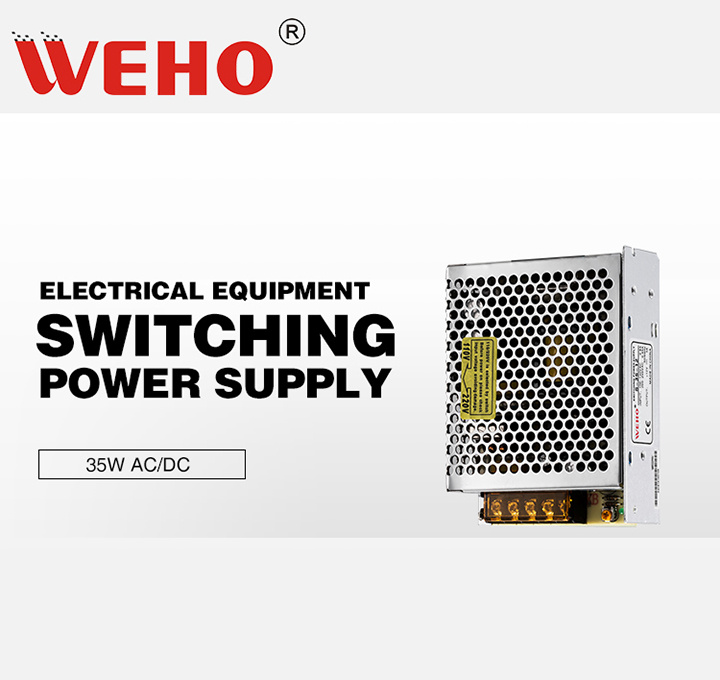

WEHO Single Output 35W 12V Switching Power Supply

Name: WEHO Single Output 35W 12V Switching Power Supply
Brand: all-electronics-online.com
SKU: 832037065
Availability: InStock
Rating: 4.5 (124 reviews)

Price:	US $ 4.8-6.9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-35-12
Output Current:	3A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	0.41kg
MOQ:	1-5PCS
Certificate:	Ce RoHS
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

35W 12V DC Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

MODEL		S-35-5	S-35-9	S-35-12	S-35-15	S-35-24
OUTPUT	DC VOLTAGE	5V	9V	12V	15V	24V
	VOLTAGE TOLERANCE	±2%	±1%	±1%	±1%	±1%
	RATED CURRENT	7A	3.6A	3A	2.4A	1.5A
	CURRENTRANGE	0-7A	0-3.6A	0-3A	0-2.4A	0-1.5A
	RATED POWER	35W	32.4W	36W	36W	36W
	RIPPLE &NOISE(MAX)	75mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	DC VOLTAGEFRE QUENCY RANGE	+10,-5%	±10%	±10%	±10%	±10%
	SETUP,RISE,HOLD TIME	200ms,100ms,300ms
INPUT	VOLTAGERANGE	85~132 VAC/170~264VACselected47~63 Hz 240~370VDC
	AC CURRENT	0.8 A/115 V 0.45A/ 230 V
	EFFICIENCY	70%	72%	76%	78%	78%
	INRUSH CURRENT	Cold start 18A/115V 36A/230V
	LEAKAGE CURRENT	<2mA/240VAC
PROTECTION	OVERLOAD PROTECTION	110%~160% cutoff output. Fold back current limiting, recovers automatically
	OVER-VOLTAGE PROTECTION	..
	HIGH TEMPERATURE PROTECTON	..
ENVIRONMENT	WORKING TEMP.& HUMIDITY	-10~+60 20%~90 %RH
	STORAGE TEMP.& HUMIDITY	-20~+85 10%~95 %RH
	VIBRATION	10~500Hz,2G 10min./1 cycle,period for 60min,each alongX,Y,Z axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC
SAFETY	ISOLATION RESISTANGE	I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
STANDARDS	SAFETY STANDARDS	Design refer to UL1012
STANDARDS	EMC STANDARDS	Design refer to FCC part15 J Conduction Class B
OTHERS	WEIGHT	0.41Kg
OTHERS	PACKING	30pcs/13.5Kg/0.86CUFT
NOTE	1. Tolerance: Includes set up tolerance, line regulation and load regulation. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μf & 47μf parallel capacitor.
