| Prod Model: |
MDR-60-24 |
| Type: |
Constant Voltage |
| Material: |
Plastic Case |
| Weight: |
0.33kg |
| MOQ: |
1-5PCS Sample Order |
| Shipping: |
Sea Air DHL FedEx EMS UPS TNT |
| Test: |
100% Full Load Burn-in Test |
| Voltage: |
24V |
| Current: |
2.5A |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Weho |
Product Description

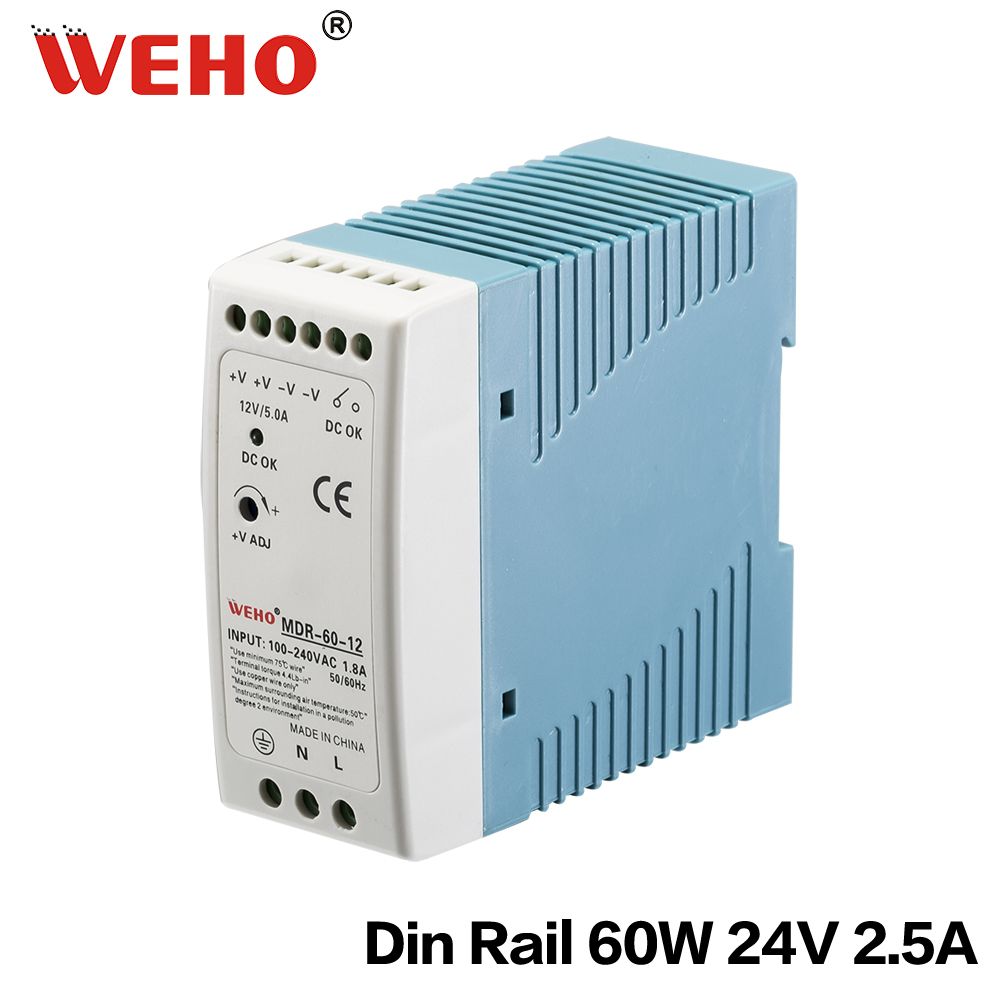

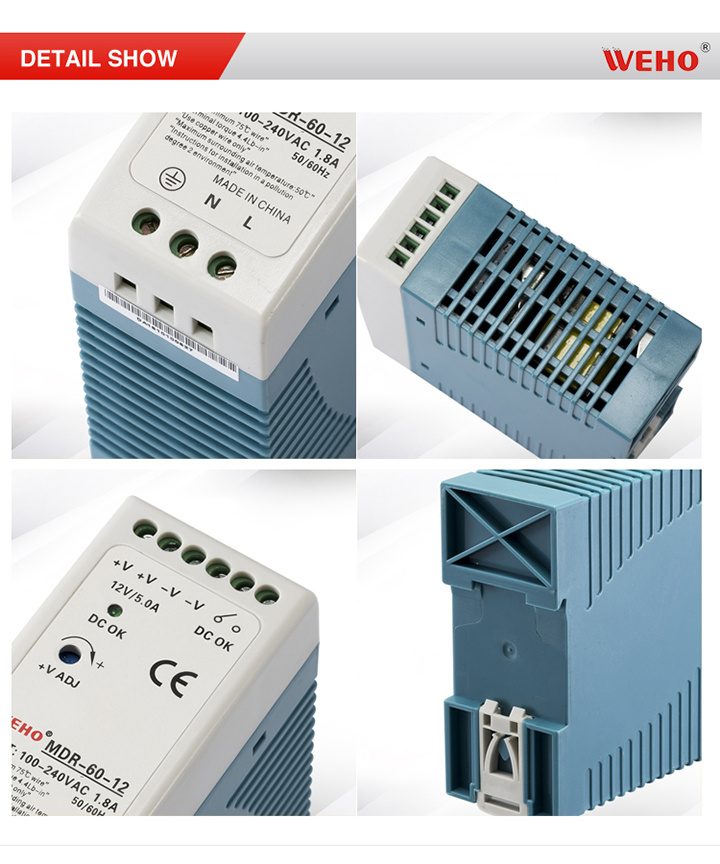

WEHO single output switch power supply 60w 24v ac dc led transformerFeatures:
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
| MODEL | MDR-60-5 | MDR-60-12 | MDR-60-24 | MDR-60-48 |
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V | 48V |
| RATED CURRENT | 10A | 5A | 2.5A | 1.25A |
| CURRENT RANGE | 0 ~ 10A | 0 ~5A | 0 -2.5A | 0-1.25A |
| RATED POWER | 50W | 60W | 60W | 60W |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p |
| VOLTAGE ADJ. RANGE | 5 -6V | 12-15V | 24 - 30V | 48 ~ 56V |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| LOAD REGULATION | ±1.5% | ±1.0% | ±1.0% | ±1.0% |
| SETUP, RISE TIME Note.5 | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load |
| HOLD UP TIME (Typ.) | 50ms/230VAC 20ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 85 - 264VAC 120-370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY (Typ.) | 78% | 86% | 88% | 87% |
| AC CURRENT (Typ.) | 1.8A/115VAC 1A/230VAC |
| INRUSH CURRENT (Typ.) | COLD START 30A/115VAC,60A/230VAC |
| LEAKAGE CURRENT | <1mA/240VAC |
| PROTECTION | OVERLOAD | 105 - 150% rated output power |
| Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| OVERVOLTAGE | 6.25-7.25V | 15.6 - 18V | 31.2-36V | 57.6 - 64.8V |
| Protection type: Shut down o/p voltage, re-power on to recover |
| FUNCTION | DC OK SIGNAL | Relay contact rating (max.): 30V/1A resistive |
| ENVIRONMENT | WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH |
| TEMP. COEFFICIENT | ±0.03%/°C (0 - 50°C) |
| VIBRATION | Component: 10 - 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
| SAFETY &EMC | SAFETY STANDARDS | UL508, UL60950-1, TUV EN60950-1 approved |
| WITHSTAND VOLTAGE | l/P-0/P:3KVAC l/P-FG:2KVAC 0/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | l/P-O/P, l/P-FG, 0/P-FG:>100M Ohms/500VDC/25°C/70% RH |
| EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 |
| EMC IMMUNITY | Compliance to EN6100(M-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A |
| OTHERS | MTBF | 299.2K hrs min. MIL-HDBK-217F (25°C) |
| DIMENSION | 40*90*100mm (W*H*D) |
| PACKING | 0.33Kg; 60pcs/20Kg/0.82CUFT |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. |
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. |
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
| 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies. |
| 5. 5.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. |
With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

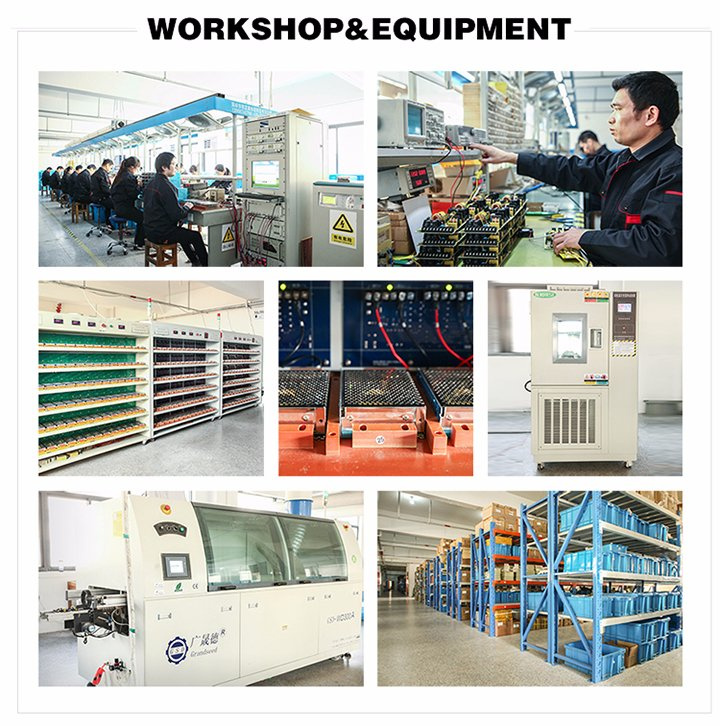

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.
Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.
We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.
The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.
Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
