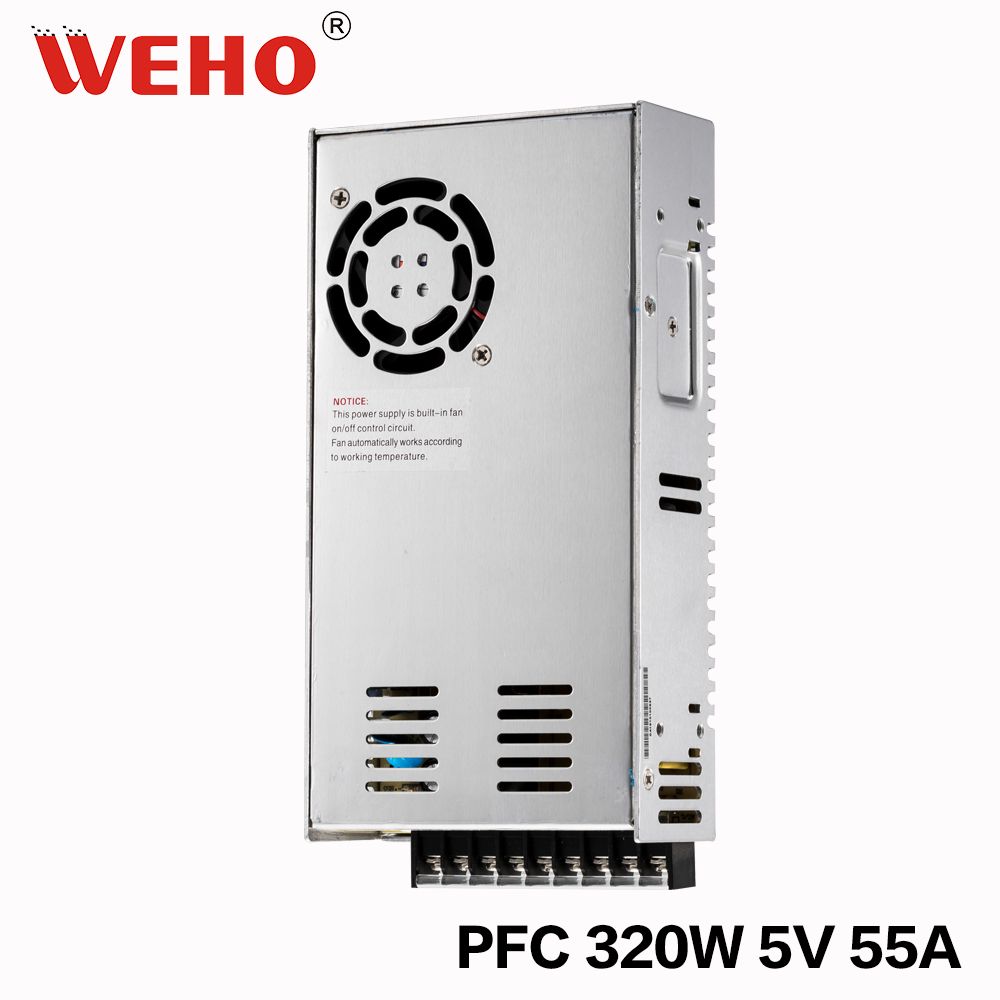

Weho Sp-320W 5V Switching Power Supply with Pfc

Name: Weho Sp-320W 5V Switching Power Supply with Pfc
Brand: all-electronics-online.com
SKU: 832288965
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 27-34/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SP-320-5
Output Current:	55A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	1.5kg
MOQ:	1-5PCS
Output Type:	Single
Warranty:	2 Years
Output Power:	301 - 400W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

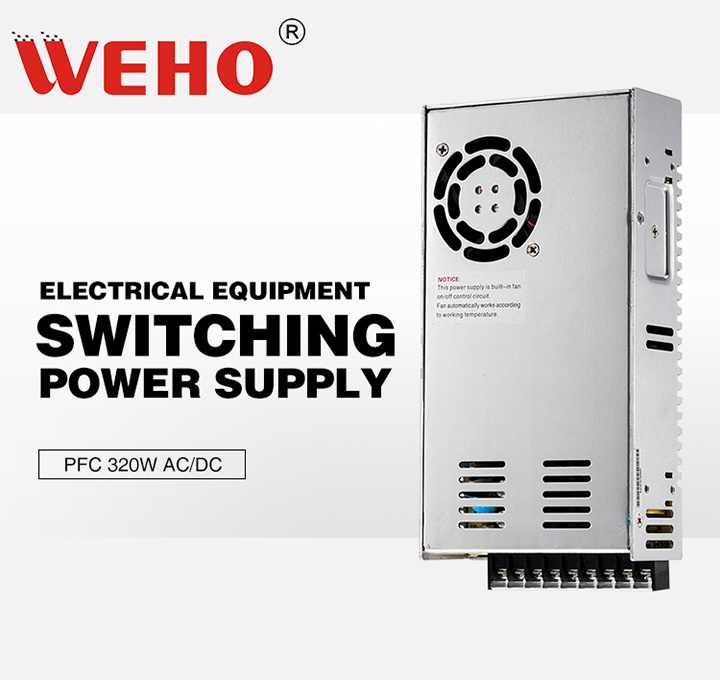

320W 5V Power Supply with PFC Function

Features:

1. PF>0.96@115VAC: PF>0.93@230VAC

2. AC input 85~264VAC 120~370VDC

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

Model	SP-320-5	SP-320-12	SP-320-24	SP-320-48
DC Voltage	5V	12V	24V	48V
Voltage Tolerance	±2%	±1%	±1%	±1%
Rated Current	55A	25A	13A	6.7A
Current Range	0-55A	0-25A	0-13A	0-6.7A
Rated Power	275W	300W	312W	321.6W
Ripple & Noise	150mVp-p	150mVp-p	150mVp-p	240mVp-p
DC Adjustment Range	±10%	-16%,±10%	-16%,±10%	-15%,±17%
Voltage Range	88~264VAC selected by 47~63 Hz;120~370VDC
Power Factor	PF>0.95/230VAC,PF>0.98/115VAC at full load
AC Current	5A/115 VAC2.5A/230VAC
Efficiency	79%	86%	87%	89%
Inrush Current	22A/115VAC40A/230VAC
Over Load	105%~135%
Over Voltage	115%~135%
Working Temp., Humidity	-20°C~+65°C;20%~90 %RH
Storage Temp., Humidity	-40°C~+85°C;10%~95 %RH
Vibration	10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage	I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
Safety Standard	Design refer to UL60950,TUV EN60950
EMC Standard	Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024
Dimension	21511550mm
Weigt	1.5kg
Packing	402622cm/8pcs/14.5kg

Our Workshop:

Packaging:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
