Weighing Beam Scale Load Cell 100klb Tundish Scales Weight Sensor

Name: Weighing Beam Scale Load Cell 100klb Tundish Scales Weight Sensor
Brand: all-electronics-online.com
SKU: 773549655
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	US $ 88/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-45A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Temperature:	up to 102 Centigrade
IP Gradel:	67
Overload:	300%Fs
Power Supply:	10V Max 15V
Product Name:	Weighing Beam 100klb Tundish Scales Weight Sensor

Product Description

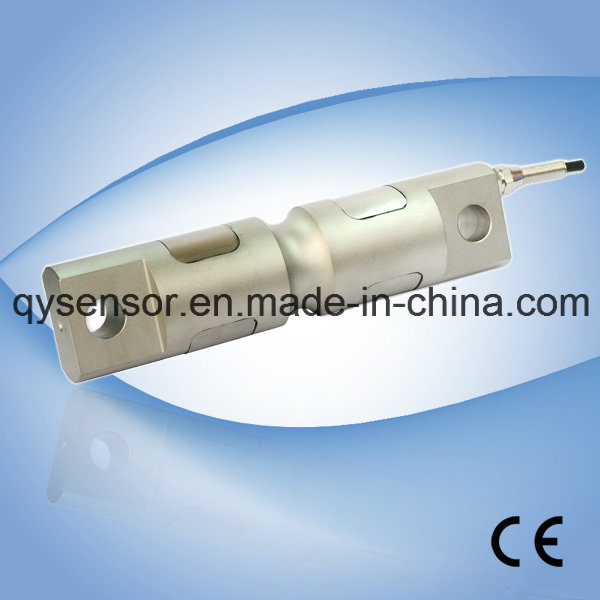

QH-45A Weighing Beam 100klb Tundish Scales Weight Sensors are available in the capacities from 5klb to 100klb
Alloy steel or stainless steel construction with double shear beam type.
Silicon adhesive sealed inside, anti-corrosion, suitable for multiform environments.
Suitable for truck scales, railway scales, steam lines and other electronic weighing devices.
Features:

Capacity: 5klb to 100klb
Defend grade: IP66
High accuracy, reliable performance,
Integral structure and easy installation

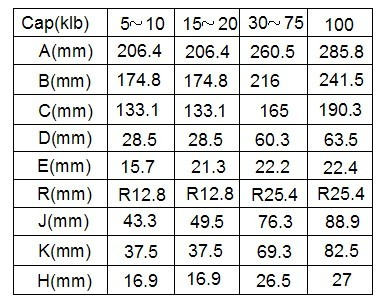

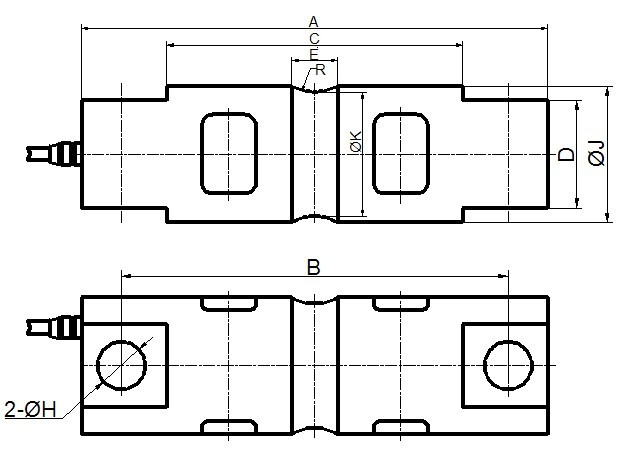

Electrical connection and Dimensions:

Technical Specifications

Specifications:
capacity	kn	5,10,15,20,30,60,75,100
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	3.0 ± 0.03
excitation voltage	Vdc	10 ~ 15
combined error	%FS	± 0.03
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.03
creep	%FS/30min	± 0.03
input resistance	Ω	700 ± 10
output resistance	Ω	700 ± 5
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	ºC	-20 ~ +55
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.03
temperature coefficient of ZERO	%FS/10ºC	± 0.03

Packaging & Shipping

Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
According to the clients requirement

Our Services

We are committed to providing a high quality, and responsive services to all clients
Detailed information, specific and price of products will be provided quickly after receiving your inquiry.
Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
Packaging: well box packed and provide optimal freight for you reference.
All products OEM available

Company Information
Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60

Contact details:
Chloe Shu
HanZhong QuanYuan Electronic Co.,Ltd.
TEL: +86-916-2257989

https://cn.linkedin.com/in/qysensor
http://www.qysensor.com

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
