Hangzhou Gongheng Weighing Equipment Co., Ltd. >> Weighing Load Cell

Weighing Load Cell

Weighing Load Cell
Price: US $ 10-20/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: L6E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CE: OIML
Material: Aluminum

Product Description

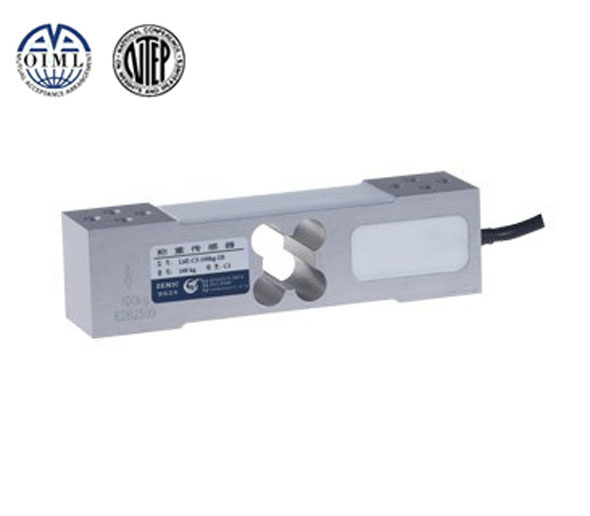

Name: Load cell
Modl: L6E
L6E load cells are available in the capacities 50kg to 300kg.
Alumium constructionm with parallel beam.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Intergral structure and easy installation.
Suitable for pricing scales, platform scales and other electronic weighing devices.
Capacit:50kg to 300kg .
High accuracy.
Max. platform size: 400x400mm.
With OIML approval.

Specifications

Capacity

kg

50/100/150/200/250/300

Accuracy



C3D

C3

C3G

Approvals





OIML R60 C3




Maximum number of
verification intervals

n max

2500

3000

4000

Minimum load cell verification interval

v min

Emax/5000

Emax/7000

Emax/11000

Combined error

(%FS)

≤±0.030

≤±0.020

≤±0.015

Creep

(%FS/30min)

≤±0.020

≤±0.0167

≤±0.0125

Temperature effect on sensitivity

(%FS/10ºC)

≤±0.021

≤±0.0175

≤±0.0131



Temperature effect on zero

(%FS/10ºC)

≤±0.028

≤±0.020

≤±0.0127

Output sensitivity

(mv/v)

2.0±0.2

Input resistance

(Ω)

406±6

Output resistance

(Ω)

350±3

Insulation resistance

(MΩ)

≥5000(50VDC)

Zero balance

(%FS)

2

Temperature,compensated

(ºC)

-10~+40

Temperature,operating

(ºC)

-35~+65

Excitation, Recommended

(V)

5~12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300

Corner correction



0.02% load value/100mm
