Weight Sensor for Truck Scales System/Column Sensor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
QH-71B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pi Grade: |
IP68 |
| Overload: |
300%Fs |
| Seal Way: |
Welding Seal |
| Loading Way: |
Compression |
| Product Name: |
Weight Sensor for Truck Scales System |
| Material: |
Steel Alloy |
Product Description
Weight Sensor for Truck Scales System/Column SensorQH-71B load cells are available in the capacities from 10t to 50t. Alloy steel or stainless steel construction with Column type,auto-adjusted. Fully seal welding ,silicon adhesive sealed inside,waterproof, grease proofing,anti-corrosion and suitable for all kinds of environment. Column type structure design.Tension and/or compression loading and easy installation.Suitable for truck scale, railway scale and other electronic weighing devices. Features:
Capacity :10 t to 50t.
IP grade: IP67 & IP68
High accuracy. reliable performance

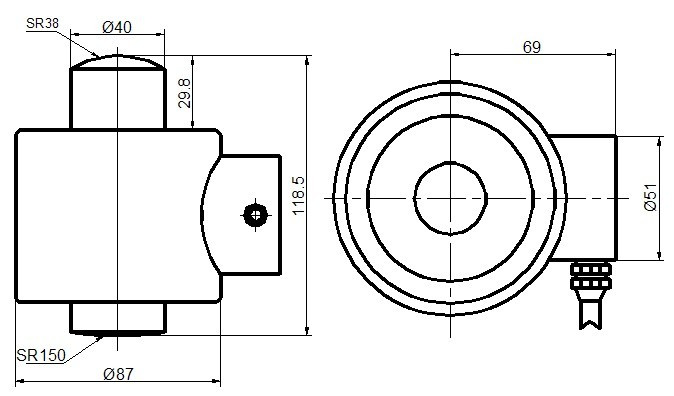

Column type structure design , auto-adjusted, easy installationElectrical connection and Dimensions:
| Specifications: |
| Capacity | t | 10,20,25,30,40,50 |
| Safe overload | %FS | 150 |
| Ultimate overload | %FS | 300 |
| Rated output | mV/V | 1.5 ± 0.002 |
| Excitation voltage | Vdc | 9 ~ 12 |
| Combined error | %FS | ± 0.05 |
| Zero unbalance | %FS | ± 1 |
| Non-linearity | %FS | ± 0.05 |
| Hysteresis | %FS | ± 0.05 |
| Repeatability | %FS | ± 0.03 |
| Creep | %FS/30min | ± 0.03 |
| Input resistance | Ω | 700 ± 10 |
| Output resistance | Ω | 700 ± 5 |
| Insulation resistance | M Ω | ≥ 5000 @ 100 Vdc |
| Operating temperature range | ºC | -35 ~ +65 |
| Compensated temperature range | ºC | -10 ~ +40 |
| Temperature coefficient of SPAN | %FS/10ºC | ± 0.02 |
| Temperature coefficient of ZERO | %FS/10ºC | ± 0.03 |
Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter :¢5mm
Cable length:10 m
The cable length could be chose by customer's application.Packaging & Shipping- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services- We are committed to providing a high quality, and responsive services to all clients
- Detailed information, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packaging: well box packed and provide optimal freight for you reference.
- All products OEM available
