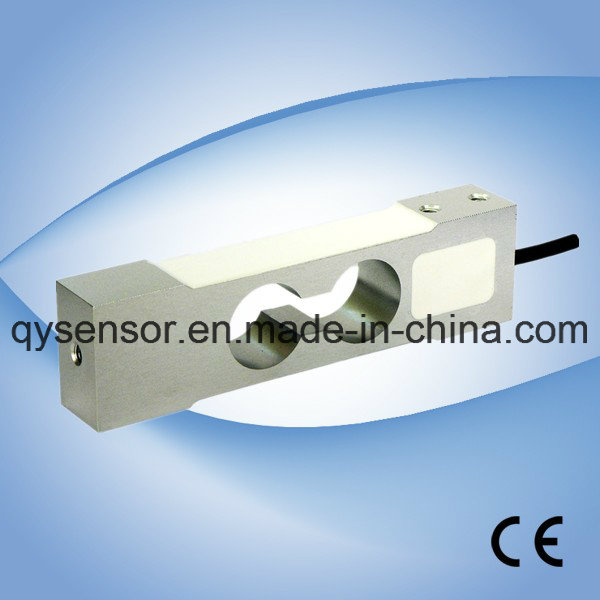

Weight Sensor; Load Cell (Model QL-12H)

Name: Weight Sensor; Load Cell (Model QL-12H)
Brand: all-electronics-online.com
SKU: 773300105
Availability: InStock
Rating: 5 (44 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-12H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Loading Capacity:	300kg
Max. Platform Size:	200*200
Accuracy:	C3
Product Name:	Weight Sensor; Load Cell

Product Description

QL-12H Weight Sensor; Load Cells are available in the capacities from 5kg to 300kg.
Alloy aluminum construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic counting scales, platform scales, electronic balance and other electronic weighing devices.

Features:
Capacity :5kg to 300kg
Defend grade:IP65
High accuracy.
Alloy aluminum parallel beam
Max. platform size:200x200mm
Integral structure,reliable performance,and easy installation

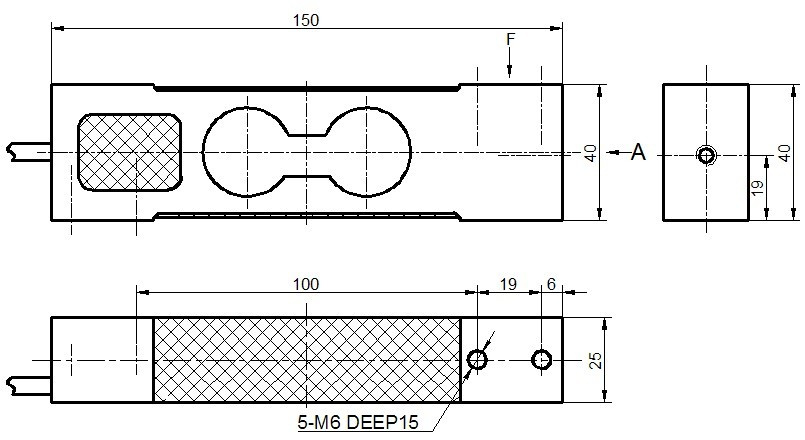

Electrical connection and Dimensions:
Technical Specifications

Specifications:
capacity	kg	5,10,15,20 ,50,100,120,200,300
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	5 ~ 15
combined error	%FS	± 0.02
zero unbalance	%FS	± 2
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0.02
input resistance	Ω	406 ± 10
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	ºC	-20 ~ +60
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.02
temperature coefficient of ZERO	%FS/10ºC	± 0.03
