| Prod Model: |
BBG-WM-001 |
| Max Welding Nickel Tape: |
3mm |
| Max Power: |
12kw |
| Size: |
455*263*358 Mm |
Product Description

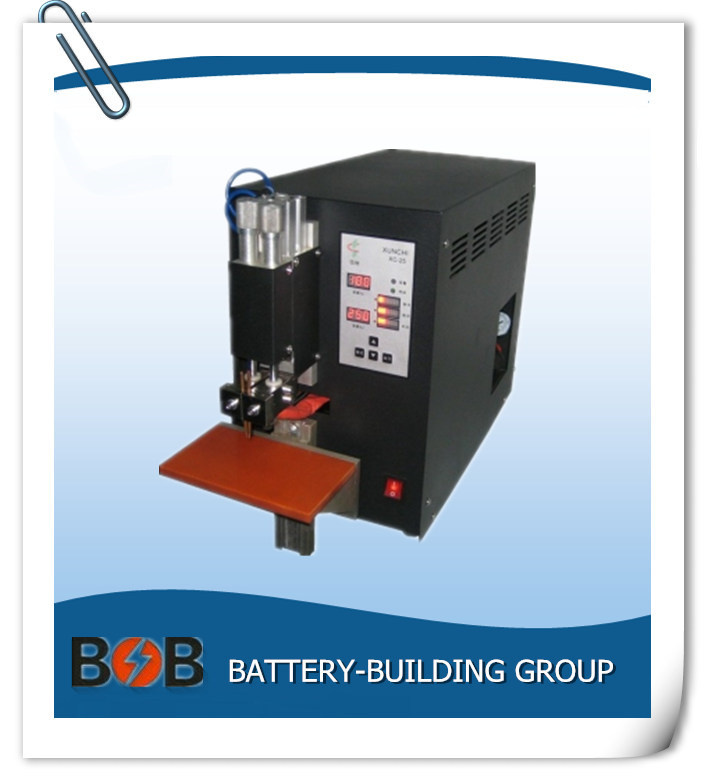

XC-25 Micro multi-pulse spot welder Pneumatic Spot Welding Machine
Item specifics
Place of Origin:Guangdong China (Mainland)
Brand Name:XC
Max. Welding Thickness:3mm * 70mm
Rated Capacity:12KW
Usage:Battery materials, built-in negative spot (nickel-metal hydride and ni
Dimensions:455*263*358 mm
Weight:70KG
Model Number:XC-25
Electrode in front of distance:78 ~ 110mm adjustable
Electrode Size:3mm*100 mm
Product Description
1. Features
XC-25 with precise digital control, 10 programs can be stored, and can be changed, call; use of double pulse ensures a solid solder, solder joint appearance; 7-segment LED display of the welding parameters. XC-25 electrodes using polar coordinates regulation, easy to align the upper and lower electrodes and adjust the welding within a certain range of space, so that the operator can easily weld a variety of shapes and sizes of batteries. XC-25 can be adapted to long stroke welding (up to 85mm, this time on the welding arm adapter head-on), enabling the negative battery built-in welding and other forms of long-stroke welding. In addition, XC-25 is also on the power grid voltage automatic monitoring, tracking compensation. XC-25 power, simple operation, welding and reliable
2. For welding
Battery materials, built-in negative spot (nickel-metal hydride and nickel cadmium batteries,Lithium Batteries), hardware, household appliances, gold and silver, jewelry and so on.
3. Electrical parameters Input voltage 220V/50Hz (60Hz) Input Current 30A Enter the gas source of compressed air pressure 7 ~ 8Bar Output voltage 5.5V Output Power 12KVA Instantaneous output current 1800A Discharge longest 20ms / cycle
4. The overall structure XC-25 overall shape is as follows:
(1). Body
(2). Control Panel
(3). Electrode assembly
(4). The power switch
(5). Regulator
(6). Manometer XC-25 related to size:
(7). Overall dimensions (length X width X height): 455 X 263 X 358 mm
(8). Electrode to the welding machine in front of distance:78~110mm adjustable
(9). Electrode Size: 8D X 85 mm
(10).'s Largest space (top to bottom): 98mm
5. Maximum stroke: 85mm XC-25 package parameters: 1. Net weight: 42Kg 2. Gross Weight: 54Kg 5. Principles of pneumatic control XC-25 with pneumatic control, the two welding head an independent force, and can be adjusted freely. Its advantage is: when the left and right upper and lower electrode film is not about high or the battery a little height difference, the two electrodes is still balanced by the force, will not affect the welding quality.
Schematic is as follows:
| Model | XC-25 |
| Power | 12KW |
| Power supply |
|
| Input voltage | 220V |
| Secondary voltage (open circuit) | 2.5-5V |
| Secondary current (general) | 30A-15A |
| Secondary short-circuit current (maximum) | 12000A |
| Frequency | 60/50Hz |
| Primary current (general) | 55A |
| The number of maximum current work rate | 5% |
| Input Plug | Three-legged |
| Welding Control |
|
| Pre-welding pulses (maximum) | 0-9 waves |
| Welding pulses (maximum) | 0-9 waves |
| Welding energy regulation | 0-999 |
| Welding rate of compensation | +30 V,-40v |
| Two pressure time | 0.2 seconds * 8 |
| Digital display | 7-bit digital control * 3 |
| Ratio shows | 8 shows lattice |
| Master computer | 8BIT micro-electronic control |
| Digital Memory | E. EPROM |
| Precision Control |
|
| Pressure time | 0.01-0.99 seconds |
| The first pulses | 0-99 |
| The first pulse of energy regulation | 0-999 |
| After the pressure of time | 0.01-0.99 seconds |
| Welding head |
|
| Cylinder | 32mm * 30mm |
| Long arm welding | 360mm |
| Welding nozzle size (standard) | 3mm * 70mm |
| Welding head distance (adjustable) | 0.1mm |
| Table height (adjustable) | 150mm |
| Spot buffer settings | 0-5KG * 2 Built-in buffer |
| Welding head structure | Split |
| Pneumatic operation |
|
| Maximum working pressure | 10KG |
| Minimum working pressure | 20KG |
| Air consumption | 4300 cubic meters / 1,000 meters |
| Coherent structure | Quick Plug
|
