| Prod Model: |
FPQ-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulator Material: |
Polymer Silicon Rubber Insulator |
| Using Application: |
High Voltage |
| Rated Voltage: |
10kv |
| Spindle Material: |
Galvanized Steel |
| Insulator Color: |
Grey /Brown |
| IEC Standard: |
ANSI C29.13-2000 |
| Min Arc Distance: |
125mm |
| Min Creepage Distance: |
280mm |
| Lighting Impulse Voltage: |
75kv |
| Application: |
Low-voltage |
| Material: |
Composite Polymer |
| Structure: |
Suspension Insulator |
| Type: |
A Type Insulator |
| Color: |
Grey |
| Brand: |
OEM |
Product Description

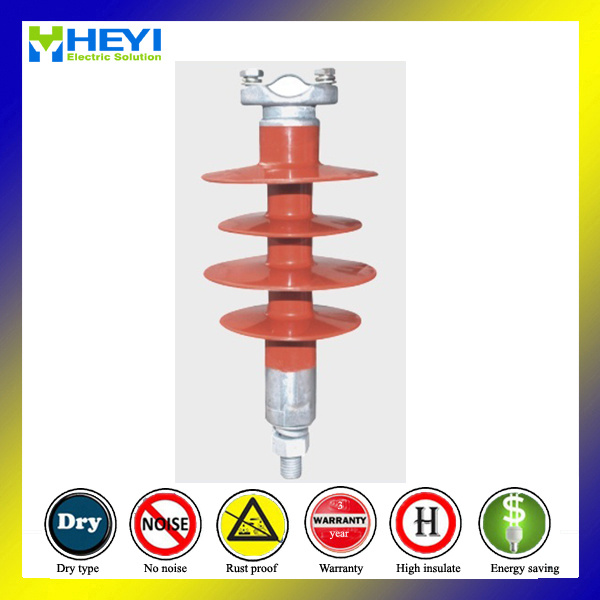

wenzhou IEC 10kv polymer Suspension composite insulator
1.The Composite Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.
2.The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem - interface electric spark puncture, which would affect the reliability of composite insulator.
Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level,
3.have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.
wenzhou IEC 10kv polymer Suspension composite insulator Specification
| Key Specifications/Special Features: | | | |
| Model | FPQ-10/4T20 | FPQ-10/2.5 | FPQ-10/5T20 |
| Rating Voltage | 10kv | 10kv | 10kv |
| Specialized mechanical tension load: | 4KN | 2.5KN | 5KN |
| Structure height | 215mm | 250mm | 250mm |
| Min Arc Distance | 125mm | 180mm | 165mm |
| Min creepage distance | 280mm | 380mm | 370mm |
| Lightning impulse voltage: | 75kv | 75kv | 105kv |
| Power frequency wet withstand voltage | 42kv | 45kv | 42kv |
wenzhou IEC 10kv polymer Suspension composite insulator advantage
1.20 years global leading profession manufacture of energy meter
2.High quality porcelain material
3.Test data: each products will test by QC
4.Fast delivery : you will get the order when you need it
6.OEM is warmly welcome
7.3 line assemble line automatic machine ,
8.Convenient : 45 minutes to wenzhou airport
IEC 10KV Composite Line Post Insulator function
1.This product is reliable structure
2.can't damage the core rod,
3.take full advantage of the mechanical strength.
4.excellent seismic performance,
5.good anti pollution performance; high quality stability.
wenzhou IEC 10kv polymer Suspension composite insulator Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
Why choose wenzhou IEC 10kv polymer Suspension composite insulator
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
