| Prod Model: |
CP62/WS |
| Coil Numbe: |
Auto Transformer |
| Color: |
Orange |
| Product Type: |
Window Type |
| Export Market: |
World |
| Quality: |
AAA |
| Company Size: |
Large |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Three |
Product Description
Product Description

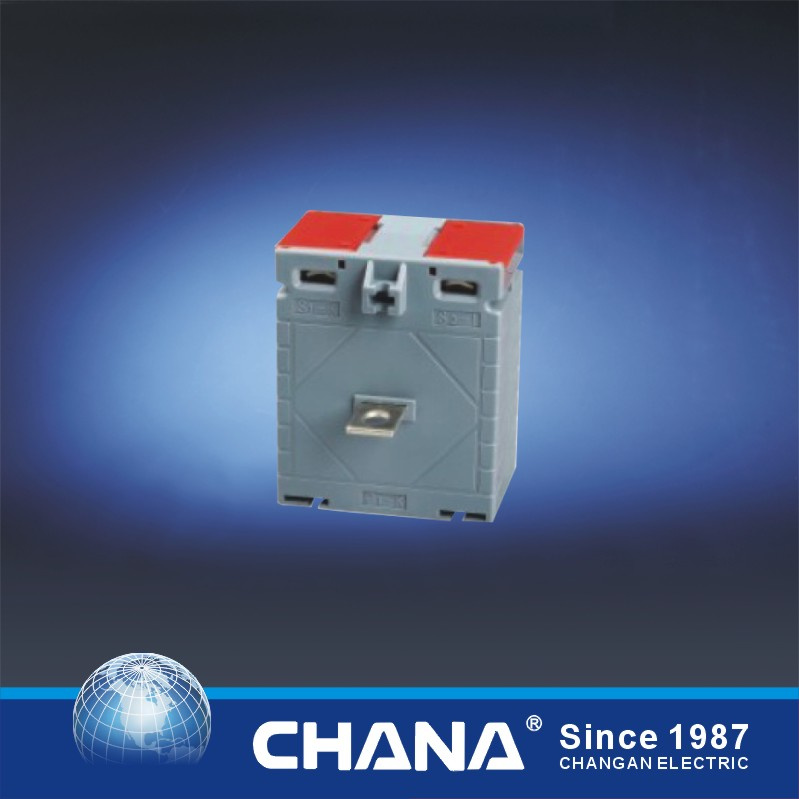

CP(MES) Current Transformers
Electrical Parameter
Frequency:50-60Hz
Rated Input:1A-5000A
Measurin range:5%In-130%In
Rated Out put:1A,5A
Rated Voltage 0.72kV(AC)
Dielectric strength:3.0kV/1mA/1min
Insalation resistance:DC500V/100MΩ/min
Mechanical Parameter
Case:PC/UL94-V0
Bobbin: PBT
Core:Silicon Steel
Construction:Srcrew
Operating Temp:-25ºC~+75ºC
Operating Humidity:≤85%
Output Connection:terminal
General:
CP(MES) series current transformer is compact.samller than other models with the current ratio of ther transfoermer is small,clamshell style termail cover is well protected by the second terminal.with related accessories you can use Din rail mounting,a current from 5A to 300A
Type Selection:
| Model | Rated Current ratio(A) | Burden(VA)/Accuracy |
| 0.5 | 1 |
| CP-4 | 5/5 | 5 | 10 |
| 10/5 | 5 | 10 |
| 15/5 | 5 | 10 |
| 20/5 | 5 | 10 |
| 30/5 | 5 | 10 |
| 40/5 | 5 | 10 |
| 50/5 | 5 | 10 |
| 80/5 | 5 | 10 |
| 100/5 | 5 | 10 |
| 5-100/1 | 5 | 10 |
| CP62/WS | 5/5 | 1.5 | 2.5 |
| 10/5 | 1.5 | 2.5 |
| 15/5 | 1.5 | 2.5 |
| 20/5 | 1.5 | 2.5 |
| 30/5 | 2.5 | 5 |
| 40/5 | 2.5 | 5 |
| 50/5 | 2.5 | 5 |
| 60/5 | 2.5 | 5 |
| 75/5 | 2.5 | 5 |
| 80/5 | 2.5 | 5 |
| 100/5 | 5 | 10 |
| 150/5 | 5 | 10 |
| 5-100/1 | 5 | 10 |
| CP45/14 | 50/5 | 1.5 | 2.5 |
| 60/5 | 1.5 | 2.5 |
| 75/5 | 1.5 | 2.5 |
| 80/5 | 1.5 | 2.5 |
| 100/5 | 1.5 | 2.5 |
| 30/1 | 1.5 | 2.5 |
| 40/1 | 1.5 | 2.5 |
| 50/1 | 1.5 | 2.5 |
| 60/1 | 1.5 | 2.5 |
| 75/1 | 1.5 | 5 |
| 100/1 | 2.5 | 5 |
| 150/1 | 2.5 | 5 |
| CP62/20 | 30/5 | - | 1.5 |
| 40/5 | 1.5 | 2.5 |
| 50/5 | 1.5 | 2.5 |
| 60/5 | 1.5 | 2.5 |
| 75/5 | 1.5 | 2.5 |
| 80/5 | 2.5 | 5 |
| 100/5 | 2.5 | 5 |
| 150/5 | 5 | 10 |
| 200/5 | 5 | 10 |
| 75/1 | 1.5 | 2.5 |
| 100/1 | 2.5 | 5 |
| 200/1 | 5 | 10 |
| CP62/30 | 30/5 | | 2.5(4T) |
| 40/5 | | 2.5(3T) |
| 50/5 | | 2.5(2T) |
| 60/5 | | 2.5(2T) |
| 75/5 | | 2.5 |
| 100/5 | 1.5 | 2.5 |
| 150/5 | 2.5 | 5 |
| 200/5 | 3.75 | 5 |
| 250/5 | 5 | 7.5 |
| 400/5 | 5 | 10 |
| 50/1 | 2.5 | 5 |
| 400/1 | 5 | 10 |
| CP62/40 | 60/5 | | 1.5(2T) |
| 75/5 | | 1.5(2T) |
| 100/5 | | 1.5 |
| 150/5 | | 2.5 |
| 200/5 | 1.5 | 2.5 |
| 250/5 | 2.5 | 3.75 |
| 400/5 | 2.5 | 5 |
| 500/5 | 2.5 | 5 |
| 600/5 | 5 | 7.5 |
| 60/1 | 2.5 | 5 |
| 250/1 | 2.5 | 5 |
| 600/1 | 5 | 10 |
| CP74/40 | 60/5 | | 1.5 |
| 75/5 | 1.5 | 2.5 |
| 100/5 | 1.5 | 2.5 |
| 150/5 | 1.5 | 2.5 |
| 200/5 | 1.5 | 5 |
| 250/5 | 2.5 | 5 |
| 400/5 | 5 | 7.5 |
| 500/5 | 5 | 10 |
| 600/5 | 5 | 10 |
| 60/1 | 2.5 | 5 |
| 250/1 | 2.5 | 5 |
| 600/1 | 5 | 10 |
| CP74/50 | 150/5 | 1.5 | 2.5 |
| 200/5 | 2.5 | 5 |
| 250/5 | 2.5 | 5 |
| 400/5 | 2.5 | 5 |
| 500/5 | 2.5 | 5 |
| 600/5 | 5 | 7.5 |
| 800/5 | 5 | 7.5 |
| 1000/5 | 5 | 10 |
| 500/1 | 5 | 10 |
| 800/1 | 5 | 10 |
| 1000/1 | 5 | 10 |
| CP80/30 | 30/5 | | 2.5(4T) |
| 40/5 | | 2.5(2T) |
| 50/5 | | 2.5(2T) |
| 60/5 | | 1.5 |
| 75/5 | | 1.5 |
| 100/5 | | 2.5 |
| 150/5 | 2.5 | 3.75 |
| 200/5 | 2.5 | 5 |
| 250/5 | 5 | 5 |
| 400/5 | 5 | 10 |
| 50/1 | 2.5 | 5 |
| 400/1 | 5 | 10 |
| CP83/40 | 100/5 | | 2.5 |
| 150/5 | 2.5 | 5 |
| 200/5 | 2.5 | 5 |
| 250/5 | 2.5 | 5 |
| 300/5 | 2.5 | 5 |
| 400/5 | 5 | 7.5 |
| 500/5 | 5 | 7.5 |
| 600/5 | 5 | 10 |
| 800/5 | 5 | 10 |
| 250/1 | 5 | 10 |
| 500/1 | 5 | 10 |
| 800/1 | 5 | 10 |
| CP86/60 | 400/5 | 3.75 | 5 |
| 500/5 | 5 | 10 |
| 600/5 | 5 | 10 |
| 750/5 | 10 | 15 |
| 800/5 | 10 | 15 |
| 1000/5 | 10 | 15 |
| 1200/5 | 10 | 15 |
| 1500/5 | 10 | 15 |
| 500/1 | 5 | 10 |
| 800/1 | 5 | 10 |
| 1000/1 | 5 | 15 |
| 1500/1 | 10 | 15 |
| CP100/60 | 400/5 | 3.75 | 5 |
| 500/5 | 5 | 10 |
| 600/5 | 5 | 10 |
| 750/5 | 10 | 15 |
| 800/5 | 10 | 15 |
| 1000/5 | 10 | 15 |
| 1200/5 | 10 | 15 |
| 1500/5 | 10 | 15 |
| 1600/5 | 10 | 15 |
| 800/1 | 5 | 10 |
| 1000/1 | 5 | 15 |
| 1600/1 | 10 | 15 |
| CP104/80 | 600/5 | 5 | 10 |
| 750/5 | 5 | 10 |
| 800/5 | 5 | 10 |
| 1000/5 | 10 | 15 |
| 1200/5 | 10 | 15 |
| 1500/5 | 10 | 15 |
| 1600/5 | 10 | 15 |
| 1800/5 | 15 | 20 |
| 2000/5 | 15 | 20 |
| 800/1 | 5 | 10 |
| 1000/1 | 5 | 15 |
| 2000/1 | 10 | 15 |
| CP140/100 | 800/5 | 10 | 15 |
| 1000/5 | 10 | 15 |
| 1200/5 | 10 | 15 |
| 1500/5 | 10 | 20 |
| 1600/5 | 15 | 20 |
| 2000/5 | 15 | 25 |
| 2500/5 | 15 | 25 |
| 3000/5 | 15 | 25 |
| 800/1 | 10 | 10 |
| 2000/1 | 15 | 15 |
| 3000/1 | 15 | 25 |
