Shenzhen Westart Technology Co., Ltd. >> Westart High Energy Lithium Ion Battery with Module Ws-Ncm210ah-3.7V

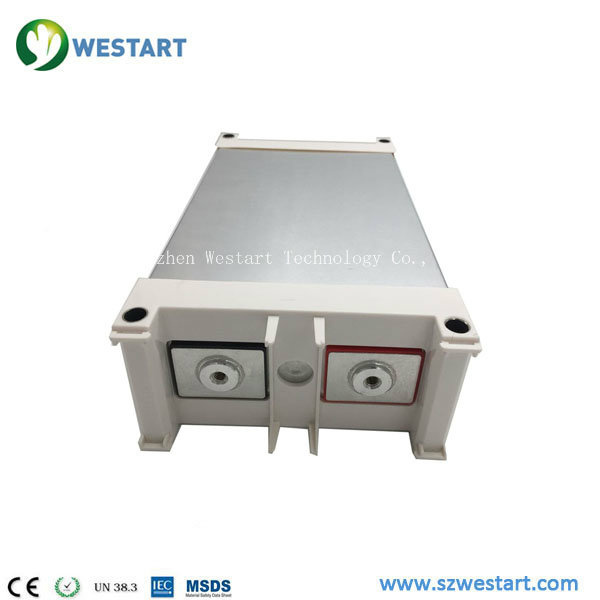

Westart High Energy Lithium Ion Battery with Module Ws-Ncm210ah-3.7V

Westart High Energy Lithium Ion Battery with Module Ws-Ncm210ah-3.7V
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: WS-NCM210AH-3.7V
Capacity: 210ah
Weight: 4.25kg
Assembly Mode: Laser Welding or Screw by Module Design
Type: Lithium-Ion Battery Pack
Connection Mode: Parallel Connection
Usage: EV,Etruck,Eboat,Ebus,etc.
Electrolyte: Lipf6

Product Description

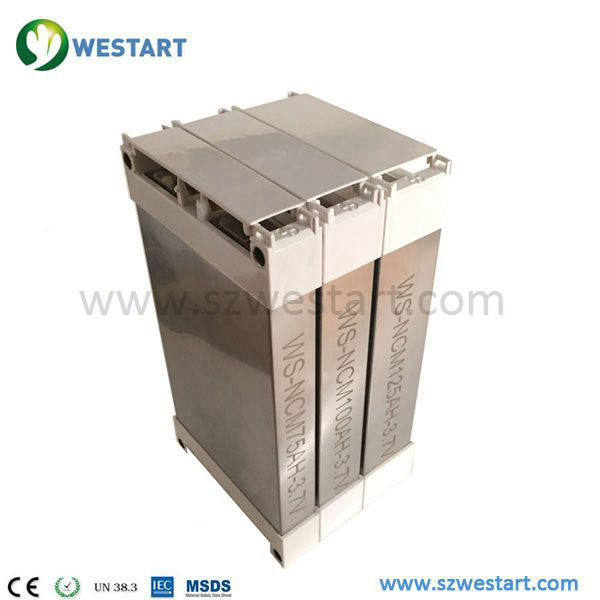

 WESTART NCM Lithium battery module technical Advantage

- With our unique module design we make it easy to build small and large batteries out of NCM pouch cells.
- The plastic holders ensure a good insulation and a rugged fixation even for challenging applications.

WESTART NCM Lithium battery module feature

- Module design with terminal bolt to make easy assembly
- Double sealed design, to protect battery punctured by external forces with high strength
- Explosion proof valve module housing design make relief protection







Specification

Model No.WS-NCM210AH-3.7V
Nominal Capacity210Ah at 0.3C Discharging
Minimum Capacity210Ah at 0.3C Discharging
Nominal Voltage3.7V
Internal Resistanceless than 0.3m Ohm
Charging(CC-CV)Charging Current0.5C continuous or 1C peak
Charging Upper
Limit Voltage		4.2V
DischargingDischarging Current2C continuous or 5C peak
Discharging
Cut-off Voltage		3.0V
Charging TimeStandard Charging2H
Quick-acting Charging1H
Operation TemperatureCharging0 degree-45 degree
Discharging -20 degree-55 degree
Weight4.25Kg
Size  or with Plastic Holders69.5x135x235mm or  72x141x252mm
Shell MaterialMetal
Production base: Covers an area of 133, 333 square meters.

Product: High safety, long life cycle of NCM EV batteries.

Certification: SGS-ISO9001: 2008 quality control system, CE, RoHS, UN38.3, QCT-743 and TS16949 etc.

Shenzhen Westart Technology Co., Ltd. is leading in design, manufacture, sales and marketing of rechargeable lithium ion/polymer batteries and related battery packs and systems. At its heart WESTART is a battery chemistry innovator with patent applications, Our NCM lithium ion polymer battery are widely used in electric vehicles, electric buses, electric trucks and other energy storage application. In addition to the customerized electric vehicle markets, WESTART is advancing to electric vehicles and electric energy storage markets.

Vision:

To be an international premier innovative technology corporation, rooted in the Chinese culture, excelling in the global green energy industry, while endeavoring to enrich the lives of our employees

Mission:

Aims to be a premier solution provider for green energy storage
