| Prod Model: |
690-12v140Ah |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Battery Type: |
Wet Acid Low Maintenance Free Calcium Battery |
| Material: |
Lead Acid |
| Sealed Type: |
Sealed |
| Battery Container: |
ABS |
| OEM Service: |
Available to Us |
| Warranty: |
13 Months From B/L Date |
| Factory Located In: |
Shaoguan City |
| Type: |
Lead-Acid Batteries |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
12V |
| Usage: |
Automotive Starting Battery |
Product Description

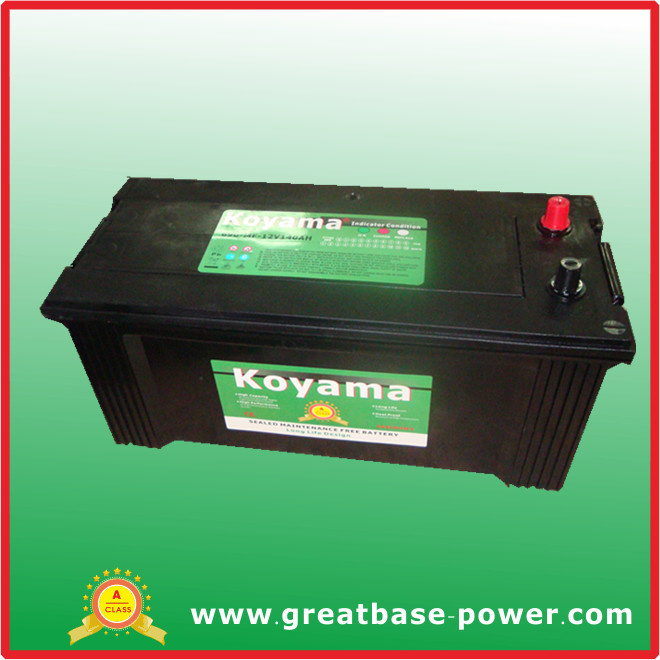

Koyama® 12V140AH Auto battery/ Car battery/ Truck battery/ Automotive battery/ Maintenance free battery/ Smf battery/ Sealed mf battery/ Lead acid battery/ Starting battery/ Rechargeable starting battery/ Dry charged car battery/ Automotive battery/ Automobile battery/ Auto battery/ DIN, JIS standard battery
JIS standard Africa battery
1. Product Description:
| Standard | JIS Standard |
| Sort | MF automotive batteries |
| Model | 690 |
| Voltage | 12V |
| Rated Capacity ( 20HR ) | 140Ah |
| Dimension(mm) | 504*180*210*230 |
| CCA( -18º C,) | 940 |
| Approx Wt. ( Kgs ) | 36 |
| Plates | 23 |
| Terminal type | A |
| Layout | 4 |
| OEM service | OK |
1. Good warrantyservice
2. Super start performance
3. Outstandng look
4. New Japanese&Korean tech
Specification:IS Sealed Maintenance Free/MF Auto Battery (Start Battery)
Standard: IEC, Japan's JIS & Asia standard
Sort: Maintenance Free Car Battery
Quality: Silver Quality
Size ( mm ): L*W*H*TH=L504*W180*H210/TH230mm
Voltage ( V ): 12 v
Rated Capacity ( 20HR, AH ): 140 ah
RC & Reserve Capacity ( Min ): 234
CCA & Cranking AMPS ( -18 C, A ): 940
Approx Wt. ( Kgs ): 36kgs
Layout: 4
Terminal Type: A ( Standard Terminal )
OEM: OK
Certification:ISO9001: 2000, ISO14001, CE, UL, etc
Quanlity Warranty:The quality guarantee is 13 months from our manufacture date or B/L date. We will replace any defective batteries by new ones at our cost if there is any.
Application scope:
Starting batteries of auto/automobile, cars, trucks, motorcycles, ships, marine boats and other vehicles.
| New Type | Old Type | Voltage | Capacity | R. C. | C. C. A | Overall Dimensions (mm) | Layout | Terminals |
| (V) | C20(Ah) | (Min) | (A) -18 | L | W | H | TH |
| 95E41RMF | N100MF | 12 | 100 | 183 | 830 | 402 | 172 | 205 | 225 | 1 | A |
| 95E41LMF | N100LMF | 12 | 100 | 183 | 830 | 402 | 172 | 205 | 225 | 0 | A |
| 115E41RMF | N120AMF | 12 | 110 | 207 | 910 | 402 | 172 | 205 | 225 | 1 | A |
| 115E41LMF | N120ALMF | 12 | 110 | 207 | 910 | 402 | 172 | 205 | 225 | 0 | A |
| 130E41RMF | NX200-10MF | 12 | 115 | 216 | 920 | 402 | 172 | 205 | 225 | 1 | A |
| 130E41LMF | NX200-10LMF | 12 | 115 | 216 | 920 | 402 | 172 | 205 | 225 | 0 | A |
| 115F51MF | N120MF | 12 | 120 | 232 | 946 | 504 | 180 | 210 | 230 | 4 | A |
| 145F51MF | NS150MF | 12 | 135 | 271 | 970 | 504 | 180 | 210 | 230 | 4 | A |
| 145G51MF | N150MF | 12 | 150 | 313 | 1020 | 507 | 220 | 212 | 230 | 4 | A |
| 195G51MF | N180MF | 12 | 180 | 365 | 1188 | 507 | 220 | 212 | 230 | 4 | A |
| 195H52MF | N200MF | 12 | 200 | 430 | 1200 | 514 | 265 | 210 | 235 | 4 | A |
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
Your any cooperation is highly appreciated
