WHC SOLAR CO., LTD. >> Whc off-Grid 3000W Solar Inverter for Home System

Whc off-Grid 3000W Solar Inverter for Home System

Whc off-Grid 3000W Solar Inverter for Home System
Price: US $ 310.3-318.2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: WHC SOLAR 3024
Product Name: Whc off-Grid 3000W Solar Inverter for Home System
Color: Green
Net Weight: 20kg
Gross Weight: 30kg
Display: LCD Digital

Product Description

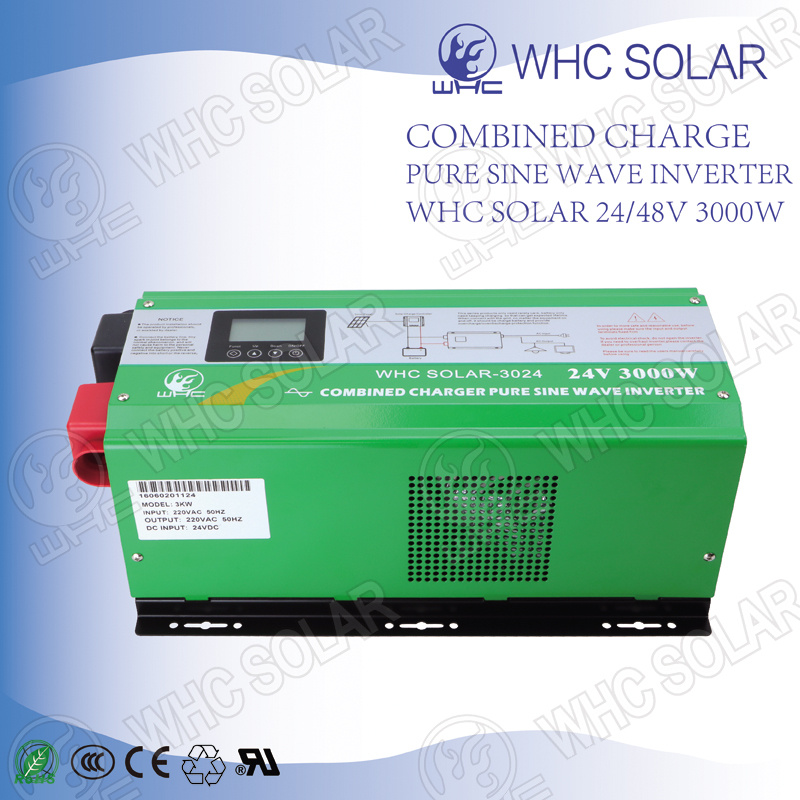

WHC off-grid 3000W solar inverter for home system
Product Description
Professional True Sine Wave Solar Power Inverter 3000W

Product Features
1.Double CPU intelligent control technology, excellent performance
2.The grid mode/energy-saving mode/battery mode could be set, application flexible
3.Charge current/battery type could be set, convenient and practical
4.Intelligent fan control, save and reliable
5.Pure sine wave AC output, and be adapt to all kinds of loads;
6.LCD display equipment parameter in real-time, operation status be clear at a glance
7.Muli-protection,Output overload, short circuit protection, various of automatic protection and alarm warning;

Professional True Sine Wave Solar Power Inverter 3000W

Product Parameters
Rate power1000W1500W2000W3000W
BatteryRate voltage12VDC/24VDC/48VDC24VDC/48VDC
Charge current30A(default)-C0-C6can be set
Battery typeU0-U7 can be set
InputVoltage range85-138VAC/170-275VAC
Frequency45-65Hz
OutputVoltage range110VAC/220VAC;±5%( Inverter mode)
Frequency50/60Hz±1%( Inverter mode)
Output wavePure sine wave
Switching time<10ms( traditional load)
Efficiency>85%(80% Resistance load)
Overload110-120%/30S;>160%/300ms
ProtectionBattery overvoltage/lowvoltage, overload, short circuit protection, oevertemperature protection, etc.
Operating ambient
  temperature
0-40ºC
Storage ambient temperature-15 - +50ºC
Operating/Storage ambient0-90%No condensation
Machine Size: L*W*H             (mm)453*220*180
Package size: L*W*H             (mm)580*290*220

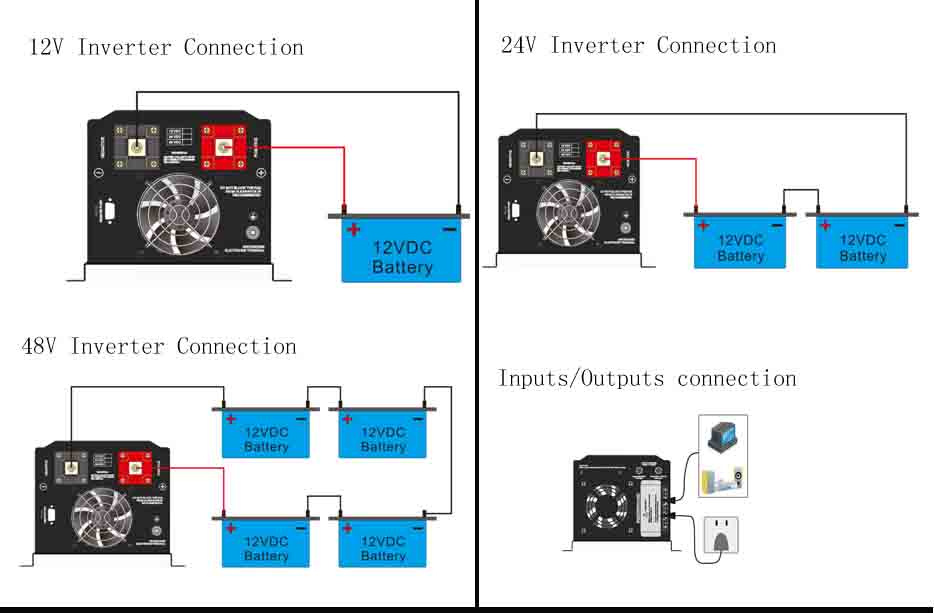

Connection Diagram
Professional True Sine Wave Solar Power Inverter 3000W

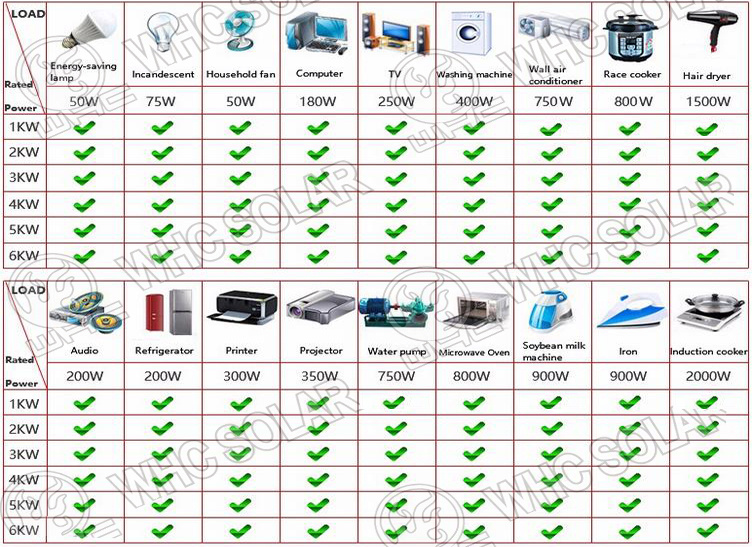

Product Application
Professional True Sine Wave Solar Power Inverter 3000W


Why choose WHC

A. High Standard Quality Control
B. with 9 years enperience on power inverter.
C. Strong enterprise innovation, with groups of professional engineers.
D. Best price with high quality
E. comprehensive after-sales service
F. Low MOQ for mid-brand products.



Professional True Sine Wave Solar Power Inverter 3000W

WHC SOLAR is confident that we can provide our clients with the highest quality micro control power inverter.We are looking forward to establishing business relations you.


WHC SOLAR Technology Co., Ltd. is a collection development, production, and sales of photovoltaic tech enterprises, It's the first one in China dedicated solar home systems research and development, production and sales of photovoltaic enterprises, the company since its inception in 2005 established the quality of priority, the concept of brand management, and the use of simple, easy to maintain, reliable quality as a product design, which won a number of national patent and passed CE, RoHS, ISO9001: 2008 quality management system certification. Our main products include: Solar Power Systems, Solar Panels, Solar Controller, Solar Inverter, Solar Battery, Solar Energy kits etc. WHC SOLAR has advanced production testing equipment and strong R & D team, professional QC team and excellent business sales team. The company currently produces the vast majority of products covered by the requirements of customers on the use of solar home systems, and products in the industry with the most comprehensive and professional characteristics. Sold to: Africa, South America, India, Nepal, Cambodia, Bangladesh, Vietnam, the United States, Japan, Korea, and other countries and regions. WHC SOLAR as committed to providing customers: Reliable products, efficient service, as well as more specialized solutions. We can provide OEM & ODM, and product design and packaging services according to customer needs.
