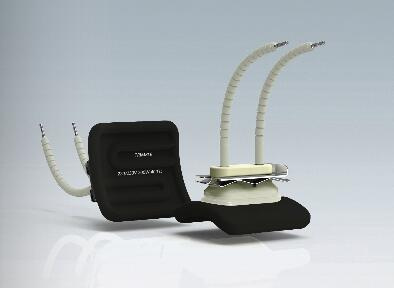

White, Black, Yellow Arc Infrared PTC Ceramic Heater 12V

Name: White, Black, Yellow Arc Infrared PTC Ceramic Heater 12V
Brand: all-electronics-online.com
SKU: 690437521
Availability: InStock
Rating: 4.5 (44 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ceramic heater

Product Description

Ceramic Infrared Heater Panel

We design a diverse selection of ceramic infrared heaters which are flat or curved and come with or without a thermocouple. Also, a range of lengths and widths are available on request. We manufacture these infrared ceramic heaters to your specifications and requirements.

Operation

The range of infrared heaters emitter uses a resistive element through which a current passes causing the element to heat the whole body.

Life
In normal operating conditions, ceramic infrared heaters give a normal operating life of 10,000 hours at 80% of maximum rated power. That's huge compared to our competitors!

Uniformity
Since our infrared ceramic heaters are integral contact with the refractory matrix and the surface temperature of the emitter arraigns a high degree of uniformity, leading it to an even emission over the surface area.

If you have any questions or concerns about our ceramic infrared heaters, call us online and one of our friendly team members will be more than happy to answer any of your questions or concerns. As Superb Heater is the leading manufacturers of heating elements.

Wattage available	150 - 1000 watts
Dimensions	245 x 60mm
Resistance wire	Nichrome 80/20
Heater Voltage	230 Volts standard (available on request)
Useful wavelength range	2-10 microns
Average Operating Life	Up to 20,000 hrs depending on conditions
Certification	CE
Recommended radiation distance from heater	100 mm to 200 mm
100mm ceramic beaded power leads	Supplied

Ceramic Heating Element	150W	250W	300W	400W	500W	650W	750W	1000W
Mean surface temperature	262ºC	354ºC	400ºC	464ºC	486ºC	589ºC	634ºC	722ºC
Max permissible operating temperature	750ºC
Max power density kW/m² (w/inch²)	0.9 (5.8)	1.5 (9.7)	1.8 (11.6)	2.4 (15.5)	3.0 (19.4)	3.9 (25.2)	4.5 (29)	6.0 (38.3)
Radiant Watt density at 100mm W/cm²	0.1		0.26		0.48	0.69		1.14
Average Weight	270g
Dimensions	245 x 60mm
Useful wavelength range	2 to 10µm.

Detailed Images

Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.

Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.

We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers

After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
