| Prod Model: |
SS-12-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Solar Water Controllers: |
12V |
| Solar Water Controllers Current: |
20A |
| Application: |
Thermal Controller |
| Rated Voltage: |
24V |
Product Description

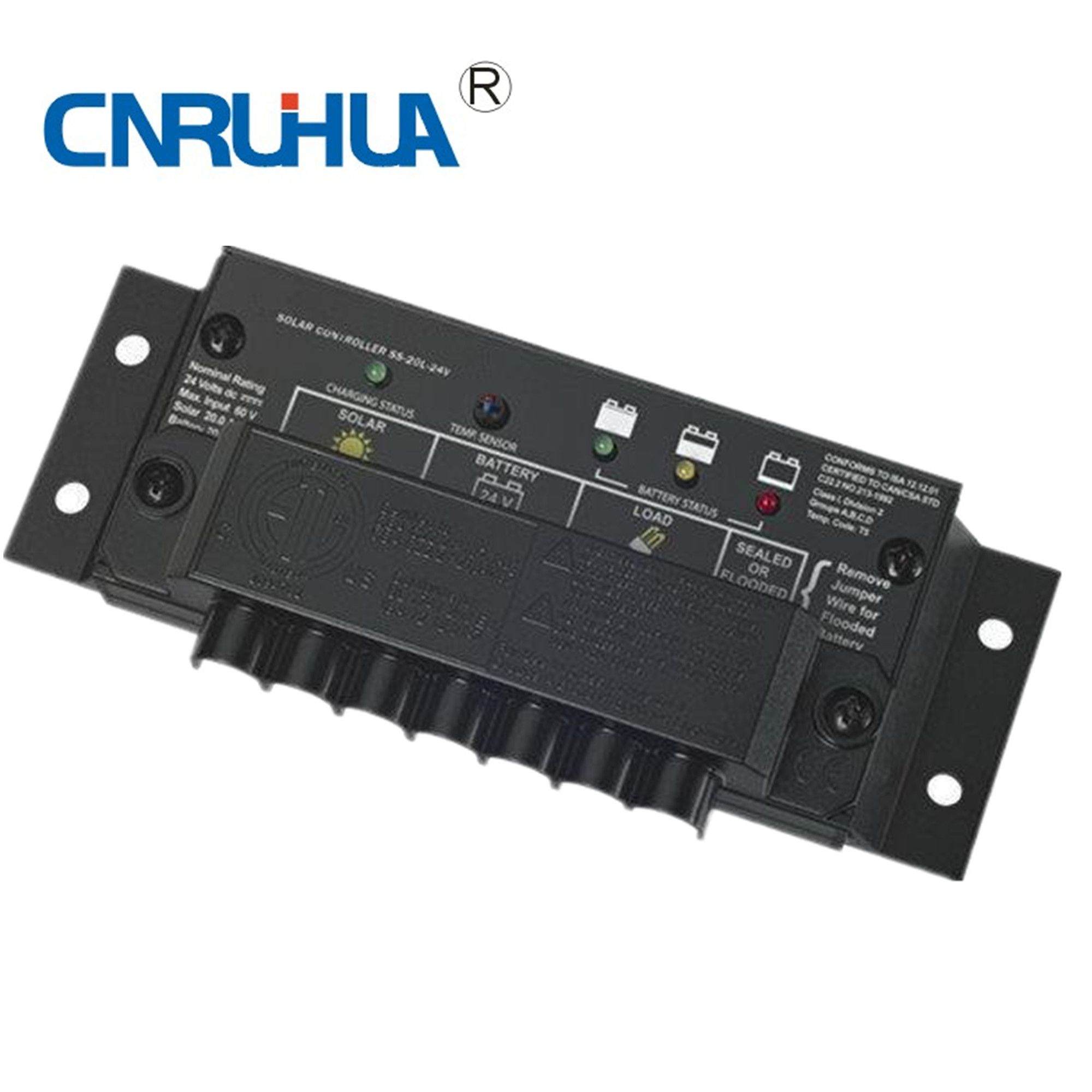

Whole Sales Easy Install 10A 12V Controller Solar
Specifications
1. Solar charger controller voltage 12 or 24VDC available
2. Solar charger controller currnet is 10A or 20A
12V/24V AUTO PWM Solar Panel 12v 24v Hot Selling mini 10A 12V solar charger controller
Our solar controllers are designed for solar home system, ideal for rural electrification systems, and many advantages compared to other controllers:
Low Cost
Solar controller has specifically designed to meet the needs of the rural electrification market. The low cost resulted from using the latest electronic technology and high volume manufacturing.
High Reliability
We are manufacturer of solar charge controllers, the products are designed for high quality and high reliability. The controller has a low failure rate and will last a long time, and got very good feedback from customers until now.
Electronic protections
The solar controllers are built-in electronic fused that do not require replacements.
Hot Selling mini 10A 12V solar charger controller Function
1. Battery State-of-Charge display.
2. Acoustic load disconnect pre-warning. Controller 1
3. PWM-regulation (series type) controller
4. Boost, Equalize and Float charging, also for VRLA. Controller
5. Automatic 12/24 Volt detection.
6. Integrated temperature compensation
7. Large terminals
8. SOC and voltage controlled LVD. (up to 16mm2 wire size).
9. Fully electronically protected.
Feature
1. Eight versions available
100% solid state
Series design(not shunt)
True 0 to 100%PWM duty cycles
Setpoint accuracy to 35 mv
Rated for 25% overloads
Fully encapsulated in epoxy potting;
Marine rated terminals/anodized case;
Temperature compensation;
Sealed/Flooded battery select
No need to derate
Parallel for 40 amps or more
Green charging/Red LVD indications
3 year warrantly
12V 20amp controller with(LVD) Low Voltage Disconnect. If the battery falls below 11.5(or 23.0) volts, the load is disconnected from the battery to protect against harmful deep discharges. A 2-second delay prevents load disconnects from translents. The load is automatically reconnected when the battery voltage recovers to 12.5(or 25.2) volts. Click on links on the bottom lefthand side for more information.
Technical Data
| Model | 6 | 10 | 20 |
| Rated Charge Current | 6.5A | 10A | 20A |
| Rated Load Current | 6A | 10A | 20A |
| System Voltage | 12V | 12V/24V | 2V/24V |
| Options | | | |
| Low Voltage Disconnect | Yes | Yes | Yes |
