| Prod Model: |

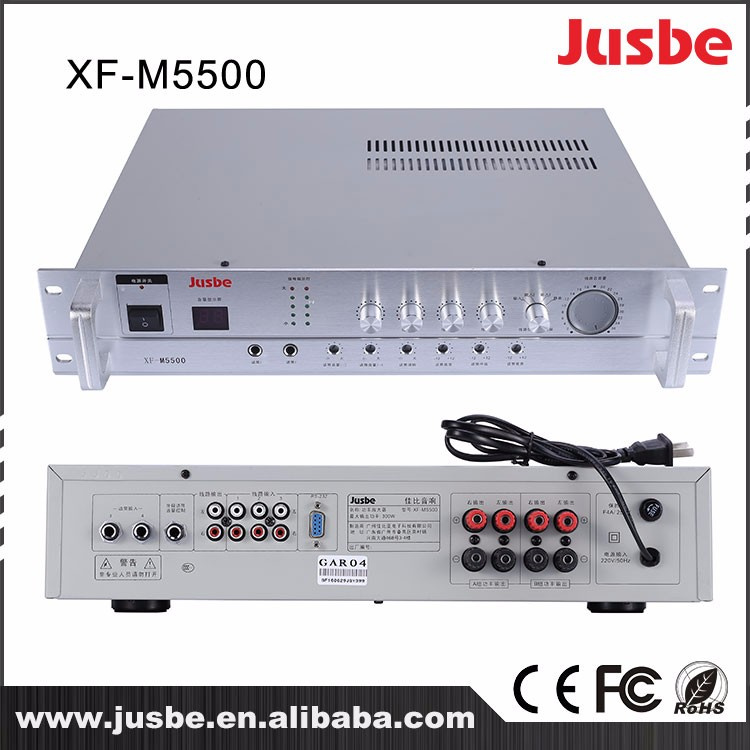

XF-M5500 |
| Rated Power: |
2 X 150W / 8ohm |
| Maximum Power: |
2 X 300W / 8ohm |
| Frequency Response: |
20Hz-20kHz |
| Distortion: |
0.5% |
| Snr: |
80dB |
| Main Fuse: |
4A |
| Power: |
AC 220V +- 10% / 50Hz |
| Color: |
Silver |
| Body Size: |
480*390*130 mm |
| Net Weight: |
8.5kg |
| Type: |
Professional Amplifier |
| Usage: |
Home |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2 |
| Output Number: |
2 |
| Conductive Mode: |
Integrated |
Product Description

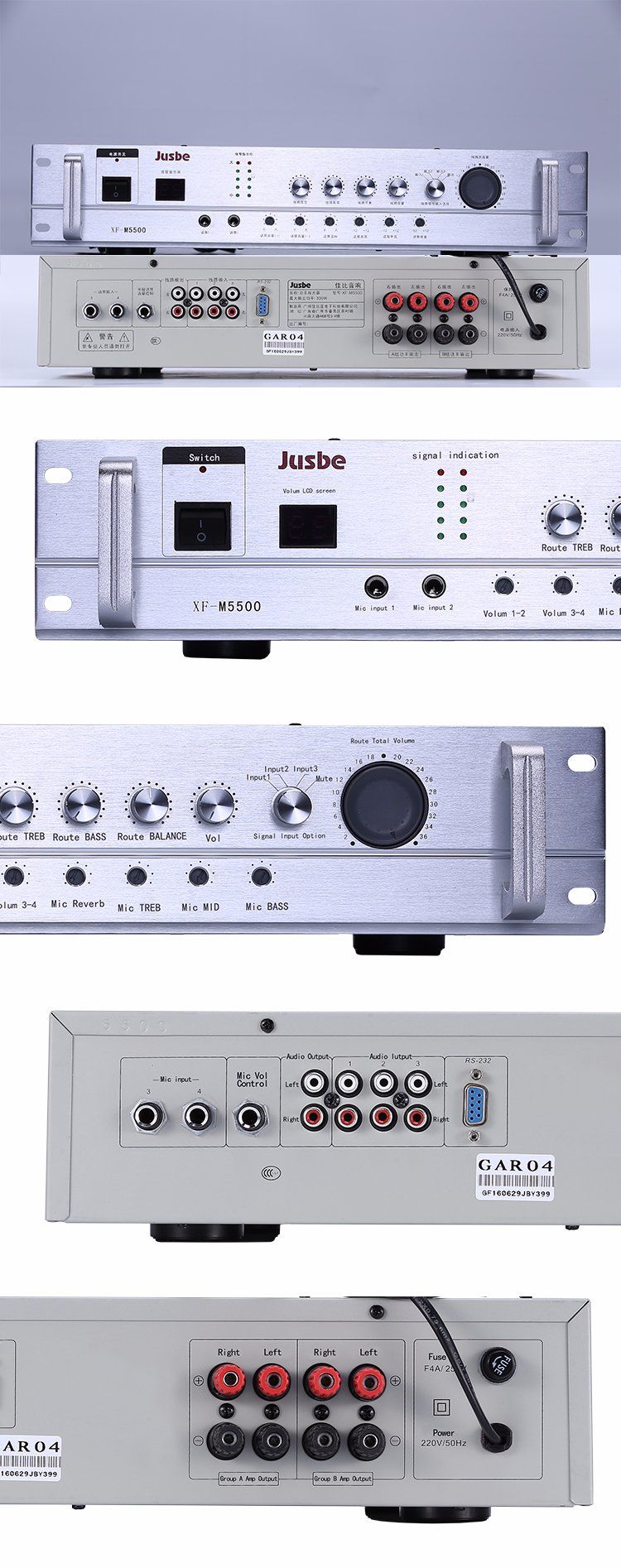

Features:★ has four output interface, can be connected to four 4-8Ω speakers;
★ dual channel signal indicator;
★ with RS232 control interface;
★ with digital display screen;
★ three-way audio input, with input selection switch;
★ four microphone jack (environmental microphone jack comes with DC +6 V power supply);
★ dual-channel high-fidelity full-separation, full-band power amplification system;
★ can achieve the microphone volume, high and low independent control and reverb adjustment, the line can be independent of the volume and high and low tone adjustment;
★ can effectively inhibit the sound feedback, to overcome the "whistle";
★ rack-mounted chassis, the main function keys using hidden design, effectively avoid misuse, can effectively extend the service life of the sound system;
★ full Chinese interface, easy to use for domestic users; can be widely used in multimedia classrooms, small conference rooms and other places of public address.
The main technical parameters:
Rated power: 2 × 150W / 8Ω;
Maximum power: 2 × 300W / 8Ω;
Frequency response: line input 20Hz-20KHz, microphone 60Hz-14KHz;
Line tone control: treble 10KHz ± 12dB, bass 100Hz ± 12dB;
Microphone tone control: treble 10KHz ± 12dB, bass 100Hz ± 12dB;
Rated input level: microphone 15mV (unbalanced), line 200mV;
Rated output level: line 0.775V;
Distortion ≤ 0.5%;
Signal to noise ratio: ≥80dB (A weighting);
Main fuse: 4A;
Power: AC 220V ± 10% / 50Hz;
Material and surface treatment: aluminum alloy sandblasting treatment;
Color: silver;

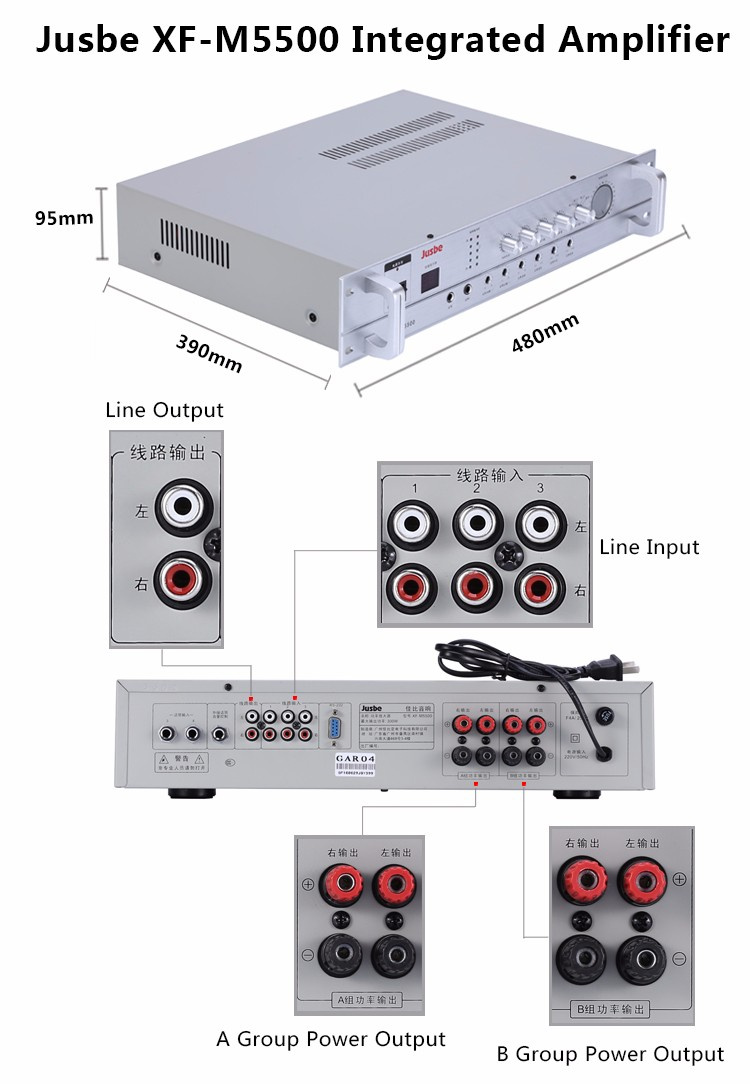

Packaging & Shipping★Product Size: 480 × 390 × 130 (unit: mm);
★Net Weight: 8.5kg.
★Gross Weight: 9 kg
Payment termSample:T/T 100% deposit before delivery.
Mass production: T/T 30%deposit in advance
Delivery timeSample:3 days
Mass production:5-7 day,depand on quantity
| Model | XF-M5500 | XF-M7500 | XF-E500 | XF-S70 |
| Rated power | 2*150W/8Ω | 2*100W/8Ω | 2*80W/8Ω | 2*65W/8Ω |
| Max power | 2*300W /4Ω | 2*200W /48Ω | 2*160W /4Ω | 2*130W /4Ω |
Frequency
Response | Line input: 20Hz-20KHz Microphone: 60Hz-14KHz |
| Rated Input Level | Microphone: 15mV(nonequilibrium), Line:200mV |
| Rated Output Level | Line: 0.775V |
| Harmonic Distortion | ≤ 0.5% |
| SNR | ≥ 80dB |
| Main Fuse | 4A | 3.15A | 3A | 1A |
| Power supply | AC220V±10%50Hz |
| Material | Aluminum alloy |
| Surface treatment | sandblasting |
| Color | silver | silver gray | Red | Red |
| Product Size(mm) | 480×390×130 | 480×280×75 | 480×300×75 | 480×280×70 |
| Net Weight | 8.5kg | 6kg | 5.7kg | 3.5kg |
