| Prod Model: |
SA-3P-75A-120V |
| Color: |
Black |
| Certificate: |
Ce, UL, CCC, S, CSA |
| Material: |
High Arc-Resistant Phenolic Resin |
| Application: |
Refrigeration, Air Conditioning and Heating |
| Electrical Life: |
1, 000, 000(AC3) |
| Mechanical Life: |
10, 000 |
| Frequency: |
50/60Hz |
Product Description

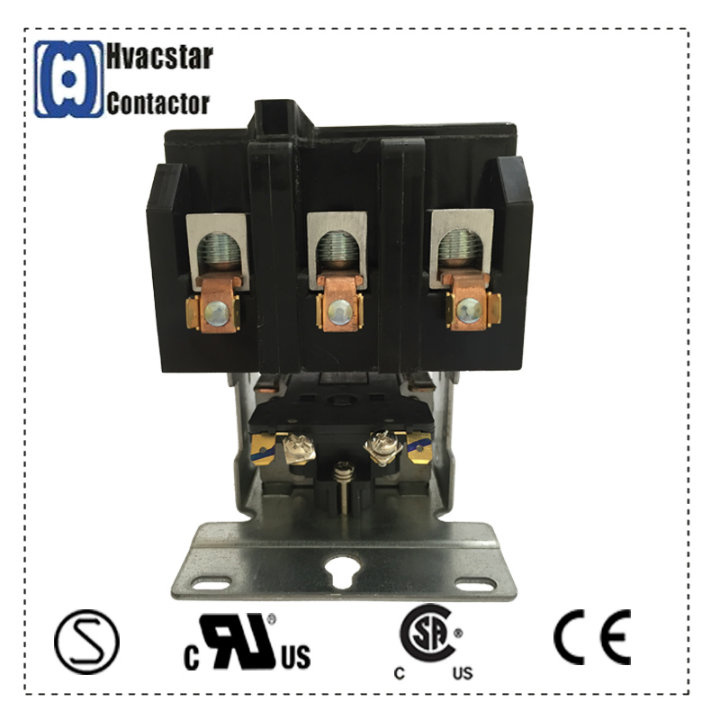

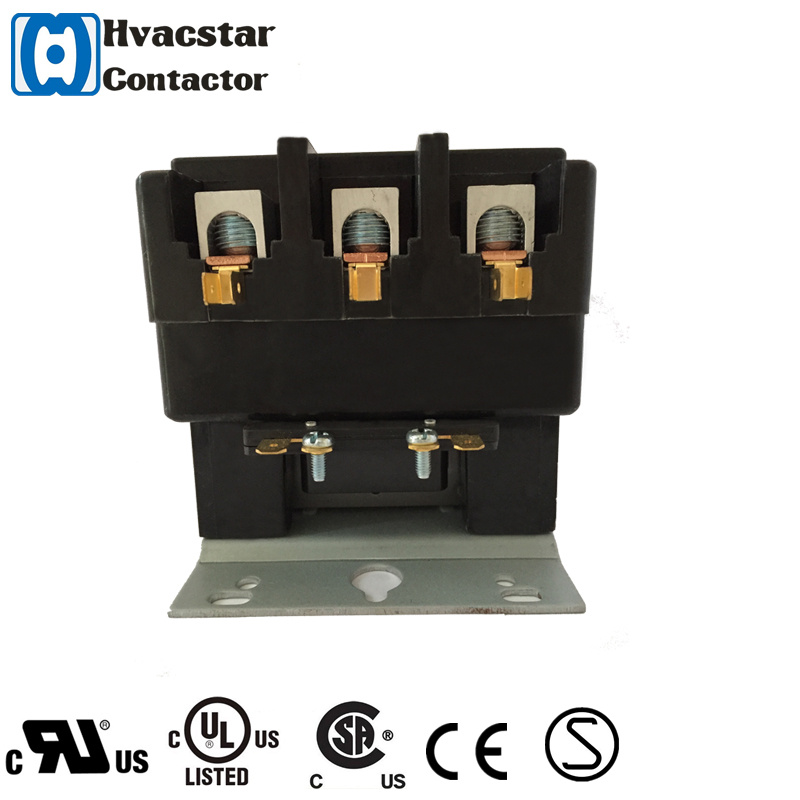

SA-3P-75A-120V Wholesale AC Contactor Good Quality SA-3P-75A-120V Air Conditioning DP Contactor

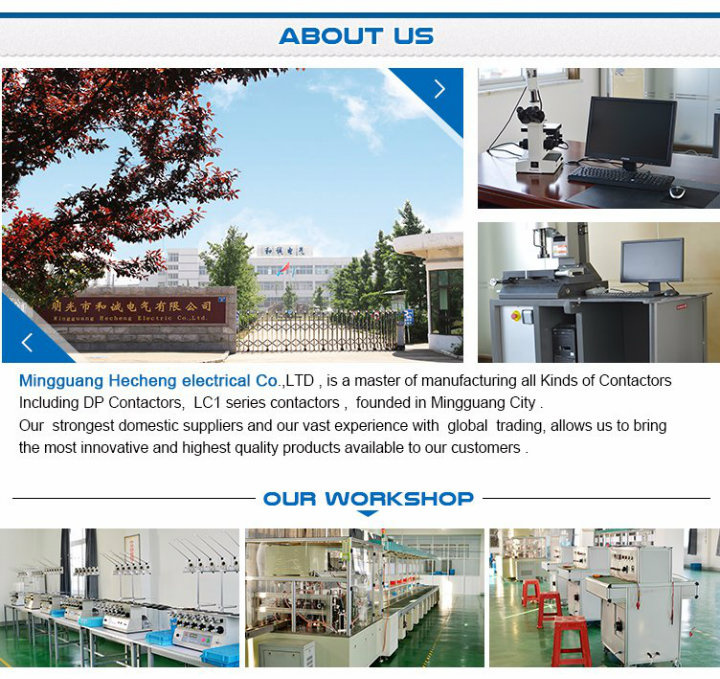

About us:Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors (including
DP Contactors, LC1 series contactors , Founded in Mingguang City,China, in 2005, stepped into the HVAC industry as a reliable source .
Our strongest domestic suppliers and our vast experience with global trading, allows us to bring the
Most innovative and highest quality products available to our customers.
Products Application
SA series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of UL/CSA.
Products Details
| FLA | 75 |
|
| Poles | 3 |
| Resistive Amps | 90 |
| Coil Voltage | 120 |
| Hertz | 50/60 |
| Locked Rotor Amps 240/480/600 | 450/375/300 |
| Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options. |
| Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits. |
| Terminations:#10-32 screw - 20, 25 & 30 FLA Models, Box Lug - 40, 50, 60, 75 & 90 FLA Models |
| Temperature Range:- 40°F to + 150° F / - 40°C to + 65° C |
| Replaces: Siemens/42FE35AF106,GE/CR353EG3BA1,Cutler-Hammer/C25FNF375A,Gemline/GDP7031,Hartland Controls/HCCY3XT07CJ303. |
RATING:Models SA-1.5P, SA-2P are rated 600 VAC, single-phase. Models SA-3P, SA-4P are rated 600VAC, three-phase, except models rated 300 LRA and 360 LRA are rated 480VAC max. See table for FLA/LRA/Resistive or Resistance air heating ratings. All devices are rated "Break All Lines." | MODEL | FLA(A) | LRA(A) | LRA(A) | LRA(A) | LRA(A) | Resistive or Resistance air heating(*) |
| | | 480 V ac | 600 V ac | 277 V ac | 240 V ac | 277vac |
| SA-1.5P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| SA-2P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| 50 | 240 | 200 | 240 | 300 | 50 |
| 60 | 300 | 240 | 240 | 360 | 60 |
| 75 | 300 | - | 300 | 450 | 75 |
| 90 | 360 | - | 360 | 540 | 90 |
| SA-3P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| 50 | 240 | 200 | 240 | 300 | 50 |
| 60 | 300 | 240 | 240 | 360 | 60 |
| 75 | 300 | - | 300 | 450 | 75 |
| 90 | 360 | - | 360 | 540 | 90 |
| SA-4P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
Short Circuit Rating: SA-1.5P, 2P, 3P, 4P - 5,000A @ 277 V, 480 V, 600 V
FAQ:
Q1: Can I get a sample for testing?
A: Yes, warm-welcomed for sample purchase.
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: Full-refund policy in case of quality problem.
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .Contact Us:
Any inquiry Please feel free to let me know !!!
Contact :Ivy Xia
WA: +86 13868392506
Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

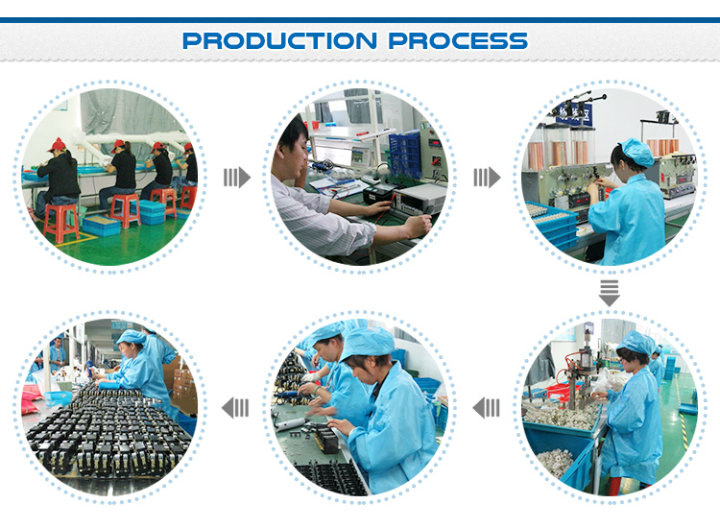

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.
We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.
If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
