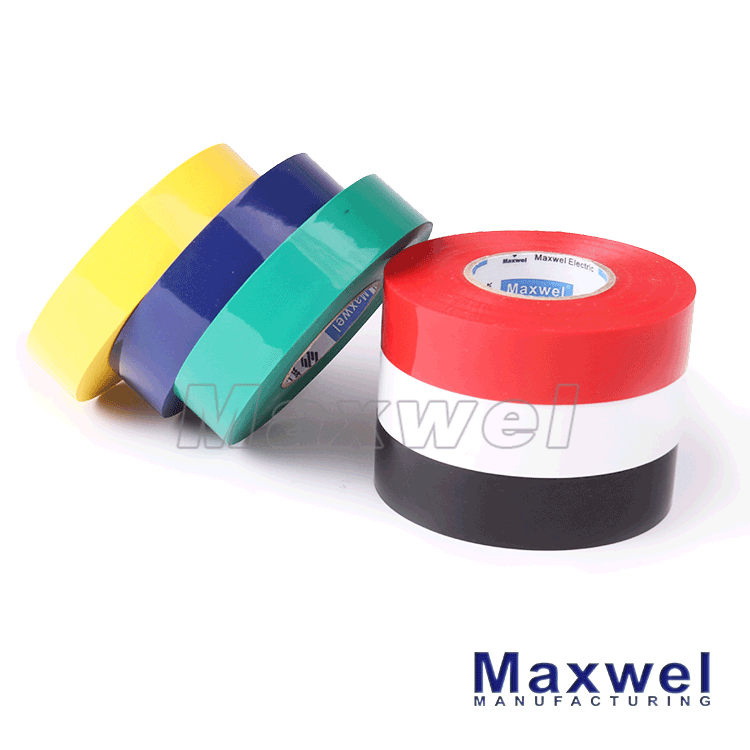

Wholesale China Colorful Electrical Insulation Tape PVC Tape

Name: Wholesale China Colorful Electrical Insulation Tape PVC Tape
Brand: all-electronics-online.com
SKU: 740902265
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	US $ 0.004/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PVC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Adhesive:	Rubber
Tensile Strength:	14-30 N/Cm
Thickness:	0.10mm-0.20mm
Common Size:	19mm0.1310yard
Feature:	Excellent Resistance to Voltage and Low Temperatur
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	Y 90
Maximum Voltage:	>100KV
Material:	PVC
Color:	Any Color
Brand:	Maxwel

Product Description

Specifications

1.PVC Insulation Tape PVC Tape Log Roll
2.Excellent Insulation, good flame retardant
3.Excellent Quality
4.Surprising Price

Feature:
Excellent insulation
Good flame retardant
Excellent resistance to voltage and low temperature

Specification:
Size: 19mm x 9.14m
Log Roll: 1250mm width, length can be cut as customers' request.
Thickness: 0.13-0.2mm
Colour: Black, red, blue, grey, yellow, etc( any color can be requested)
Adhesive: 1.5(N/cm)
Tensile: 25(N/cm)
Elongation: 200%
Temperature: 80
Voltage break dowm: ≥ 40° C

PVC Insulation Tape Wire Insulation PVC Tape Log Roll

The common exporting size is 0.19mm*0.13mm*10 yard

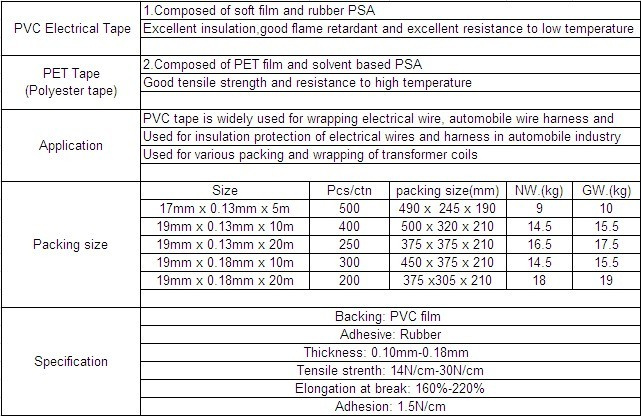

PVC Insulation Tape Data

pvc insulation tape	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature (°C)	Voltage Breakdown (KV/mm)


100D	PVC	rubber	0.1	1.5	14	160	80	≥ 40
110D	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130D	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150D	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165D	PVC	rubber	0.165	1.5	25	200	80	≥ 40
180D	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190D	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200D	PVC	rubber	0.2	1.5	30	220	80	≥ 40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥ 40
110Z	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥ 40
180Z	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200Z	PVC	rubber	0.2	1.5	30	220	80	≥ 40

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
