| Prod Model: |
vehicle gps tracker GPS103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
83*54*26mm |
| Tracker Weight: |
120g |
| Certificate: |
Ce FCC |
| Warranty Time: |
1 Year |
| APP Tracking: |
Yes Android and ISO APP Tracking |
| GPRS Communication Protocol: |
TCP/UDP Switch |
| Delivery Time: |
1-3 Working Days |
| Car Security: |
Vehicle GPS Tracker with Engine Shut off |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Product Name: |
Vehicle GPS Tracker GPS103A |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Acc Working Alarm GPS103A |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description
wholesale GPS Vehicle Tracker with Acc Working Alarm (GPS103A)Key Specifications/Special Features:This tracker is a newly product based on the GSM/GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entiret.Function description:1. Web based online tracking at our server2. View map on cell phone, PDA, view target current location on map on the cellphone and PDA with the maps link in the message from tracker3. Get location in real street/address name, send address + password to tracker, tracker will reply detailed street address, e. G. No. 113, Nantou guankou 2ND Rd, Nanshan, Shenzhen, China.4. Location based service function, get detailed position via GSM network when the tracker in the place where is no GPS signal, with direction for real time track on Google map5. Location Based Service, if the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the location via GSM network6. Remote engine-stop and resume7. Tracking function by timing and frequency8. Authorized number added and deleted function9. Supports hidden alarm and monitor function10. Geofence: Set-up a geofence for the unit to restrict its movements within a district11. The unit will send the message to the authorized numbers when it breaches the district12. Door alarm13. ACC alarm14. Movement alert15. Over speed alarm: You can make the inspected target run according to fixed speed, it alarms when speed is exceeded16. Power supply disconnection alarm17. Low battery alarm function18. Check the vehicle status19. Set up door alarms, ACC alarm, Sensor alarm by remote controlTk103 GPS locator Package content:GPS Tracker;

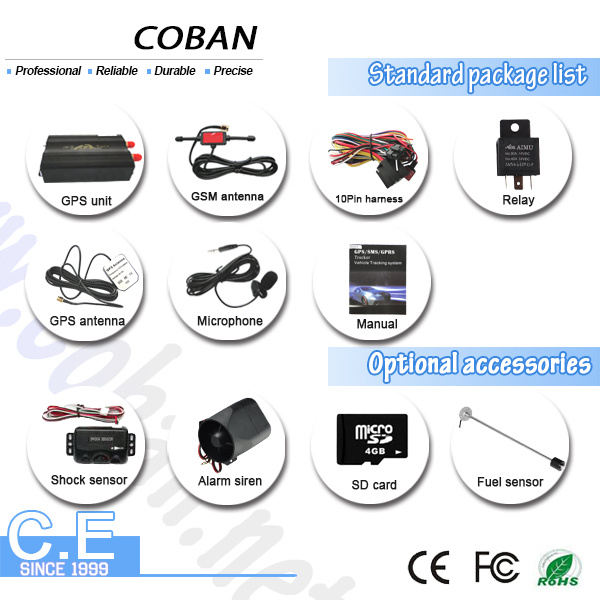

GPS Antenna(3 meters);
GSM Antenna(3 meters);
Microphone(1.5 meters);

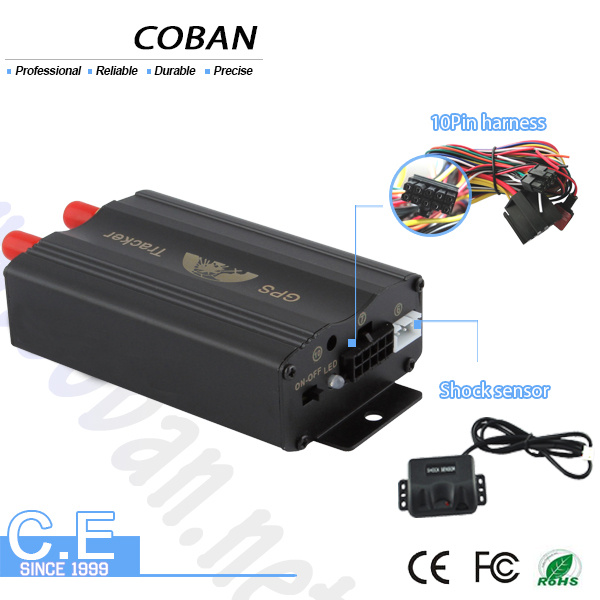

10PIN Harness;
12V/40A to 24V/40A Relay;
Software CD;
English User manual;
GPS103 optional accessories:
Shock sensor;
Alarm Siren;
SD card 2GB;
Accident alarm.
Our advantage:1. We are the manufacturer/factory that developing and producing GPS trackers
2. Lowest factory price with high quality
3. Product warranty time: 1 year
4. Support our Free PC tracking software and Web server software
FAQ - Frequently Asked QuestionsHow do I make sense of the longitude and latitude data this unit provides?Both Google Maps and Google Earth can easily translate the data into usable visual information.The unit does not pick up a GSM signal and the SMS functions aren't working,What's wrong? A number of things could cause this to happen:1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work2) Make sure there is money left on the SIM card and that it has not expired3) Make sure there is no PIN code associated with the SIM card4) Make sure roaming is enabled on your SIM account if you are in a different countryCan I install the software on multiple computers?No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.Ordering from Shenzhen Coban Electronics Co, . Ltd provides you with the following benefits:- Orders processed and shipped within 24-hours- 12 month warranty- In-house QC- Member discounts- Award winning customer support- Quantity order discounts- Worldwide Shipping
specification| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
| | |
Real time track on cell phone by APP

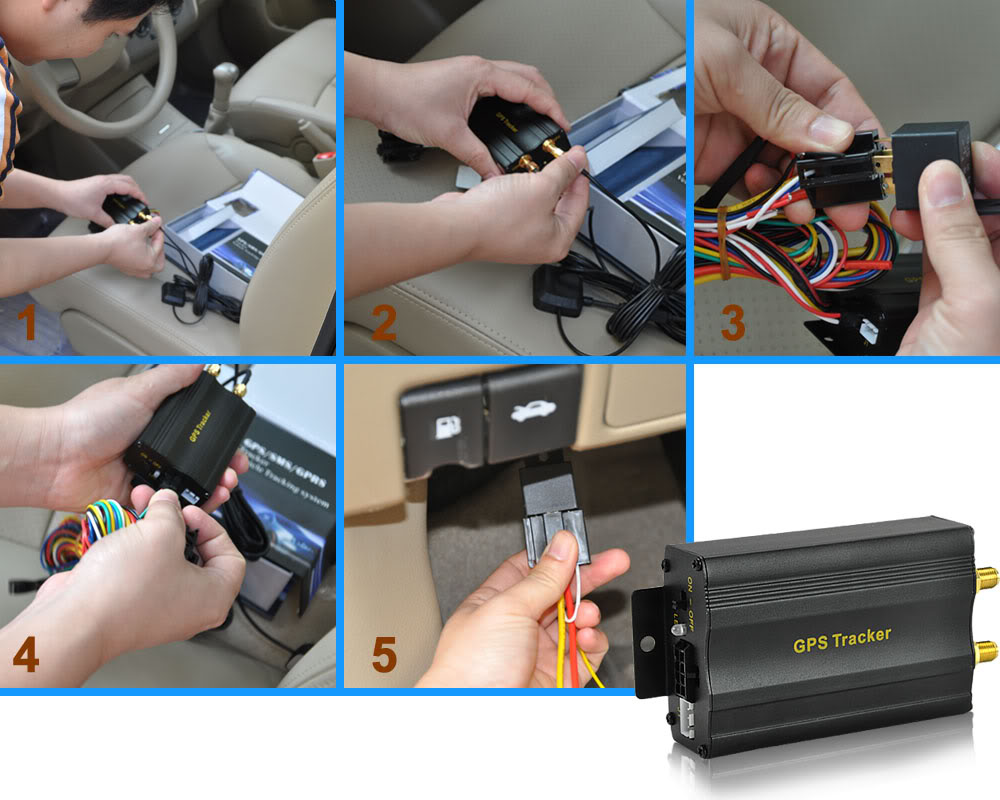

GPS103 installation
