| Prod Model: |
MJ-FR4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
480X980mm |
| Lead Time: |
7-10days |
| Sample: |
Can Be Provided. |
| Thickness: |
0.4-55mm |
| Sheet Specification: |
1220*1020/1230*2040mm |
| Application: |
Generator |
| Type: |
Insulation Sheet |
| Chemistry: |
Organic Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
B 130 |
| Maximum Voltage: |
>100KV |
| Brand: |
Mj |
Product Description

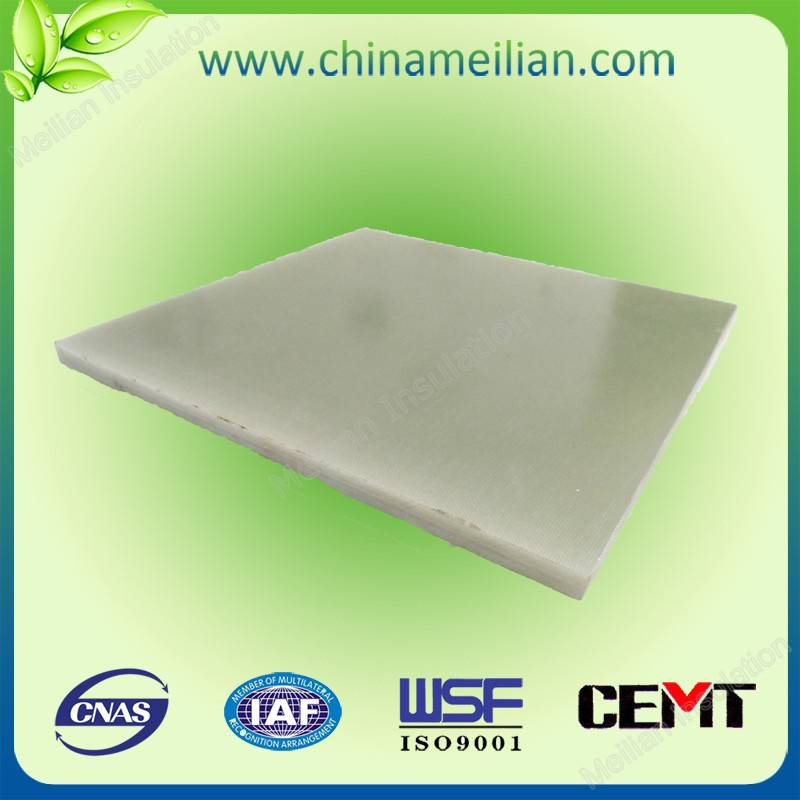

FR4 Insularion laminate sheetAppearance:
Natural color Green, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation
Features:
Can be processed into high temperatue insulating structural parts installed in a variety of motors and electrical equipmenst, or processed into motor slot wedges, standard and non-standard shaped parts
Application:
Excellent mechanical & electric property
Good heat & moisture resistance

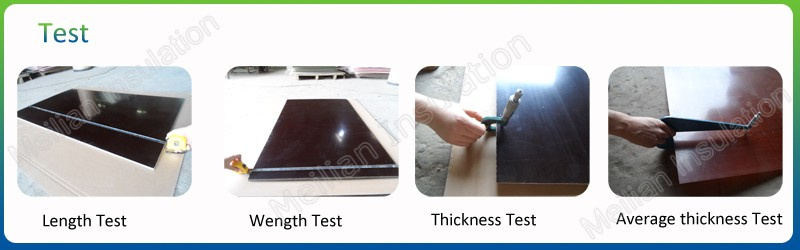

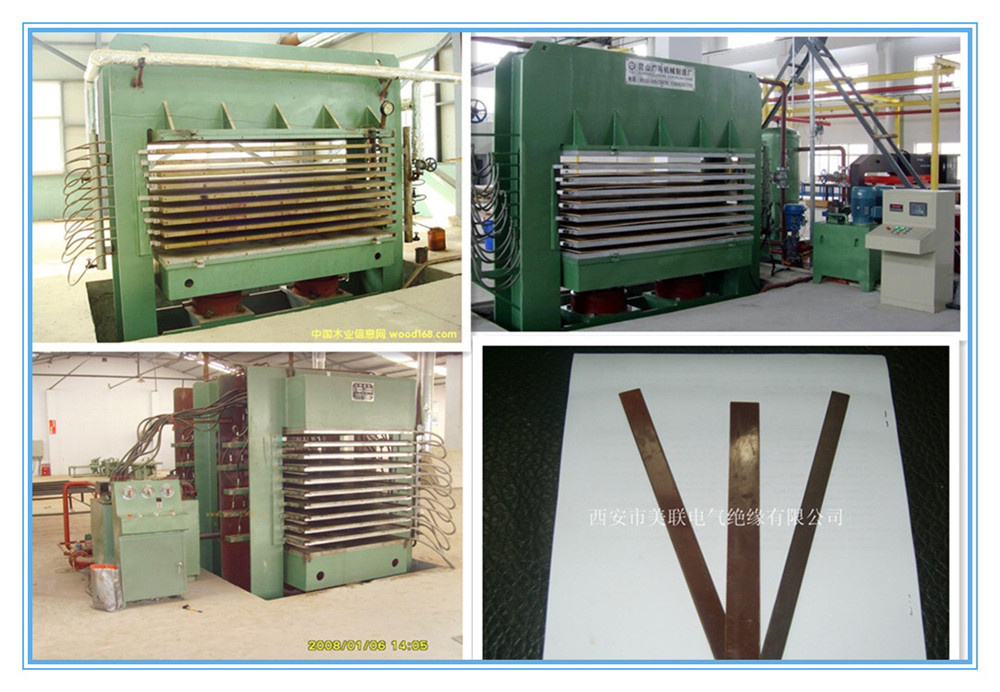

Easy for processing & machining | Basic information |
| Product name | Epoxy Fiberglass Insulation Laminate |
| Item No. | MJ-FR4 |
| Brand | MJ |
| Material | Epoxy resin and Alkali free fiberglass cloth |
| Grade | Grade B |
| Technical Performance |
| Density | ≥1.7g/cm 3 |
| Sheets Thickness | 0.1-50mm |
| Size | ≥1220x980mm |
| Formation methods | High temperature and high pressure |
| Thermal stability in 24h | ≥200' |
| Water absorption | ≤6.5mg |
| Flexural strength perpendicular to lamination | ≥473 Mpa |
| Impact strength | ≥66.3 KJ/m 2 |
| Dielectric strength perpendicular to laminations (in 90±2°C transformer oil,1mm in thickness) | ≥10.7 MV/m |
| Breakdown voltage parallel to laminations (in 90±2°C transformer oil) | ≥54.6 KV |
| Insulation resistance after impregnated in water | ≥1.5*10 13 Ω |
| Dielectric constant (1MHz) | 5.14 |
| Combustibility | HB Class |
| Reference Standard | GB/T1303.1-1998 |
