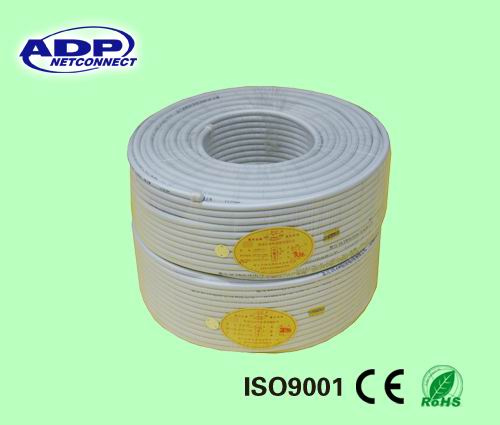

Wholesale Price Coaxial Cable Rg59

Name: Wholesale Price Coaxial Cable Rg59
Brand: all-electronics-online.com
SKU: 794559115
Availability: InStock
Rating: 4.9 (22 reviews)

Price:	US $ 0.01-0.05/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

1st Shield:	Al Foil
2ND Shield:	Braided Shield
Insulation Material:	PE
Jacket Material:	PVC
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	CCC
Type:	Coaxial Cable

Product Description

product description

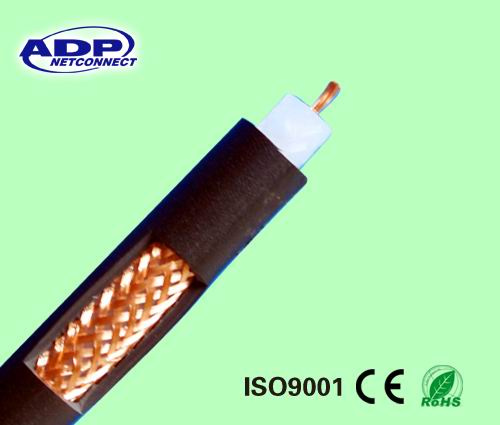

Rg59:0.81CU/CCS+3.7FPE+AL BRAIDING(40%/60%/90%)+6.0PVC

1) Construction

Center Conductor:

0.81±0.01mm Solid Bare Copper/Copper Clad Steel

Dielectric:

3.66±0.05mm Foam PE

Shield:

Bonded Al Foil

Braid Coverage:

Al Brading (40%/60%90%)

Jacket:

6.00±0.05mm PVC

CE/RoHS/UL:

Per Customer' Special Requirement

Jelly:

Per Customer' Special Requirement

2) Characteristics

Sparker Test:

4000VAC

Impedance:

75±3 Ohm

Capacitance:

50±3pF/m

Velocity of Propagation:

85%

Return Loss:

20dB min (5-2250MHz)

3) Attenuation

Attenuation

[@68o F. (20o C.)]

Frequency (MHz)

Maximum (dB/100 ft.)

Maximum (dB/100 m)

0.86

2.82

2.05

6.73

187

3.60

11.81

300

4.45

14.60

450

5.40

17.72

600

6.20

20.34

750

6.97

22.87

865

7.52

24.67

1000

8.12

26.64

With years of export experience along with excellent quality, advanced services and competitive prices,ADP has won numerous customers' trust and support,Welcome to visit .

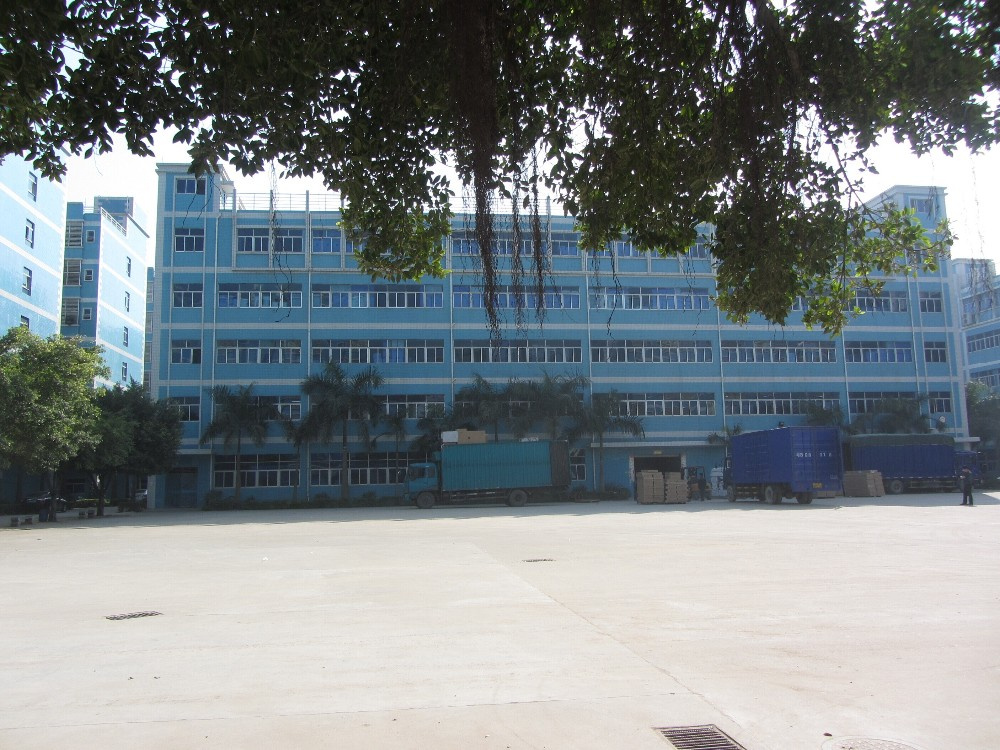

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
