| Prod Model: |
heating element coil heater |
| Weight: |
0.1kgs or Customized |
| Voltage: |
110-240V / 50-60Hz |
| Power(W): |
450W |
| Working Temperature: |
≤800ºC |
| Length: |
≤1900mm or Customized |
| Insulation Material: |
Glass Fiber/Metal Braided She |
| Section Of Wire: |
3X3, 4.2X2.2, 4X2, 4.5, 3.5 |
| Electric Wire: |
Nicr8020 |
| Max Temperature: |
650ºC |
Product Description

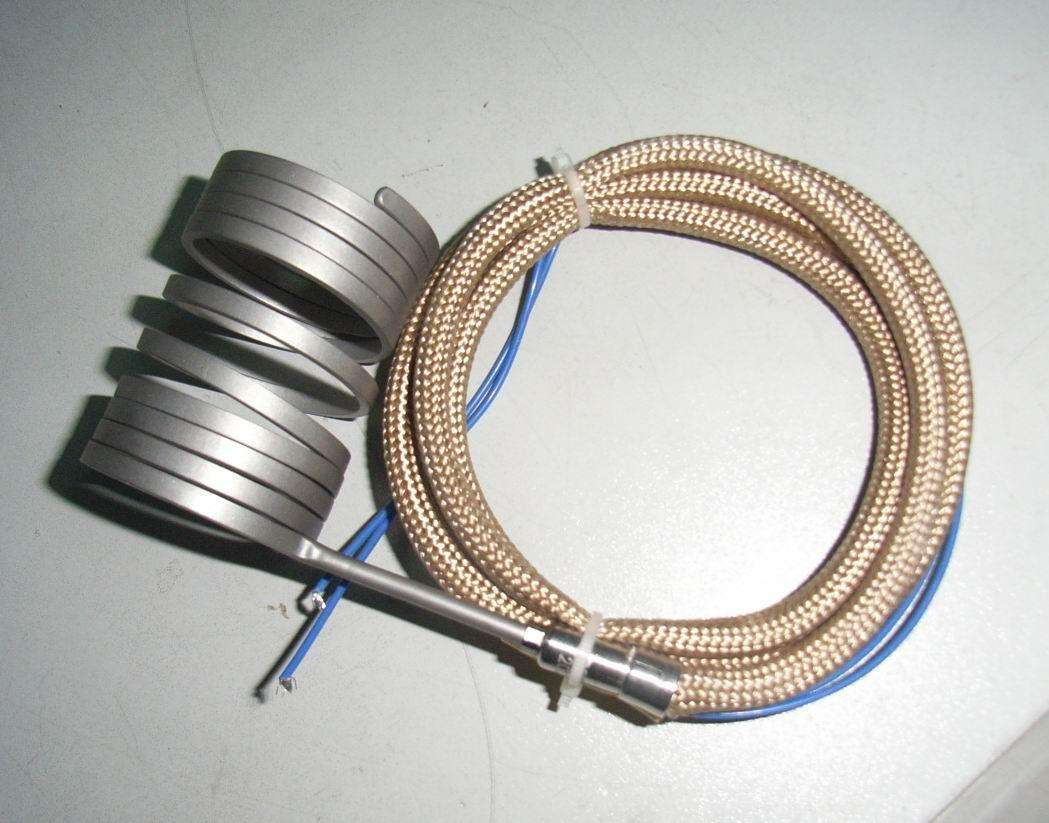

wholesale Professional Electronic hot runner heater coil heater heating element
Description
Hesite Hot sell electric nozzle element for industry Hot Runner coil heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters,our production length in 400-3000mm is mainly used for hot runner mold ,as well as other precision heating system.nozzle heater external using high quality Ni-Cr steel tube,it has glass fiber package which can prevent leakage,its usage mainly inpackaging machineries,PET prefrom & Thin wall container Moulds ,the external use of high purity magnesium oxide, hightemperture resistance wire, and first-class manufacturing technology.These Heaters can be constructed with or without built in thermocouples. Its high working temperature ,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction,while internal heating material damage,external can reuse.
Features:
Voltage and power according to your requirement
Building in the thermocouple according to your requirement
specification:
| Name of product | electric nozzle element |
| Inner Diameter of coiled heater | 8-100mm(+0.05mm) |
| Coil style Length | 15-400mm(+0.05mm) |
| Staright style length | 400-3000mm(0.5mm) |
| Cross-section | Round Dia:1.8mm;3.7mm;4.2mm Square:3.2×3.2mm;3.6×3.6mm; Rectangular:1.5×2.1mm;2.2×4.2mm;2.3×4.3;4×6mm; |
| Tube Material | SUS304/SUS316 |
| Power | According to your requirement |
| Insulation | High purity MGO |
| Inner heating element | NiCr8020 |
| Voltage | 12v;24v;110v;220v;240v;380v |
| Wattage | 100-1500W(5w/cm2) +5% -10% |
| Max temperature | 650ºC |
| Built-in thermocouple | With or without J/K TC(Available) |
| Service | ODM/OEM |
Applications
---Hot runner nozzles&Bushings
---Injection moulding machine nozzle
---Packaging Machinery
---Injection &Blow Moulding Machine nozzles
---Hot runner Mainfolds
---PET perfrom &Thin wall container Moulds
---Other electricc heating industry
Technical datasheet
| Sheath of coil heater | SUS304 |
| Insulation of coil heater | Compacted magnesium Oxide |
| Heating conductor | NiCr8020 |
| Thermocouple | K type, J type (optional) |
| Leads | Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand) |
| Voltage | 24V to 415V |
| Temperature resistance | Max 800 cent degree |
Specification
| Model | Dimension (mm) | Voltage (V) | Power(W) |
| JYJRB- Ø45X50 | Ø15X80 | 220 | 1000 |
| JYJRB- Ø22X160 | Ø20X155 | 230 | 1200 |
| JYJRB- Ø40X40 | Ø16X200 | 220 | 400 |
| JYJRB- Ø30X50 | Ø20X200 | 220 | 400 |

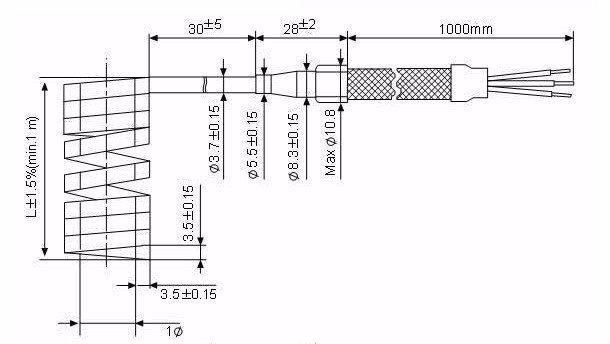

Drawing

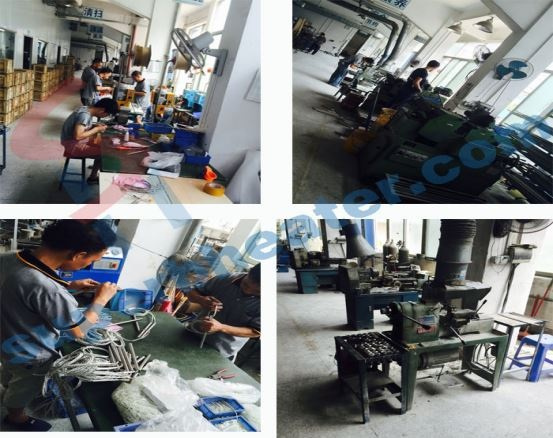

our workshop
Superb Heater Technology has been focused on the production of
wholesale Professional Electronic hot runner heater coil heater heating element since 1985, which is well-known as one of the leading manufacturers and suppliers of tubular heaters 12 stations rolling mill reducing shrinking machines. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
