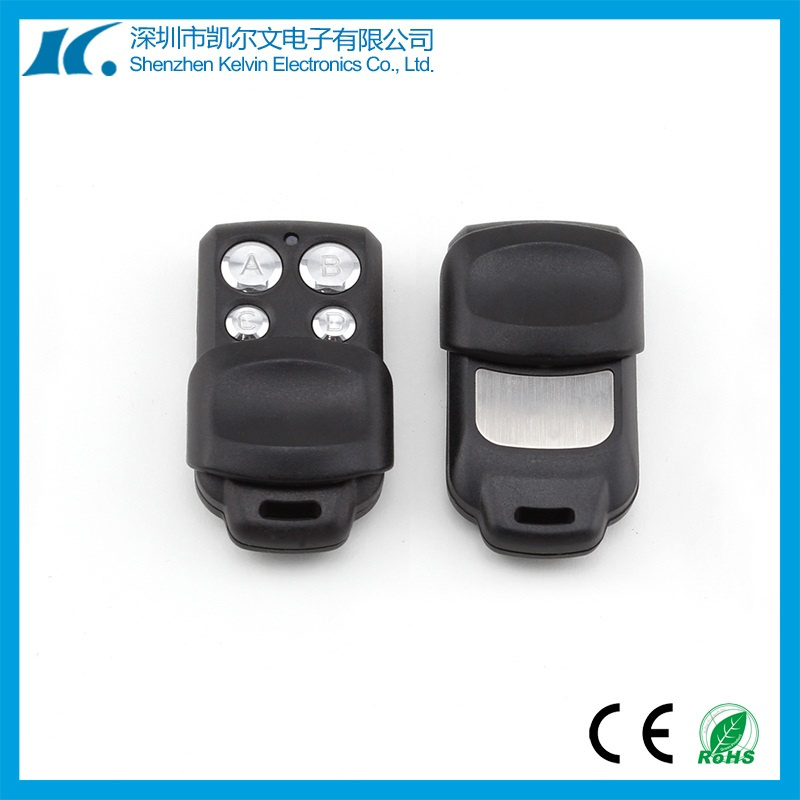

Wholesales 4 Key Fob RF Universal Remote Control Duplicator Kl220-4K

Prod Model:	KL220-4K
Model Name:	Kl220-4K
Buttons Sum:	4
Operating Voltage:	DC 12V
Operating Current:	11mA
Operating Frequency:	315MHz / 433.92MHz / Customized
Modulation Way:	Ask
Ambient Temperature:	-20ºC ~ +50ºC
Color:	Black
Use:	Cars, Garage Doors , Gates Doors, Alarm Systems Et
Dimension:	62*34*16mm
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

Wholesales 4 Key fob rf Universal Remote Control Duplicator KL220-4K

Technical Parameter
This product can be used in Garage door control, Lighting Control, Remote curtain,other wireless products etc.
Easily to install and use

Working voltage	DC12V
Operating current	12mA
Copy	fixed code ,learning code
Transmitting distance	100 m
Frequency	315mhz,433mhz customized
Weight	21g
Operating temperature	-20'C-50'C
Button	2, 4
Size	62*34*16mm



Shipping
1) Express: DHL, FedEx, UPS, TNT, EMS
2) By air
3) By sea
4) By special line
Depends on buyer's requirement

Methods of operation
1, Clear out code:
Press A and B at the same time, two seconds later, LED  flashes three times, followed by a continuous fast blinking. Indicates that the remote control code stored was deleted.

2, Duplicating (learning)
Right Hands press original remote control A, and left hand press remote control duplicator A', 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A',B-B') three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. That's mean successfully copied.

3, Recovery code
Press A and C at same time , 3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.
The other way, you can delete all and relearn them again.
