Wide Format IC Flexo CTP Platesetter
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
EcooSetter FL-800S |
| Size: |
1630*1170*965 |
| Imaging System(Channel): |
32CH |
| Output Speed: |
2.5sqm/H |
| Plate Size: |
762X635 mm |
| Usage: |
Offset Printing |
| Plate: |
Lithography Printing |
| Type: |
CTP Plate Making Machine |
| Light Source: |
Semiconductor Laser |
Product Description

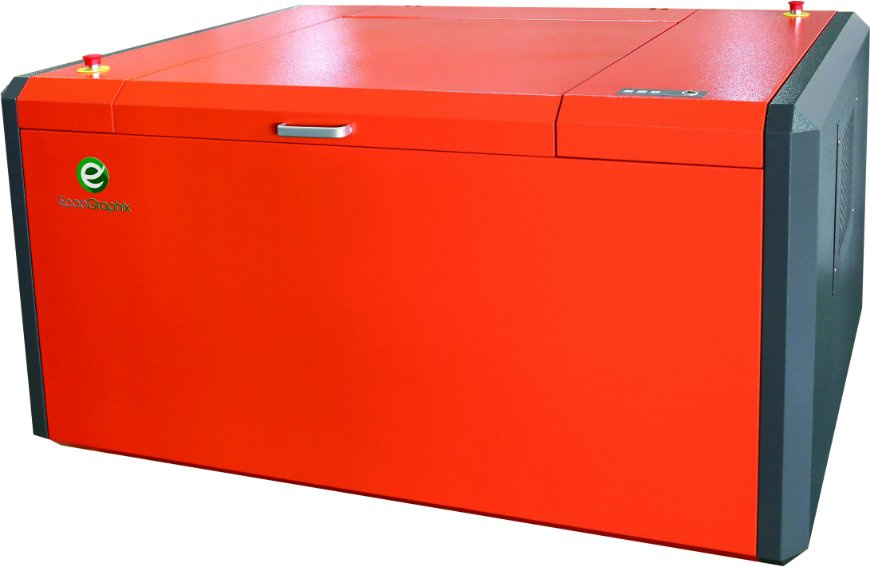

Ecoographix Flexo FL-800s CTP Machine for Label and Trademark Printing
Feature&Specfications:
EcooSetter Flexo FL-800S CTP
Laser Channel: 32-channel
Output Speed: 2.5 square metre/h
Max. Breadth: 30" x 25"/ 762mm x 635mm
Plate Thickness: 0.7mm - 1.7mm
Laser Power: High power semiconductor laser diode
Plate Type: Digital relief flexo plate (water-wash), Digital flexo plate (water-wash), Digital flexo plate (Solvent-wash) Steel based digital plates (water/ alcohol washable) are applied for EM/ SM series
Application: Label and trademark
Resolutions: 4000dpi
Plate Loading: Manual load and unload
Interface: USB2.0
Focus adjust: Dynamic auto-focus
Device Size: 1630x1170x965mm (WxDxH)
Net Weight: 800Kg
Power: 220V/50Hz, 60Hz, mainframe 1.5KW + Vacuum 1.1KW
Environment: Recommended temperature: 18-30ºC Humidity: 10-80% | EcooSetter Flexo CTP Series Technical Specifications |
| Model | EcooSetter | EcooSetter | EcooSetter | EcooSetter | EcooSetter | EcooSetter | EcooSetter |
| FL-400E | FL-600E | FL-600S | FL-800E | FL-800S | FL- 1500E (TBA) | FL-1500S (TBA) |
| Laser Channel | 16CH | 16CH | 32CH | 16CH | 32CH | 32CH | 64CH |
| Output Speed | 1.25 m2/h | 1.25 m2/h | 2.5 m2/h | 1.25 m2 /h | 2.5 m2 /h | 4.3m2 /h | 8.5 m2/h |
| Max.Breadth | 17" x 12"/ 430mm x 330mm | 26'' x 17''/ 680mm x430mm | 25"x30"/635mmx762mm | 47"×60"/1200mm×1524mm |
| Min. Breadth | | 100mmx100mm |
| Plate Type | Digital relief flexo plate(water-wash) ,digital flexo plate(solvent-wash),steel based digital plate(water/alcohol washable) are applied for EM/SM series |
| Plate Thickness | 0.7mm - 1.7mm | 0.9mm-3.94mm |
| Application | | Label and trademark | Paper box and soft packaging |
| Resolutions | | 4000dpi , optional:3000dpi or 2400dpi |
| Plate Loading | | Manual load and unload |
| Interface | | USB2.0 |
| Focus Adjust | | Dynamic autofocus |
| Laser Lifetime | | >10000h |
Device Size (WxDxH)mm | 830X630X1056 | 1087x770x1000 | 1,630×1,170×965 | 2,315×1,370×1,052 |
| Net Weight | 280KG | 400KG | 800KG | 1200KG |
| Power | Single phase: 220V/50HZ, 60HZ/1.5KW | Single phase: 220V/50HZ, 60HZ/3KW | Single phase: 200V/50HZ, 60HZ/4.5KW |
| Environment | | Recommended temperature: 18-30ºC Hu m i dity: 10%- 80% |



EcooGraphix., also known as Konita Digital, is a leading digital Pre-Press solution provider who places great emphasis on research and development, systems integration and technical support. EcooGraphix supplies customers worldwide with integrated solutions that include Pre-press machines: Thermal CTP and UV CTP Imaging Equipment, Printing Plates and Consumables and also some Post-press machines: Perfect Binder, Carton Erecting and Die cutter, with Technical Service Support.
Our Vision is to become an international market leader within the Pre-Press and Printing Industry.
Through Professionalism, Innovation, Efficiency and Superior Products we hope to achieve this goal.
EcooGraphix Thermal CTP and UV CTP Machines have gained a reputation for high quality engineering and reliability, incorporating market leading design features.
EcooGraphix Thermal CTP and UV CTP Printing Plates are regarded as being one of the world's top brands for quality and consistency.
EcooGraphix has established international partnerships of reliable Agents with technical ability. Significant successes have been achieved in countries such as the USA, Canada, Mexico, Chile, UK, Hungary, Turkey, South Africa, Greater Africa and China. With an average annual growth of 50% in the last three years, EcooGraphix is quickly gaining international market share and recognition.
EcooGraphix has teams of internationally experienced technical experts and professionals drawn from the Printing Industry. We can offer tailored solutions to Commercial, Packaging and Newspaper Printers as well as Output Centres with non-stop technical and consulting support.
With a deep and profound knowledge of both the China and International Printing Industries, EcooGraphix is well positioned to become the supplier of choice for quality Pre-Press and Post-press Products to the Printing Industry worldwide.
