| Prod Model: |
SCTK667B |
| Bobbin: |
PBT |
| Frequency: |
50-2.5kHz |
| Case Material: |
ABS |
| Construction: |
Tie |
| Core Type: |
Split |
| Export Market: |
Global |
| Quality: |
AAA |
| Application: |
Power |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Brand: |
Chana |
Product Description
1)Application
Current measurement, monitoring and protection for electrical wiring and
equipment. Current and power measurement for electric mo tors, lighting,
air compressor, heating and ventilation system, air-condition equipment
and automation control system.Current ,power and energymonitoring device.
2)Feature
The structure of the self-locking, safe, easy to install, portable Wide inner
window, allowing clamping of big cables or - bus bars Wide range of sizes
to accommodate all the existing installations.

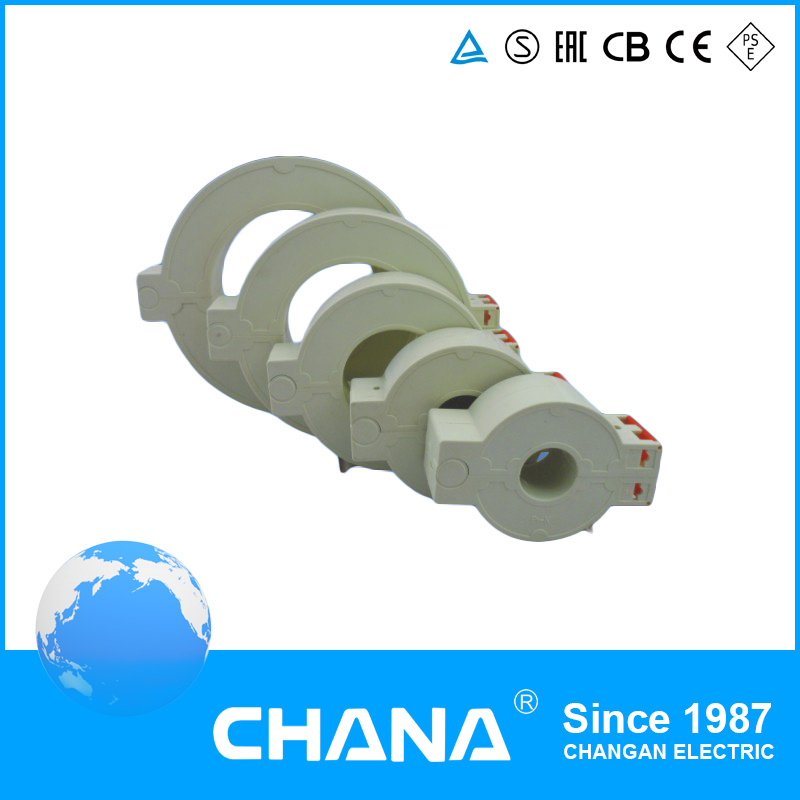

SCTK667B series retro-fit (split-core) current transformer has been specially
designed to facilitate their installation in new or already existing net works.They
may be installed without opening any cable or bus-bar circuit. An internal
precision resistor across the secondary winding of the CT provides a low safe
voltage output. It can save time and the installation costs.
Technique Index
| Frequency | 50-400khz |
| Rated Input | 5-3000A |
| Measuring range | 5%in-130%in |
| Rated Output | 0-10V |
| Ratio | 0.1% |
| Dielectric strength | 3kv/1mA/1min |
| Case | PC |
| Bobbin | PBT |
| Core | Silicon steel |
| Internal sturcture | Epoxy |
| Construction | Tie |
| Output Connection | terminal |
