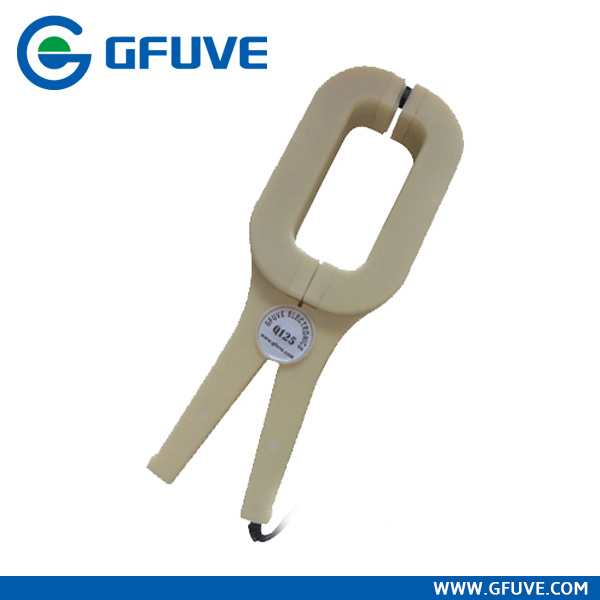

Wide Range Current Clamp Transformer

Name: Wide Range Current Clamp Transformer
Brand: all-electronics-online.com
SKU: 672683131
Availability: InStock
Rating: 4.4 (29 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Q125:	3000A Current Clamp Transformer
Operating Temperature:	-20~55
Measuring Current Range:	0~3000A
Dimensions:	116mm290mm36mm
Weight:	480g
Primary Current:	0~3000A
Secondary Current:	0-5A
Precision:	Class 0.1%, 0.2%, 0.5%

Product Description

3000A Current Clamp transformer wide range current Clamp transformer, clamp on current transformer, with excellent working performance, favorable price and fast delivery

Characteristic and application: 3000A current clamp transducer can be used for a current vector for the copper bar or the power LvPai on-line detection.
But holding wire diameter: 120mm*50mm
Dimension: 116mm× 290mm× 36mm

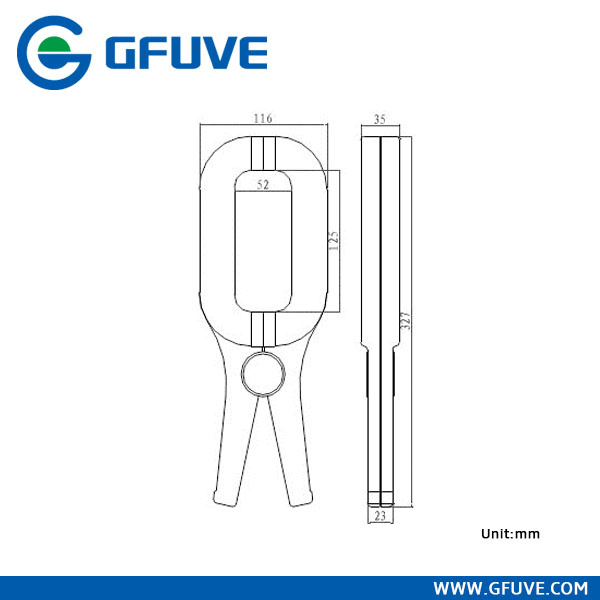

(View outline drawing)
With load capacity: Ma OUTPUT ≤ 4Ω
1A OUTPUT 0.1Ω , 5A OUTPUT 2.5VA
Installation: Clamp type
Output mode: Lead output

Primary current	Secondary current	Precision
180A ~ 1000A	30mA	Class 0.5%
1000A ~ 2000A	250mA	Class 0.1%, 0.2%, 0.5%
1000A ~ 3000A	500mA	Class 0.1%, 0.2%, 0.5%
300A ~ 1000A	1A	Class 0.2%, 0.5%
1000A ~ 3000A	1A	Class 0.1%, 0.2%, 0.5%
300A ~ 1000A	5A	Class 0.5%
1000A ~ 3000A	5A	Class 0.2%, 0.5%

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
