Wide Range Input 100-240VAC to DC 12V 1.3A Switching Power Supply HSC-15-12 Ce RoHS ERP

Name: Wide Range Input 100-240VAC to DC 12V 1.3A Switching Power Supply HSC-15-12 Ce RoHS ERP
Brand: all-electronics-online.com
SKU: 825221065
Availability: InStock
Rating: 4.8 (107 reviews)

Price:	US $ 3.52-3.9/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSC-15-12
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	85~264 VAC
Brand:	Dhecn

Product Description

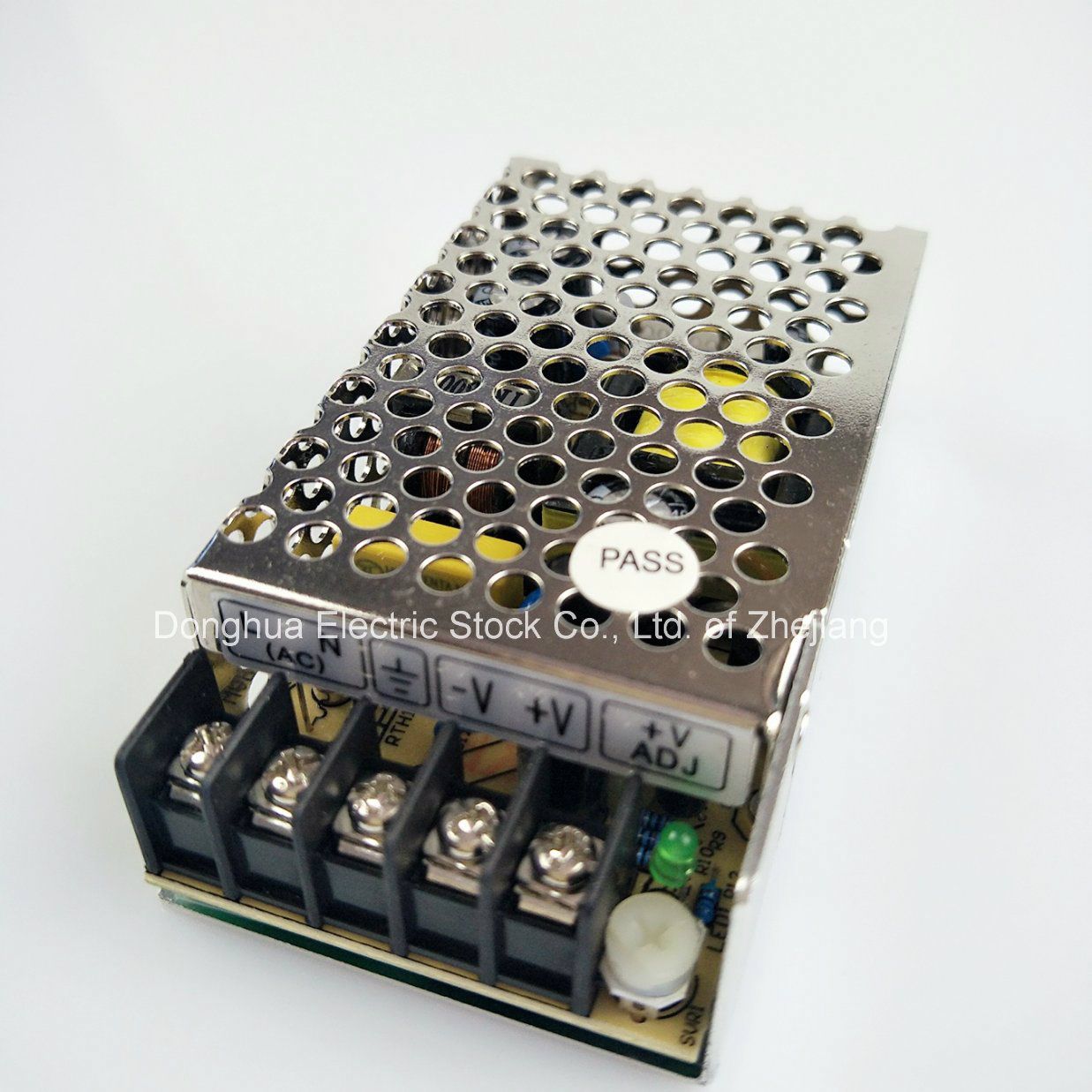

HSC-15 Single Output Power Supply 15W 12VDC 1.3A

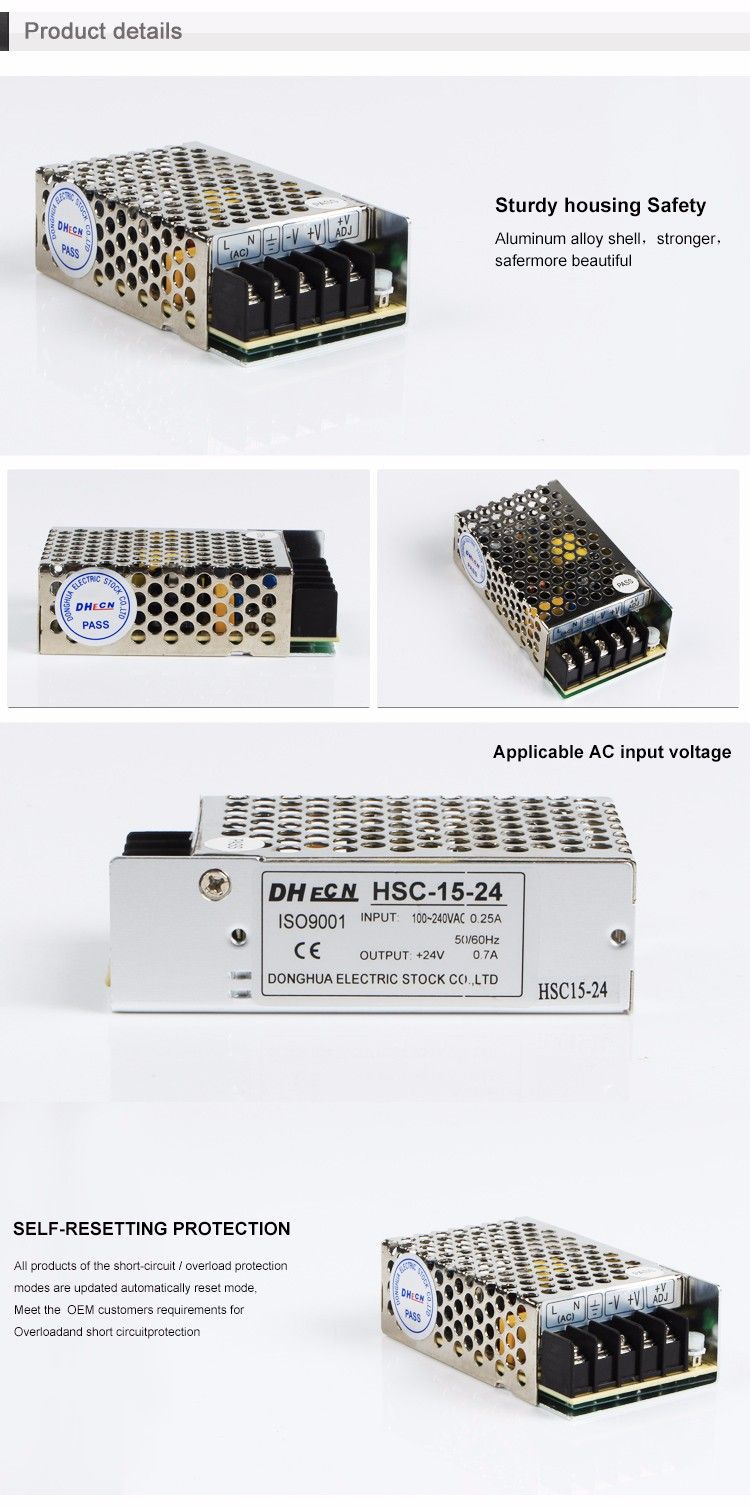

Features:
High effectiency,High reliability, small size
Protections: Short circuit/Over load
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
1 year warranty

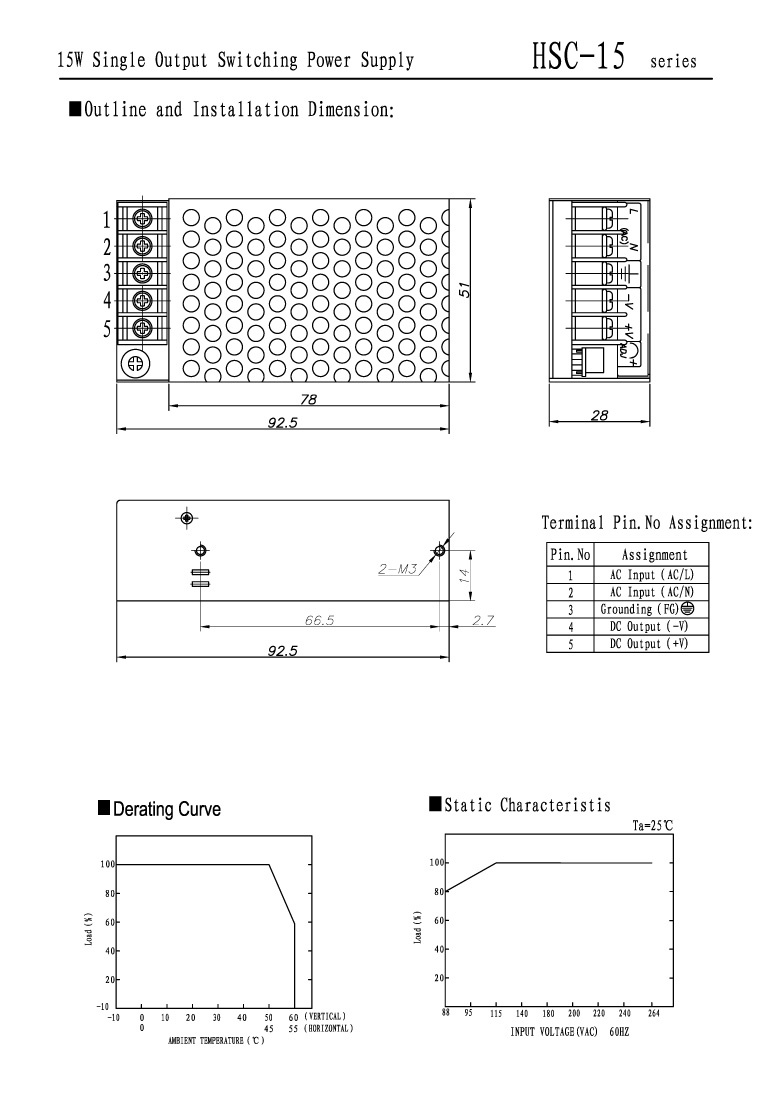

Dimensions:92.5×51×28mm(L*W*H)

MODEL		HSC-15-5	HSC-15-12	HSC-15-24
OUTPUT	DC VOLTAGE	5V	12V	24V
	VOLTAGE TOLERANCE	±1%	±1%	±1%
	RATED CURRENT	3A	1.3A	0.7A
	CURRENT RANGE	0-3A	0-1.3A	0-0.7A
	RATED POWER	15.0W	15.6W	16.8W
	Ripple & Noise	80mVp-p	100mVp-p	150mVp-p
	Voltage adj.range	-5%~+10%	±10%	±10%
	Setup, Rise, Hold time	200ms,100ms,30ms at full load
INPUT	VOLTAGE RANGE	85~264VAC 47~63Hz, 248~370VDC
	AC CURRENT	0.25A/ 230 V
	Efficiency	75%	80%	82%
	INRUSH CURRENT	Cold start current35A/230VAC
	LEAKAGE CURRENT	<0.5 mA/240VAC
PROTECTION	OVER LOAD	110%~160%
		Protection:Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.HUMIDITY	-10ºC~+60ºC; 20%~90 %RH
	STORAGE TEMP.HUMIDITY	-20ºC~+85ºC; 10%~95 %RH
	VIBRATION	10~500Hz,2G 10min./1cycle,period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Standard	SAFETY STANDARDS	EN60950-1
	EMC Standard	EN55022, EN61000-3-2,-3,EN61000-4-2.3.4.5.6.8.11,EN61000-6-2
OTHERS	Weight	0.13Kg
	PACKING	98pcs/14.8Kg/0.99CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ &47μ parallel capacitor. 3.Tolerance: includes set up tolerance,voltage regulation and current regulation

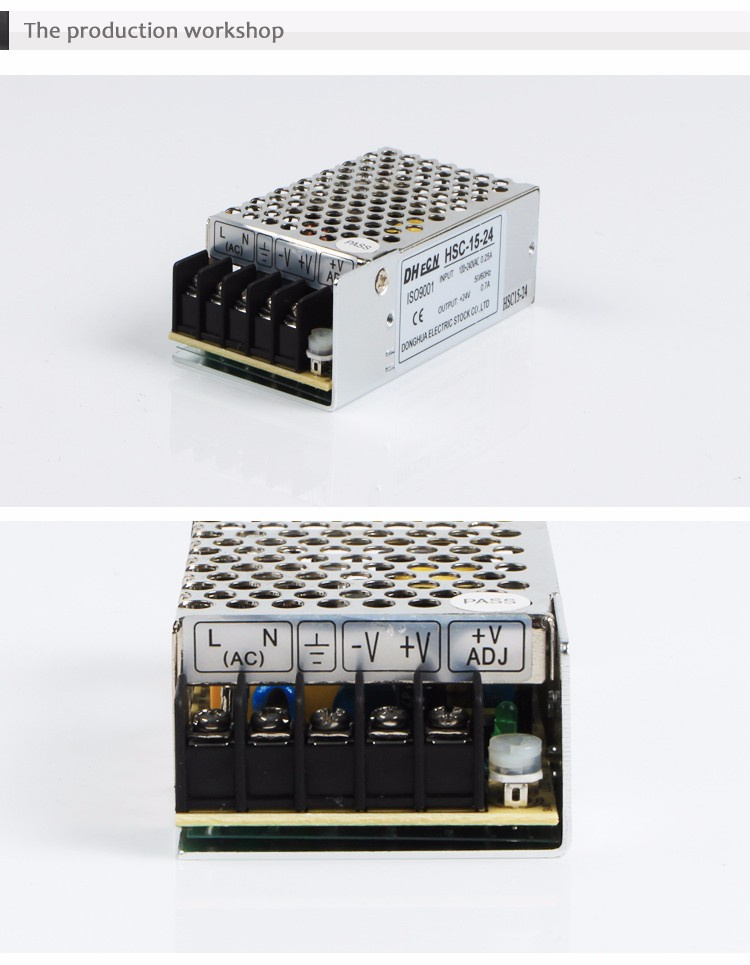

HSC-15, Output 15W, 5VDC, 12VDC, 24VDC can be offered.

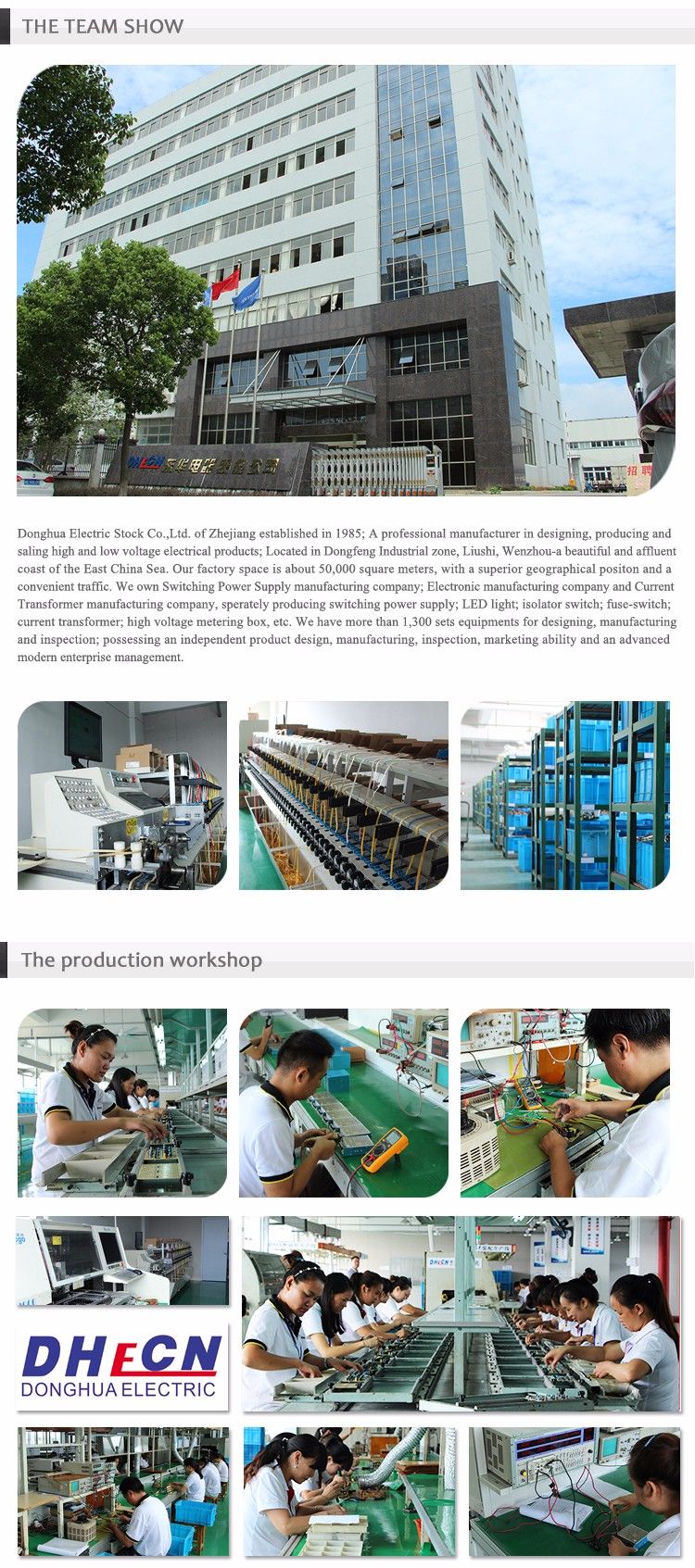

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.

To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.

Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.

Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
