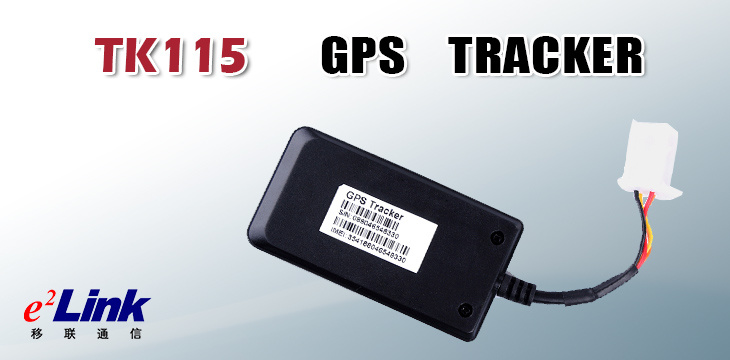

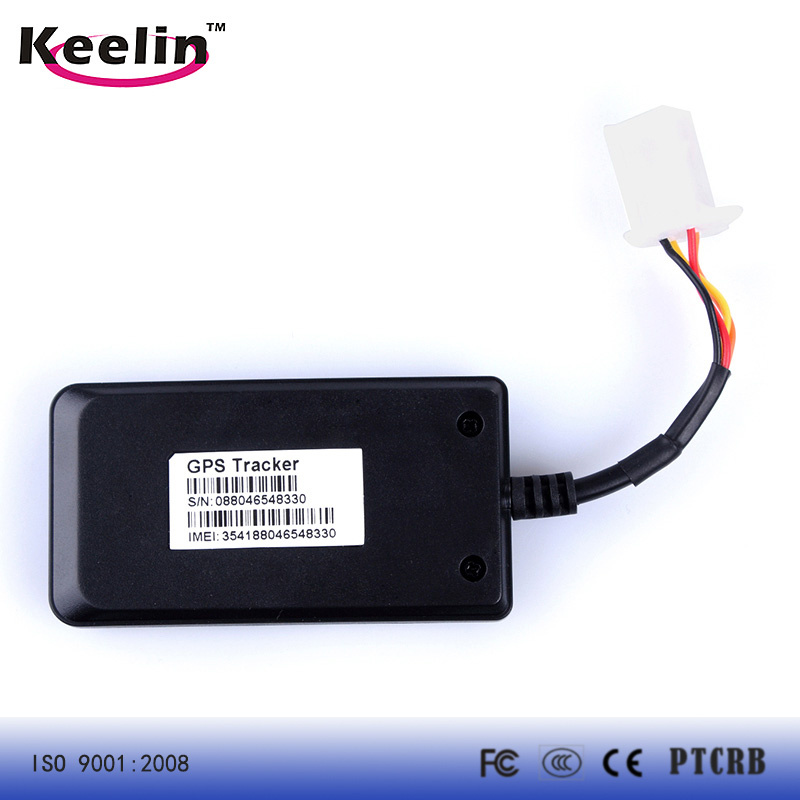

| Prod Model: |
TK115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk115 |
| Color: |
Black |
| Weight: |
42g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/48VDC/60VDC |
Product Description
Product Features
1.Supports quad bands,i.e. 850/900/1800/1900MHz,universal in the world.
2.Wide Input Voltage:9-60V DC.
3.GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
4.Web browser platform, Smart phone app platform and SMS query.
5.Supports multiple alarm,acceleration sensor can be added (B models, optional component),so as increase vibration, collision and falling alarm.
6.Supports ACC status checking and vehicle status notifying.
7.Use relay to remotely control the vehicle.
8.GPRS remote upgrade program.
9.Mini size, easy to hide and install
10.OEM and ODM orders are welcome
ALARM TYPE:
1.Vibration Alarm(Optional)
2.Collision / falling Alarm(Optional)
3. Speed Alarm
4.Geo-fence Alarm
Basic parameters
| Voltage: | 12VDC/24VDC/48VDC/60VDC |
| Standby Current: | <10mA@12V |
| Work current: | <30mA@12V |
| GPS positioning accuracy: | 15m |
| GSM positioning accuracy: | 100m |
| GPS Frequency: | 1575MHz |
| GSM Frequency: | 850/900/1800/1900MHz |
| Hot/warm/cold start time: | <3s,<15s,<60s |
| Dimensions (mm): | 71.8(L)X38.5(W)X10.5(H) |
| Operating temperature: | -20ºC~70ºC |
| Operating humidity: | 20%~80%RH |
| Net Weight: | 42 g |
Our solutions
Shenzhen Eelink Communication Technology Co. Ltd aims at win- win cooperation and provides complete tracking solutions according to different clients' requirements.
1.Brand Agent of Keelin, use Keelin platform and App.
2.OEM Cooperation. we offer our products and neutral platform to customers,or we only offer products and provide protocol for customer's platform research.
3.Research and customization. We could cooperate with customers based on their different requirement in terms of large production.

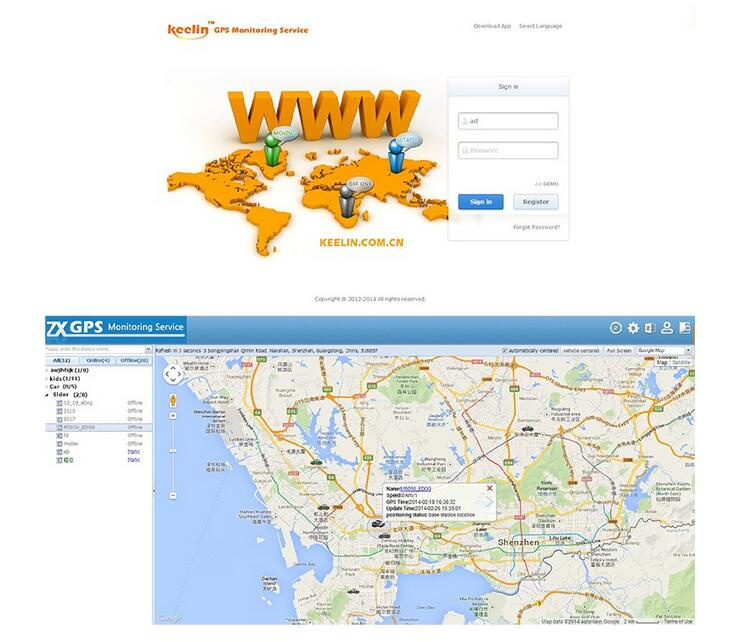

4.Technical Solutions for different industries. PS Tracker Operating PrincipleThere installed Satellite Receiver module and mobile phone module. GPS precise positioning with A-GPS and feedback position to the platform via GPRS at setting times(e. G. Every 30s). It shows the precise position of the device on the map of platform. We need GPRS to transmit data, so the mobile phone with SIM card need the GPRS function.PlatefromYou can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, real time tracking and playback on the platform server.
DeliverySample and mini order will be delivered within 1-2 working days after the receipt of payment.For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.WarrantyAll products have been strictly Quality Checked in house before packing.All products have been well packed before shipping.One year warranty is provided for all models. We will bear maintenance cost during warranty.
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
