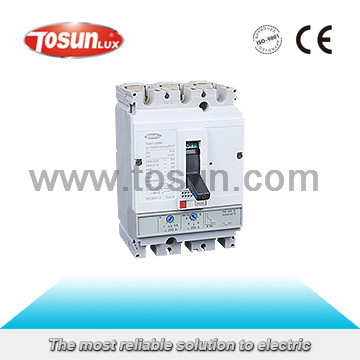

Widely Used Moulded Case Circuit Breaker with CE
| Price: |
US $ 10-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
TSM1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Insulation Voltage Ui(V): |
750V |
| Structure: |
MCCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
3 |
| Certification: |
CB |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Arc-extinguishing Medium: |
Air |
| Speed: |
High-Speed Circuit Breaker |
Product Description
ApplicationTSM1 Moulded Case Circuit Breaker is one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 1600A. Its rated insulation voltage is 690V. It can make and break the non-frequent circuit in the normal conditions. It takes protect effect when squirrel-cage motors non-frequent start, breaking off working and protecting overloads, short circuit and lacking voltage. It complies with IEC60947-2.Specification
Type | Rated Current (A) | Number of Phase | Rated Insulating Voltage (V) | Rated Ultimate Short Circuit Breaking Capacit lcs at380/415V (kA) | Rated Service Short Circui Breaking Capacity lcs at380/415V (kA) | Operating Performance (times) |
ON | OFF |
TSM1-100N | 12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100 | 3, 4 | 750 | 25 | 25 | 1500 | 8500 |
TSM1-100H | 70 | 70 |
TSM1-100L | 150 | 150 |
TSM1-160N | 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160 | 36 | 36 | 1000 | 7000 |
TSM1-160H | 70 | 70 |
TSM1-160L | 150 | 150 |
TSM1-250N | 160, 180, 200, 225, 250 | 36 | 36 | 1000 | 7000 |
TSM1-250H | 70 | 70 |
TSM1-250L | 150 | 150 |
TSM1-400N | 315, 350, 400 | 45 | 45 | 1000 | 4000 |
TSM1-400H | 70 | 70 |
TSM1-400L | 150 | 150 |
TSM1-630N | 400, 500, 630 | 45 | 45 | 1000 | 4000 |
TSM1-630H | 70 | 70 |
TSM1-630L | 150 | 150 |
TSM1-1250N | 800, 1000, 1250 |
| 50 | 37.5 | 1000 | 4000 |
TSM1-1600N | 1000, 1250, 1600 |
| 50 | 37.5 |
Why Choose Us?1. Client's benefit first2. ReputationThe reputation of our company is much more previous than the profit of business!3. Specialized Have been focusing on this line specially for more than 21 years!4. Fully guaranteed qualityAny defective occurs during the warranty period, 100% free replacement!5. Competitive priceCountrywide networked supply of spare parts and goods makes our products be competitive.6. InnovationDeveloping new idea for products, packing, service, and so on continuouslyAbout Us We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products and so on.· Qualifications and Technological Strength We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "ROHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.· Contact Us Today We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.Let's get busy and pull together to create a better future.
For Further Informationwww.tosun.comwww.tosunlux.com
We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.
· Qualifications and Technological Strength
We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.
· Contact Us Today
We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.
Let's get busy and pull together to create a better future.
