Changzhou Sunlight Electric Co., Ltd. >> Widely Used Slt110blf Brushless Motor for Car

Widely Used Slt110blf Brushless Motor for Car

Widely Used Slt110blf Brushless Motor for Car
Price: US $ 3-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SLT110BF90
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Slt110blf90
Voltage: 315V
No Load Speed: 2800rpm
Rated Torque: 5nm
Rated Speed: 2500rpm
Rated Current: 34A
Peak Torque: 18nm
Weight: 6.9kg
Length: 143mm
Application: Medical Equpiments
Operating Speed: Adjust Speed
Excitation Mode: Compound
Structure And Working Principle: Brushless
Certification: CE
Brand: Slt

Product Description

Model:SLT110BLF90
Voltage:315V
No Load Speed:2800rpm
Rated torque:5nm
Rated Speed:2500rpm
Rated Current:34A
Peak torque:18Nm
Weight:6.9Kg
Length:143mm

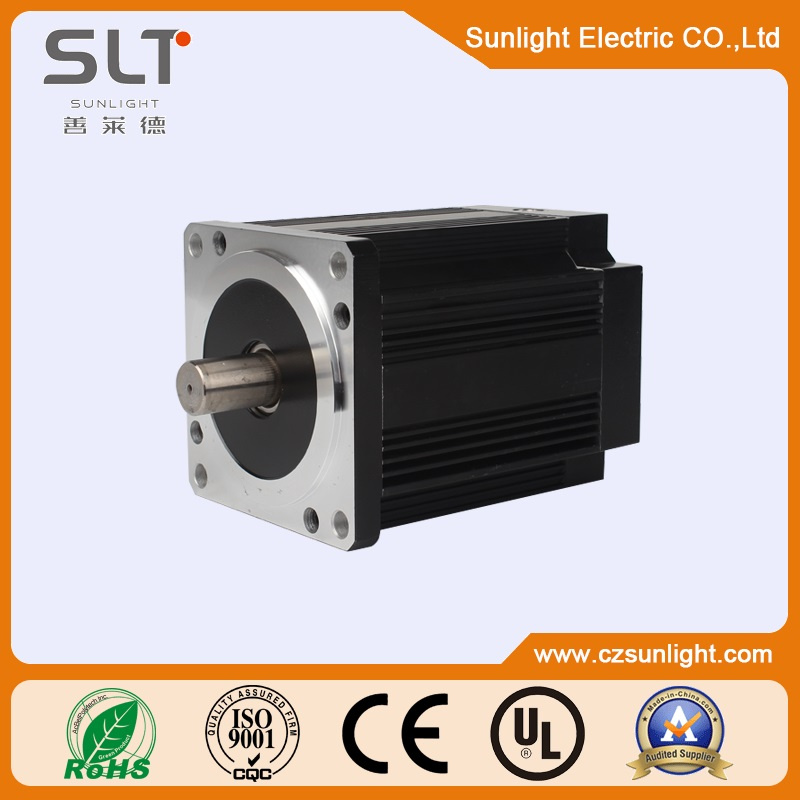

SLT110BLF-Brushless DC Motor
Technique Specification
ModelSLT110BLF30SLT110BLF60SLT110BF90SLT110BLF120
Number of poles 8
VoltageV315
No load speedRPM2800280028002800
Rated torqueN.m1.653.356.6
Rated SpeedRPM2500250025002500
Rated powerW42084012001650
Rated CurrentA11.222.53445
Peak torqueN,m6121823
Back-EMF constantV/KRPM12.512.512.512.5
WeightKg4.35.66.98.2
Lengthmm83113143173

Product Description
1.Voltage:48v
2.Current:8.6A
3.Resistor:0.2Ω-40Ω
4.Max brake torque:2-300 Oz-in
5. Step Angel Accuracy:+/-5%
6.Inductance Accuracy:+/-10%
7.Temperature Rise:+/-20%



Company Information




Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required



Contact
Changzhou sunlight Motor Co., Ltd
Contact Person: Janet Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-15961201381
Website: www.czsunlight.com or www.sunlightmotor.com
Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.

There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.

The main products are DC motor, brushless DC motor, linear actuator and DC fan.

At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.

Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.

We welcome all the global companies to visit our factory and negotiate with us!

Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"

We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.

Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on

The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;

The main linear actuator's series are: ST01, PT01, YT01 and so on;

The main fan's series are: 16inch, 12inch, and so on

So that, If you give us a chance, Sunlight Motor will not let you disappoint.
