Zhuhai Edison Smart Home Co., Ltd. >> WiFi Remote Control Room Thermostats for Ios/Android Cell Phone

WiFi Remote Control Room Thermostats for Ios/Android Cell Phone

WiFi Remote Control Room Thermostats for Ios/Android Cell Phone
Price: Negotiable/Piece
Min Order: 300/Piece
Pay Type: T/T
Prod Model: TX-928-W
Voltage: 220V
Color: White/Black Surface
Application: 2-Pipe / 4pipe Fcu System
LCD: Touch Screen with Blue Backlight
Current: 3A
Guarantee: 18 Months

Product Description

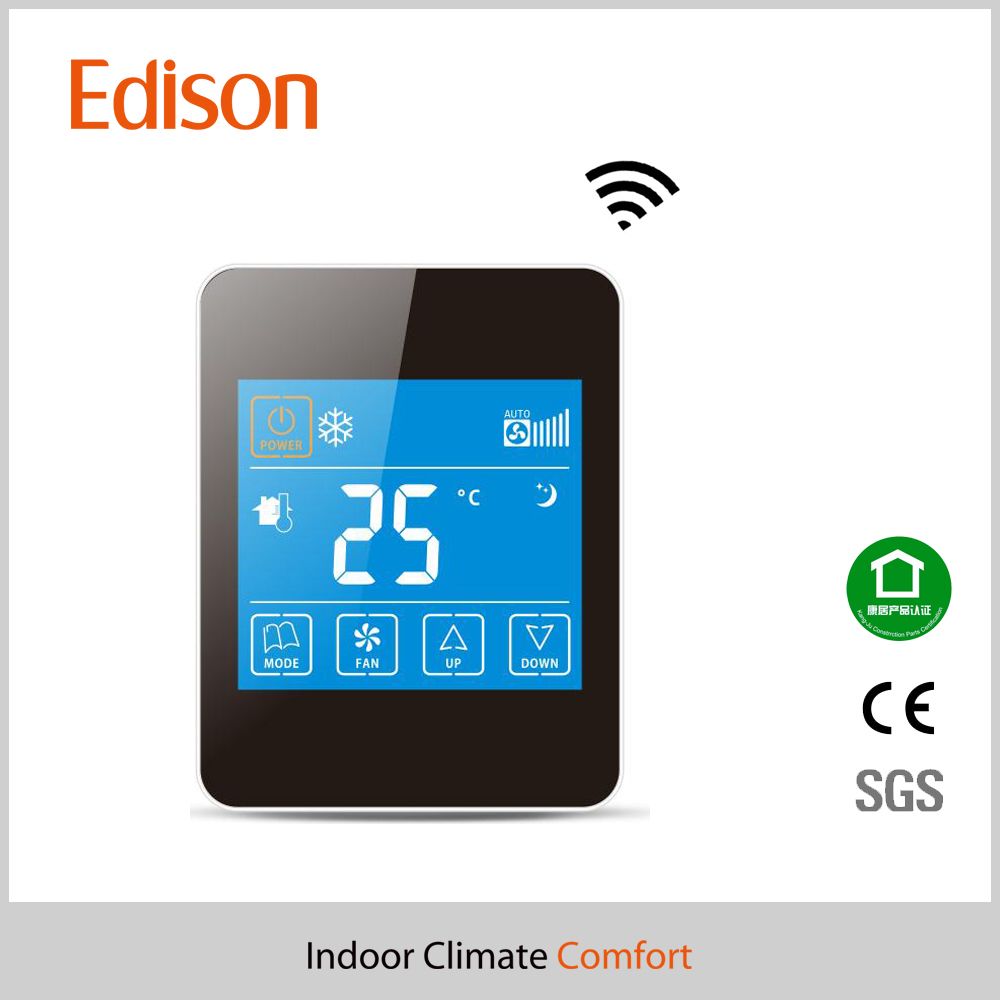

LCD Touch Screen Wifi remote control room thermostats for IOS / Android APP
Professional smart temperature controller factory , room thermostat manufacturer


TX-928-W wifi smart room thermostat is avalaible for cooling & heating central air conditioning system and suitable for 2-pipe / 4-pipe fan coil. It had built in WIFI module which is availble for remote control by cell phone, pad and laptop. Models are with NTC sensor to detect ambiet / room temperature and do the control by comparison with the setting temperature.

The model also can be with time grogram with 7-day, 6-period time program control. Manual , time program and temporary mode can be switched any time by pressing relevant keys. Defrost pretection fuction will be active when ambient temperature is below setting temperature, so as to prevent water pipe from freezing and burning.

Features:
1. Power Supply: 85VAC-265VAC, 50/60Hz
2. De-frost protection: Below 5°C
4. ON/OFF memory function: Memories the ON/OFF running state before power outage
5. LCD: Touch screen with white backlight display
6. Temp. compensation: -9-9°C
7. Application: 2-pipe/4pipe FCU and suitable for 2-line/3-line valve
8. Color: White/black surface
9. Precision: 1°C
9. Current: 3A
10. Sensor: NTC10K
11. Guarantee: 18months
12. Junction box:86*86mm,can place into NZ &Taiwan
13. power box: All-in-one
14. Certification: CE

Technical data:
ModelTX-928 Smart Room Thermostat
Application2/4-pipe FCU system
Suitable for Valve2-Line or 3-Line
Power Supply85VAC-265VAC
Setting Temp10-30 °C
Fan SpeedH/M/L/Auto
Sensor ElementNtc 25°C  C/10k±10%
Working temp0-50°C
Humidity range<90%
InstallationVertical
Shell MaterialABS Flameproof Plastic
Appearancewhite/black surface
Energy savingsleeping Function and time programmable
Current3A
SensorNTC10K
LCDTouch screen with blue backlight
Junction box86*86mm
Power boxDivided/all-in-one
Wiring port≤1.5mm²
Accuracy±1°C
Dimension:86mm*110mm*12mm(W*H*D)
De-frost protectionBelow 5°C
ON/OFF memory functionMemories the ON/OFF running state before power outage
LCDTouch screen, resistance capacitor
Transportation &Storage temp20-60°C
Temp. switches deviation1°C
Guarantee18months
PackagingBox all-in-one
Junction box86*86mm,can place into NZ &Taiwan
CertificationCE (EMC, LVD)

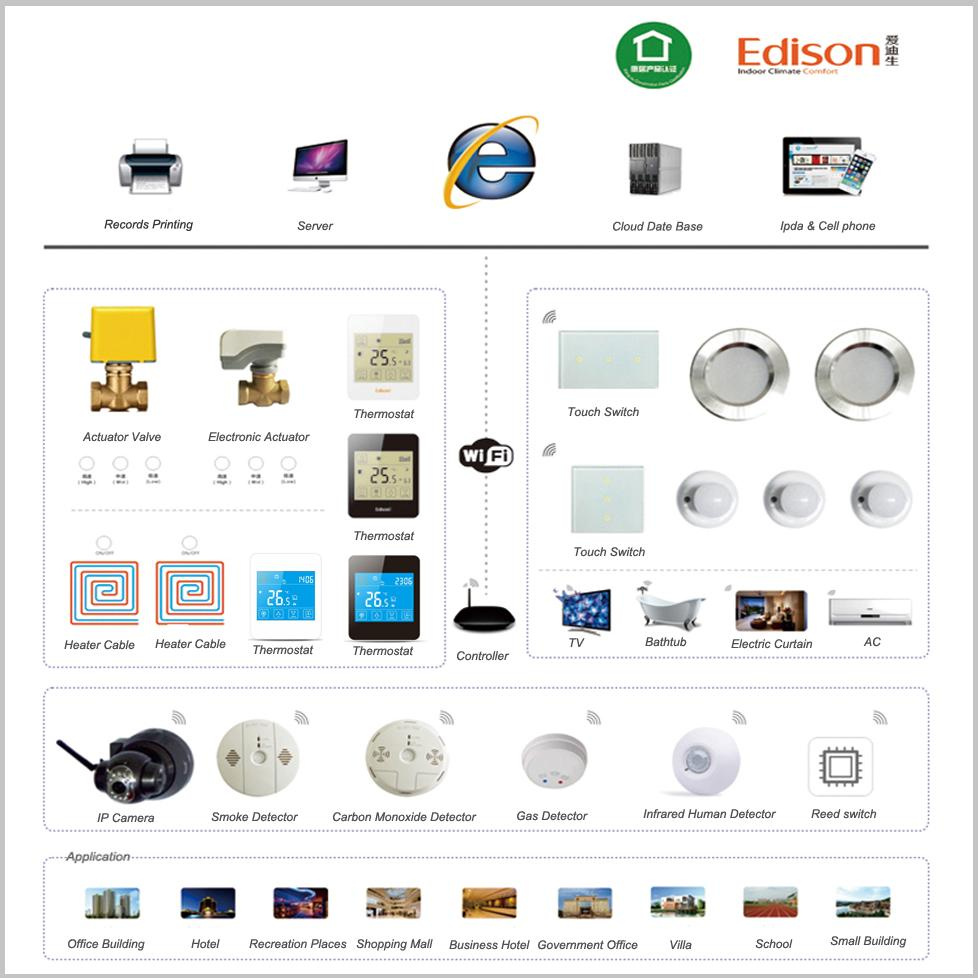

TX-928 WIFI Smart Room Thermostat is applicated in smart home system :

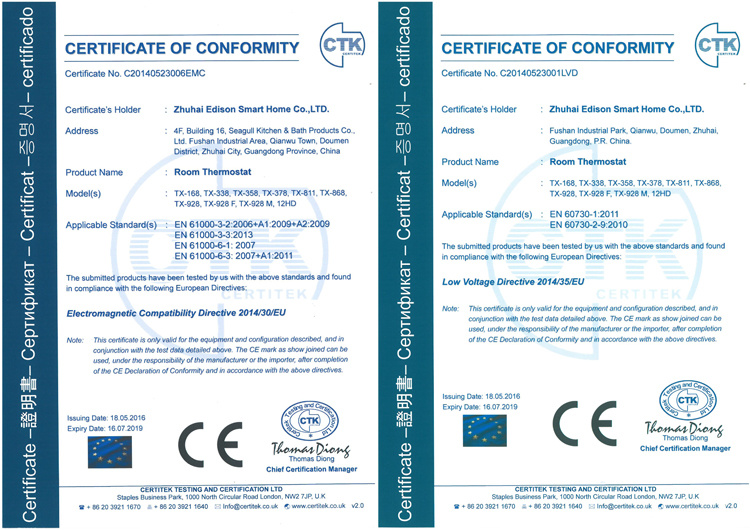

CE Certification:




About US

Company Introduction

Zhuhai Edison Smart Home Co., Ltd.(Stock Code: 837831) is a wholly owned subsidiary of Guangzhou Seagull Kitchen and Bath Products Co., Ltd (Stock Code: 002084).

Edison is devoting to R & D to manufacture and trade for room thermostats and valves series in the heating control, AC Control and smart home control products, which has obtained more than 40 invention patents and utility patents in the field of HVAC control and wifi, zigbee wireless technology, and achieved related professional certifications in Europe, America, Australia and other countries.

Edison adhering to steady development -- "be honest, hardworking, loving and do not take shortcuts". The freedom to chase our individual dream through our sweat, toil, imagination and creativity. And the imperative to strive together as well, to achieve a common good, a great good with our customers and suppliers.

Edison Focus on " Comfort and Energy Conservation"

TECHNOLOGY & QUALITY
High Quality Originates from High Standards.

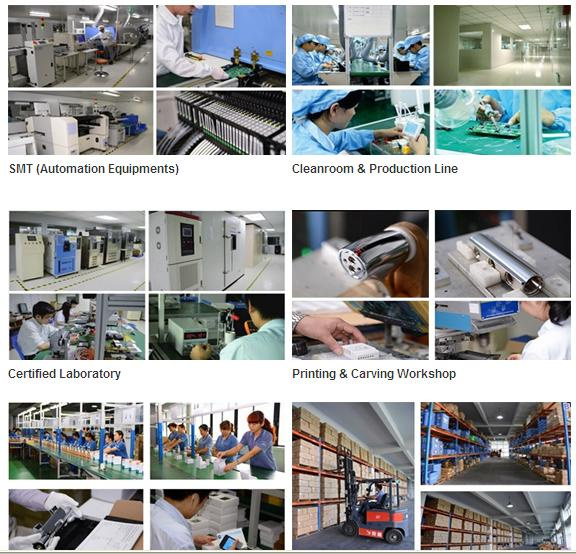

From raw material forming, brass casting, forging, zinc die casting, CNC machining, plating, calibration, SMT and electronic products assembling in a Class 100,000 cleanroom, Edison has full range of European industrial standard production processes in house, and we are aiming to provide competitive quality products with 100% on time in full delivery service



OEM /ODM order can be available

Edison has a strong design and R&D team and would like to undertake customized order included hardware, software and product design

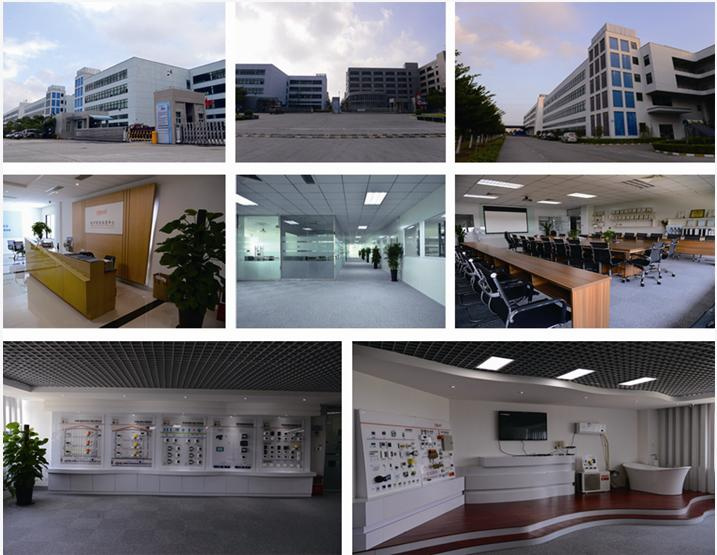

Zhuhai Edison Smart Home Co., Ltd. is a wholly owned subsidiary of Guangzhou Seagull Kitchen and Bath Products Co., Ltd. With the manufacturing base covering an area of 300, 000 square meters, which registered "Edison" trademark in European Union in 2003. In 2010, Edison won the "China Well-known Brand" title, and first passed "National Comfortable Housing Certificate" which was acknowledged by the National Housing and Urban & Rural Construction Ministry. Moreover, Edison won the Excellent Product Award at International high-tech Fair in 2012.

Seagull Group with the registered capital RMB280 Million went public in Shenzhen Stock Exchange A share in 2006. By now, the total asset of Seagull Group is high up to RMB1, 510 Million, its annual sales volume is over 60 million units and constant sales revenue enjoys more than RMB1.2 billion.

Seagull Group as a high-tech enterprise has passed ISO9001 International Quality System Certification and established ISO14001 Environmental Management System & OHSAS8001 Career Health System.

Relying on the solid technology and the production capability of Seagull Group in casting of copper alloys, forging, machining, plating, electronics & communication and other fields, Edison has developed many series of HVAC control products in the past decade and obtained the professional certificate in Europe, America and Australia etc. Thereby Edison keeps the leading position in the domestic HVAC industry. Edison focused on developing HVAC energysaving, water saving, environmental products and invested a huge sum of money to supply under floor heating, radiator, intelligent control system of air conditioning, integration system of heating measurement & temperature, and the corresponding accessory products in comfortable household product field characterized at thermostatic, constant moisture & constant oxygen to meet a variety of individual demand of the government and the market. Among them, Heat Metering and Temperature control system and the Time On/Off & Area Metering System have been cognized by both the government and industry in the northeast, north China and northwest regions.

Edison stresses independent research & development and has obtained numbers of technology patent. To meet customer's individual demand through rapid response, Edison is anticipated to achieve a win-win situation of common development for both the company and customer.

Edison adhering to steady development -- "be honest, hardworking, loving and do not take shortcuts".

We will continue to work hard to create a comfortable environment for sustainable development of society, focusing on the integration of comfortable home systems and HVAC energy saving, and serving the community.

Edison has obtained more than 40 invention patents and utility patents in the field of HVAC control and zigbee technology, and achieved related professional certifications in Europe, America, Australia and other countries.
