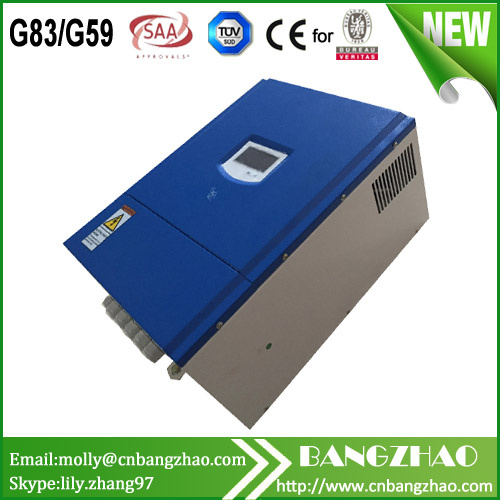

Wind Battery Charge Controller for 5kw Wind System

Prod Model:	BWS-5KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Apply For:	Solar System
Wind Turbine:	5000W
Solar Panels:	1500W
Display:	LCD
Battery Voltage:	48VDC
Task:	Adjust
Structure:	Combination
Mathematical Model:	Linear
Signal:	Discrete
Function:	Battery Charge
Certification:	CE
Condition:	New
Customized:	Customized
Material:	Iron

Product Description

wind charge controller for 5kw wind system

Product Characteristic
The big screen LCD display. Clearly present the working status of the wind turbine, solar panel, battery and controller.(Wind turbine voltage, current, power display ;solar voltage, current, power display, battery charging current, voltage, charging power, power display.)
Two sets of control systems:PWM constant voltage system and three-phase dump load system.
PWM constant voltage control is 120% of the rated power of the wind turbine . In case exceeding of PWM's capacity, the three-phase dump load will automatically start immediately to ensure safe running of the overall wind turbine system.
Under the circumstances of disconnecting or damage of the battery, the three-phase dump load will start automatically to avoid the idling for wind turbine and the occurrence of runaway accident.
Under the strong or super-strong wind conditions PWM control to ensure battery charged by the wind turbine with constant voltage and current.
The protection function of reverse connection, disconnection and damage-resisting of the battery will be applied.
Over-charging protection of the battery: When the battery is full (the battery voltage getting 125% of the rated voltage), the controller will carry out three-phase dump load automatically to stop charging the battery.
Auto recharging of battery: When the battery voltage reduces to 108% of the rated voltage, it stops three-phase dump load to recharge battery automatically.
For the different wind turbine type, the controller can be equipped with mechanical yawing, furled empennage, mechanical or hydraulic, pneumatic, electric magnetic and other brake functions.
The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On the other way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.
Ammeter and voltmeter indication: Indicate the charging current and voltage of the battery.
The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.

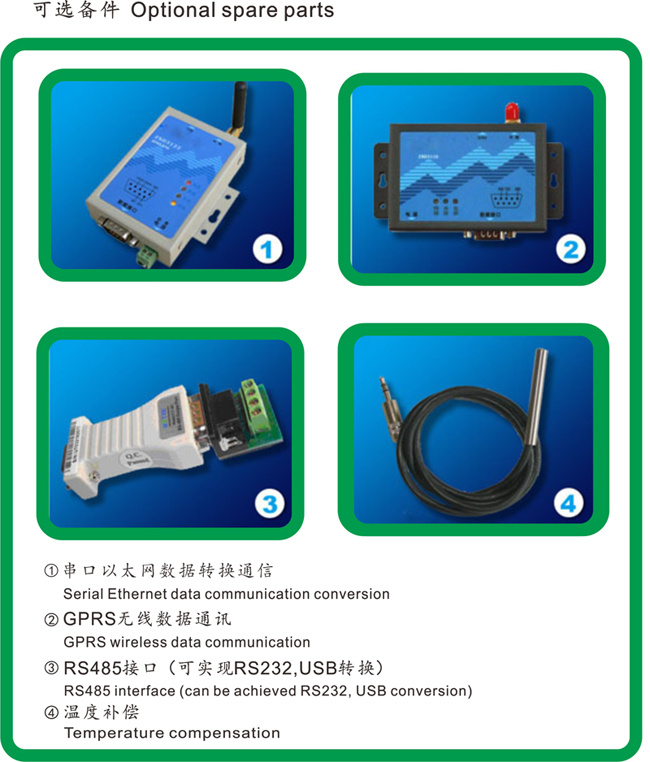

 Optional communication Mode:RS232,RS485,GPRS,USB,RJ45 ect, Can monitor multiple devices running.

Technical Parameters


Model	BWS-6.5KW-48Vdc
Wind power	5KW
Solar panel power	1.5KW
Battery	48Vdc
Function	Charge, control
Operating environment	Temperature -10-40ºC,humidity≤80%
PWM constant pressure voltage	>56Vdc
3-phase load voltage of the wind turbine	58±1Vdc
Recovery charging voltage of the wind turbine	54±1Vdc
Solar controller stop charging voltage	58±1Vdc
Solar restore charge voltage	54±1Vdc
Low-voltage of the battery	40±1Vdc
Self-provided connecting wire of the battery	>20mm²
PWM fuse	125A
Solar fuse	32A
Charging fuse	160A

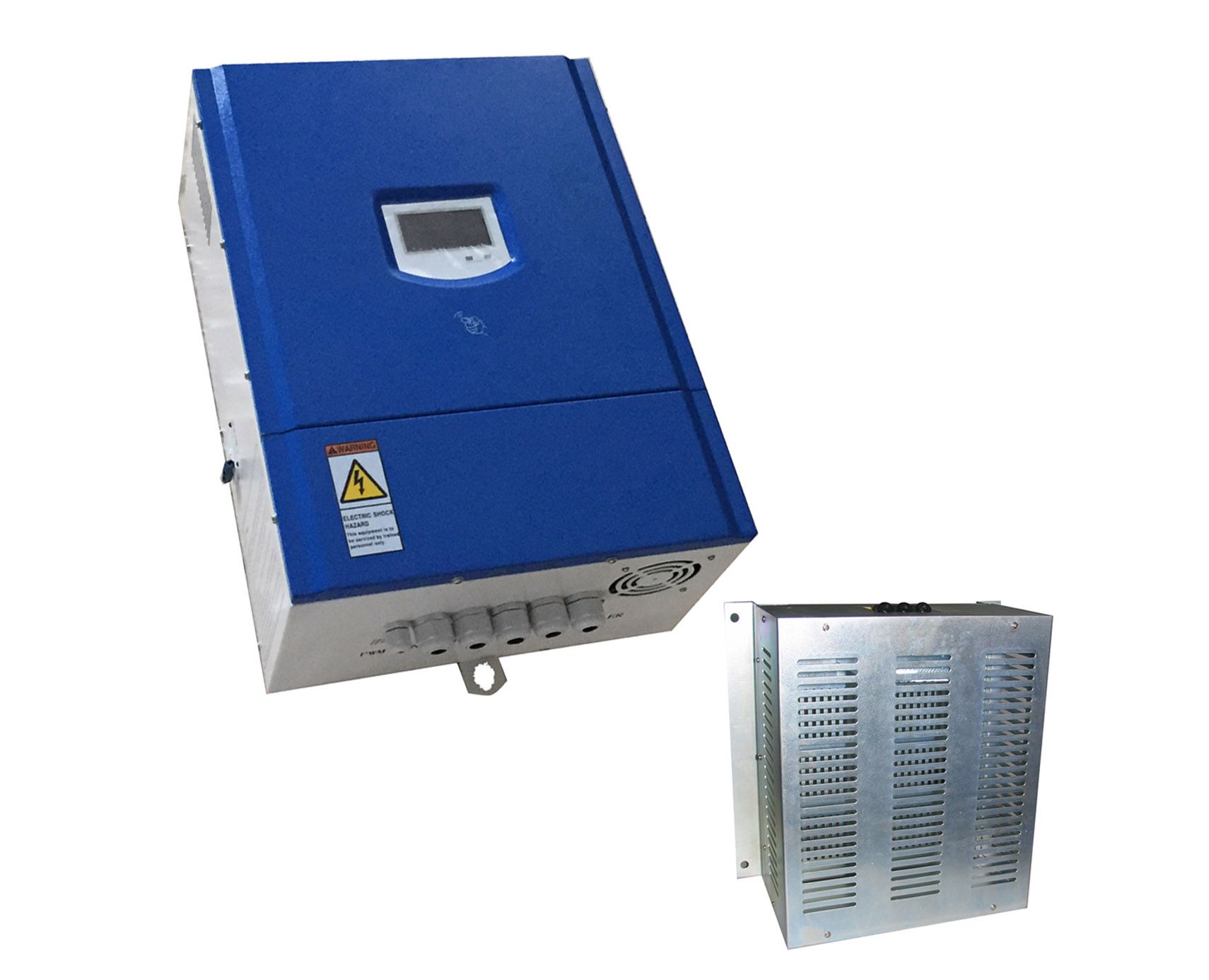

Size of the controller	550*400*230 mm
Weight of the controller	23Kg
Size of the load	660*510*450 mm
Weight of the load	31 Kg



Above parameter only for reference
1. Could be custom made to user specifications.
2. Could have solar power.




Type	6.5KW-120Vdc	6.5KW-240Vdc
Wind power	5KW	5KW
Solar panel power	1.5KW	1.5KW
Battery	120Vdc	240Vdc
Function	Charge, control
Operating environment	Temperature -10-40ºC,humidity≤80%
PWM constant pressure voltage	>135Vdc	>280 Vdc
3-phase load voltage of the wind turbine	145±2Vdc	290±5Vdc
Recovery charging voltage of the wind turbine	135±2Vdc	280±5Vdc
Solar controller stop charging voltage	145±2Vdc	290±5Vdc
Solar restore charge voltage	135±2Vdc	280±5Vdc
Low-voltage of the battery	100±2Vdc	200±5Vdc
Self-provided connecting wire of the battery	>10mm²	>6mm²
PWM fuse	63A	40A
Solar fuse	16A	10A
Charging fuse	63A	50A
Size of the controller	500*440*290 mm	500*440*290 mm
Weight of the controller	21 Kg	21 Kg
Size of the load	660*510*450 mm	660*510*450 mm
Weight of the load	31 Kg	31 Kg

 FAQ:
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.

Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.

Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.

Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.

Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .

Q8. What is the warranty period ?
A. Normally 1 year .
