| Prod Model: |
6FM200S(12V200ah) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black or Orange |
| Terminal: |
F19 |
| Size: |
L522*W240*H219(Th224) |
| Weight: |
62kg |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
24V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

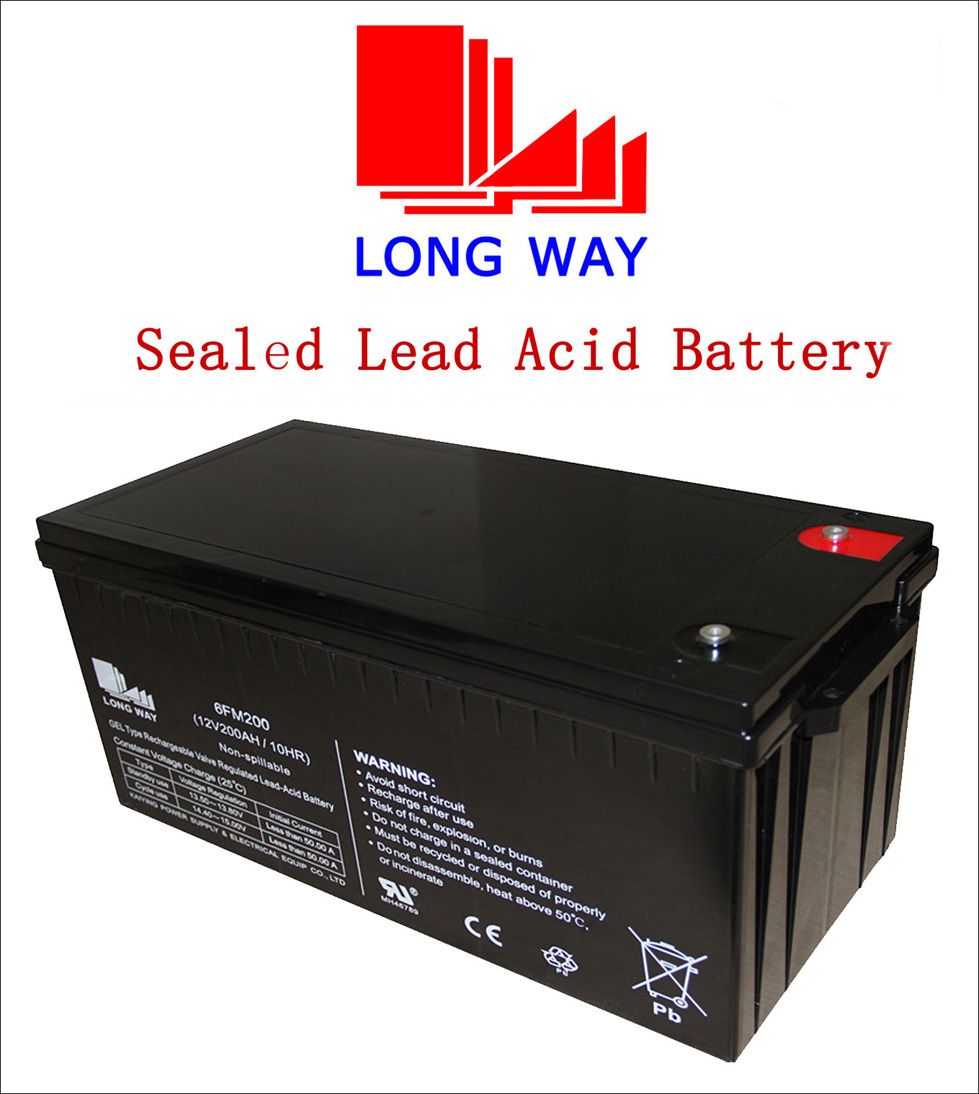

12v200ah Storage battery Sealed Rechargeable Lead-Acid Battery (6FM200S)
*LONG WAY S series is specially designed for solar system & wind power system. According the condition of applications, Zhongshan Long Way Battery Manufacturing Co., Ltd., spent more than one year to develop and research S series. S Series performs excellent when it is recharged in high ambient temperature, discharge in low ambient temperature. S Series has good capacity retention under the poor recharging condition.
1)Product descriptions
*Model: 6FM200S (12V200AH/10HR)
*Capacity: 200Ah@10Hr-rate to 1.80V per cell@25ºC*Application: Solar System; Wind Power System
*Size: L522*W240*H219(TH224)*Approx Weight: Approx.(62±3%) kg (136.7lbs)*Operating Temperature Range: Discharge: -15ºC~50ºC
Charge: -15ºC~40ºC
Storage: -15ºC~40ºC*Nominal Operating Temperature Range:25ºC±3ºC* Float Charging Voltage:13.7~13.9VDC/unit Average @25ºC*Maximum Charging Current :50A*Equalization and Cycle Service:14.4V~15.0VDC/unit Average @ 25ºC*Self Discharge:Self-discharge ratio less than 3% per month at 25ºC. *Terminal: F19*Container Material:ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request
2)General Features:
High Recharging Efficiency;
Good Renewal Ability after Deep Discharge;
Excellent Performance in Low Temperature;
Maintenance-Free; Safe and Non-spillable;
Long Life Service; UL Approvals*Designed Service Life: 10 years*warranty: 2 years*OEM AcceptableFor more information, welcome to contact us!| Standby Storage Series batteries |
| Battery Model | Nominal
Voltage(V) | Nominal
Capacity
(AH) | Length | Width | Height | Total Height | Weight(5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 6FM7S | 12 | 7 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.85 | 2.20 | F1/F1 | F |
| 6FM9S | 12 | 9 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.73 | 2.60 | F1/F1 | F |
| 6FM12S | 12 | 12 | 5.94 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 8.27 | 3.75 | F2 | F |
| 6FM18S | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.24 | 5.10 | F4 | D |
| 6FM20S | 12 | 20 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 12.35 | 5.60 | F4 | D |
| 6FM24S | 12 | 24 | 6.89 | 175 | 6.54 | 168 | 4.96 | 126 | 4.96 | 126 | 18.08 | 8.20 | F4/F8 | D |
| 6FM28S | 12 | 28 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 19.84 | 9.00 | F4/F8 | D |
| 6FM33S | 12 | 33 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 23.15 | 10.50 | F9 | C |
| 6FM40S | 12 | 40 | 7.8 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 29.10 | 1320 | F9 | D |
| 6FM55S | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 38.58 | 17.50 | F9 | C |
| 6FM65S | 12 | 65 | 13.78 | 350 | 6.5 | 165 | 7.17 | 162 | 7.17 | 182 | 49.60 | 22.50 | F6/F9 | C |
| 6FM80S | 12 | 80 | 12.09 | 307 | 6.57 | 167 | 8.27 | 210 | 8.46 | 215 | 52.91 | 24.00 | F9 | C |
| 6FM90S | 12 | 90 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 58.42 | 26.50 | F9 | C |
| 6FM100S | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 66.14 | 30.00 | F11 | C |
| 6FM120S | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 9.33 | 237 | 9.33 | 237 | 77.16 | 35.00 | F11 | C |
| 6FM134S | 12 | 134 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 91.49 | 41.50 | F10 | C |
| 6FM150S | 12 | 150 | 19.02 | 483 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 97.00 | 44.00 | F11 | C |
| 6FM200S | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 132.28 | 60.00 | F11 | E |
| 6FM250S | 12 | 250 | 20.47 | 520 | 10.59 | 269 | 8.66 | 220 | 9.65 | 245 | 154.32 | 70.00 | F11 | E |
| FM200S | 2 | 200 | 6.77 | 172 | 4.37 | 111 | 13.31 | 338 | 14.37 | 365 | 28.66 | 13.00 | F13 | G |
| FM300S | 2 | 300 | 6.77 | 172 | 5.94 | 151 | 13.39 | 340 | 14.37 | 365 | 39.68 | 18.00 | F13 | G |
| FM400S | 2 | 400 | 8.31 | 211 | 6.89 | 175 | 13.23 | 336 | 14.37 | 365 | 52.91 | 24.00 | F13 | G |
| FM500S | 2 | 500 | 9.45 | 240 | 6.81 | 173 | 13.31 | 338 | 14.37 | 365 | 66.14 | 30.00 | F13 | H |
| FM600S | 2 | 600 | 11.89 | 302 | 6.89 | 175 | 13.39 | 340 | 14.37 | 365 | 80.47 | 36.50 | F13 | H |
| FM800S | 2 | 800 | 16.14 | 410 | 6.93 | 176 | 13.39 | 340 | 14.37 | 365 | 112.44 | 51.00 | F13 | I |
| FM1000S | 2 | 1000 | 18.7 | 475 | 6.89 | 175 | 13.31 | 338 | 14.37 | 365 | 132.28 | 60.00 | F13 | I |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
