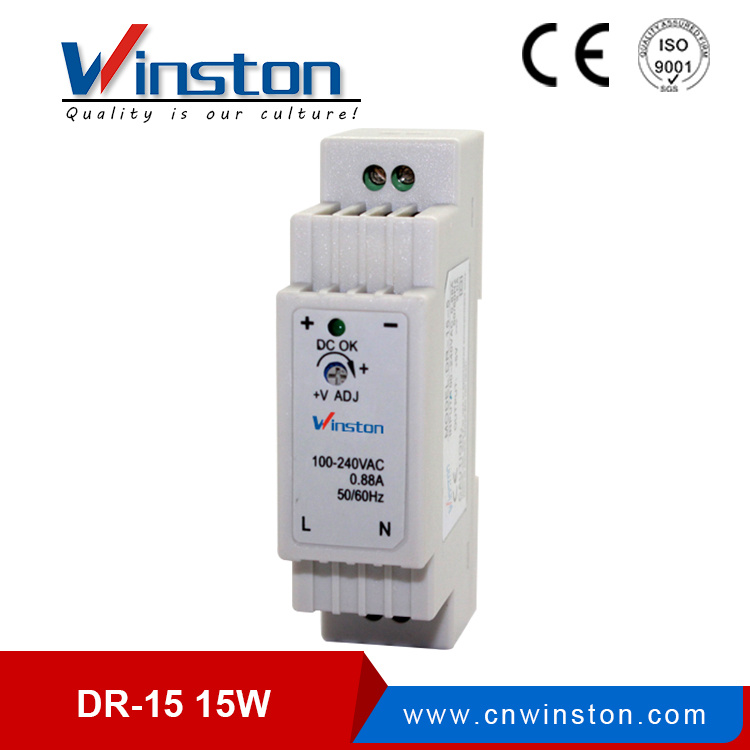

Winston Single Output 15W DIN Rain Power Supply (DR-15)

Winston Single Output 15W DIN Rain Power Supply (DR-15)
Price: US $ 7.5-9/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: DR-15
Output Current: 2.4A
Efficiency: 77%
Application: LED
Output Frequency: 47-63Hz
Output Type: Single
Warranty: 2 Years
Output Power: 1 - 50W
Certification: CCC
Input Voltage: 85 ~ 264VAC 120 ~ 370VDC
Brand: Winston

Product Description

Features:
Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Isolation class
LED indicator for power on
No load power consumption<0.5W
100% full load burn-in test
2 years warranty

SPECIFICATIONS
OUTPUT
ModelDR-15-5DR15-12DR-15-15DR-15-24
DC Voltage 5V12V15V24V
Rated Current 2.4A1.25A1A0.63A
Current Range 0-2.4A0-1.25A0-1A0-0.63A
Rated Power 12W15W15W15.2W
Ripple & Noise 80mVp-p120mVp-p120mVp-p150mVp-p
Voltage Adj. Range4.75-5.5V10.8-13.2V13.5-16.5V21.6-26.4V
Voltage Tolerance ±2%±1%±1%±1%
Line regulation±1%±1%±1%±1%
Load regulation±1%±1%±1%±1%
Setup, Rise, Hold Up Time 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load  70ms/230VAC          16ms/115VAC at full load

INPUT
Voltage Range 85 ~ 264VAC          120 ~ 370VDC
AC Current0.88A/115VAC          0.48A/230VAC
Efficiency77%84%83.50%85%
Inrush Current COLD START 35A/115VAC          65A/230VAC

PROTECTION
Over Load 105%~160% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage 5.75-6.75V13.8-16.2V17.25-20.25V27.6-32.4V
Protection type: Shut off o/p voltage, clamping by zener diode

ENVIRONMENT
Working Temp., Humidity-20ºC~+60ºC; 20%~90% RH non-condensing
Storage Temp., Humidity-40ºC~+85ºC; 10%~95%RH
Temp. Coefficient±0.03%/ºC(0~50ºC)
Vibration10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes, Mounting: Compliance to IE60068-2-6

SAFETY
Withstand VoltageI/P-O/P: 3KVAC
Isolation ResistanceI/P-O/P: 100M Ohms / 500VDC/ 25ºC/ 70%RH

STANDARD
Safety StandardDesign refer to UL60950-1,TUV EN60950-1,EN50178
EMC StandardDesign refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2,EN61204-3, heavy industry level, criteria A

OTHERS
Dimension25*93*56mm(W*H*D)
Weight0.1Kg
Packing140pcs/15KG/0.92CUFT
