Winston Touch Screen Period Programming Thermostat Wstr9

Winston Touch Screen Period Programming Thermostat Wstr9
Price: US $ 15.89-19.42/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: WSTR9
Service Life: > 100,000 Cycles
Dimensions: 86*98*43mm
Weight: Approx. 0.35kg
Mounting Position: Wall Amount
Type: Period Programming Thermostat
Mounting: Connection Box with Screw
Sensor Element: Thermostatic Bimetal
Protection Type: IP20
Approvals: Ce
Connection: 7-Pole Terminal

Product Description

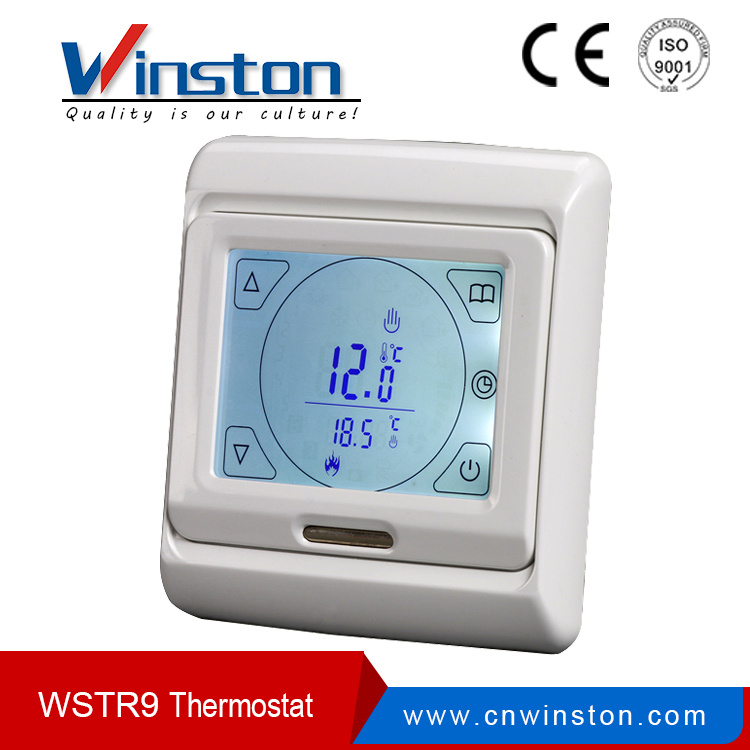

Winston Touch Screen  Period Programming Thermostat WSTR9
Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called
events each day with corresponding pre-set temperatures,also you can select " Period control mode" or "manual mode" accroding to your individual requirements,The thermostat is recommended for the control of electric heating device or on/off value actuator used in water-based heating system.

Technical Parameters
Voltage230VAC,50/60Hz
Power Consumption2VA
Setting Range 5ºC---90ºC
Limitation Range5ºC--60ºC (factory setting 35ºC)
Accuracy of temperature measurement 0.5~10 Adjustable, factory setting±1ºC
Ambient temperature -5~50ºC
Protective housingIP20
Housing material anti-flammable PC

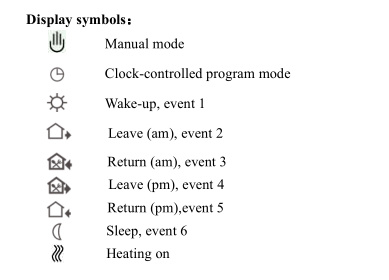

Display symbols


User operation

1) Power key " "
You can turn on/off the thermostat by pressing this key. Also you can confirm and exit by pressing " "key when you have completed the setting of every parameter.
2) The increase key" "and the decrease key" "
In the period control mode or comfort mode , when you press the increase/decrease key once, alternate display stops in the bottom right region and the value of the pre-set temperature will increase/decrease 1 . It will recover the alternate display
with no operation for 3 seconds.
3) Time setting key "
you can adjust the time and week by pressing the key once. If it is pressed, the hour bit flashes. Then you can press " " key and " "key to change its value. When you cmplete the setting of hour bit, you can press this key to confirm and continue the setting of minute bit and week bit sequently. After the completion of time, you can press" "to confirm and exit.
4) Mode selection key" M "
You can select period control mode or comfort mode by pressing the key. If you press this key and hold for 3 seconds, you can enter the mode of period
programming.
5) Locking " " and unlocking
When you press " "and" "at the same time and hold for 3 seconds, the thermostat will be locked/unlocked. When it is locked, no operation can be carried out until it is unlocked.

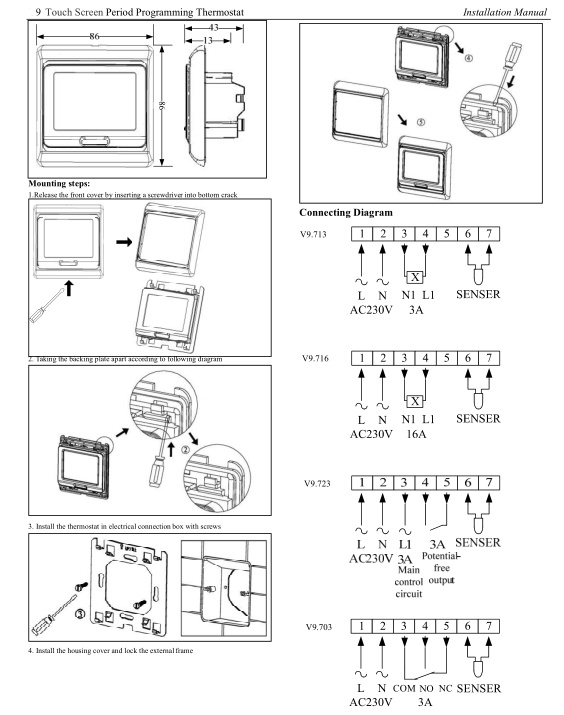

Installation Manual
