Yueqing Winston Electric Co., Ltd. >> Winston Wstg600 AC Motor Change Speed Frequency Inverter with Ce

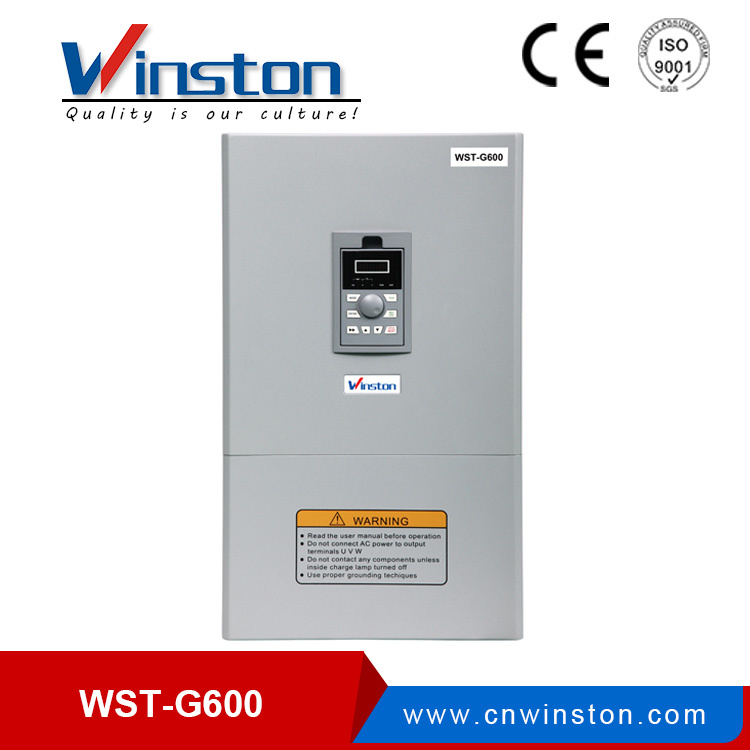

Winston Wstg600 AC Motor Change Speed Frequency Inverter with Ce

Winston Wstg600 AC Motor Change Speed Frequency Inverter with Ce
Price: US $ 2625.44-3175.57/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: WSTG600-4T160G
Input Voltage: 380VAC
Phase: Three-Phase
Power Capacity: 231
Input Current: 307
Output Current: 304
Adaptation Motor: 160kw
Type: General
Frequency Inverter: 50/60Hz
Size: 790*586*317mm
Warranty: 2 Years
Application: High Frequency Converter Transducer
Output Type: Triple
Principle Of Work: V/F Control Transducer
Main Circuit Type: Voltage
Switch Mode: Sensor Control
Voltage Of Power Supply: 380VAC
Function: Change Motor Speed
Brand: Winston

Product Description

Winston WSTG600 AC Motor Change Speed Frequency Inverter With ce

Applications
-Printing machine                               -Packaging machine
-Winding machine                               -Film blowing machine
-High-speed engraving and milling machine       -Machining center
-Lathe                                          -Milling machine
-Deep hole drill                                 -Grinding machine
-Fan pump                                     -Wire drawing machine

Features:
*Support Synchronous and Asynchronous motor
*Speed-sensor control and speed-sensorless control programmable
*Position control,speed control and torque control programmable

Datasheet
Three-Phase power supply : 380V 50/60Hz
ModelPower Capacity KVAInput currentoutput currentAdapation Notor
KWHP
WSTG600-4T0.7GB1.53.42.10.751
WSTG600-4T1.5GB3.05.03.81.52
WSTG600-4T2.2GB4.05.85.12.23
WSTG600-4T4.0GB5.910.59.045
WSTG600-4T5.5GB     WSTG600-4T5.5P-B8.914.613.05.57.5
WSTG600-4T7.5GB     WSTG600-4T7.5P-B11.020.517.07.510
WSTG600-4T11GB      WSTG600-4T11P-B17.026.025.01115
WSTG600-4T15GB      WSTG600-4T15P-B21.035.032.01520
WSTG600-4T18.5G    WSTG600-4T18.5P-B24.038.537.018.525
WSTG600-4T22G       WSTG600-4T22P30.046.545.02230
WSTG600-4T30G       WSTG600-4T30P40.062.060.03040
WSTG600-4T37G       WSTG600-4T37P57.076.075.03750
WSTG600-4T45G       WSTG600-4T45P69.092.091.04560
WSTG600-4T55G       WSTG600-4T55P85.0113.0112.05570
WSTG600-4T75G       WSTG600-4T75P114.0157.0150.075100
WSTG600-4T90G       WSTG600-4T90P134.0180.0176.090125
WSTG600-4T110G      WSTG600-4T110P160.0214.0210.0110150
WSTG600-4T132G      WSTG600-4T132P192.0256.0253.0132175
WSTG600-4T160G      WSTG600-4T160P231.0307.0304.0160210
WSTG600-4T185G      WSTG600-4T185P234.0326.0350.0185250
WSTG600-4T200G      WSTG600-4T200P250.0385.0377.0200260
WSTG600-4T220G      WSTG600-4T220P280.0430.0426.0220300
WSTG600-4T250G      WSTG600-4T250P355.0468.0465.0250350
WSTG600-4T280G      WSTG600-4T280P396.0525.0520.0280370
WSTG600-4T315G      WSTG600-4T315P445.0590.0585.0315500
WSTG600-4T355G      WSTG600-4T355P500.0665.0650.0355420
WSTG600-4T400G      WSTG600-4T400P565.0785.0725.0400530
WSTG600-4T450P630.0883.0820.0450600

Motor -- Output AC Reactor -- Output Filter -- Inverter -- Input Filter -- Input AC Reactor --Circuit Breaker of RCD
