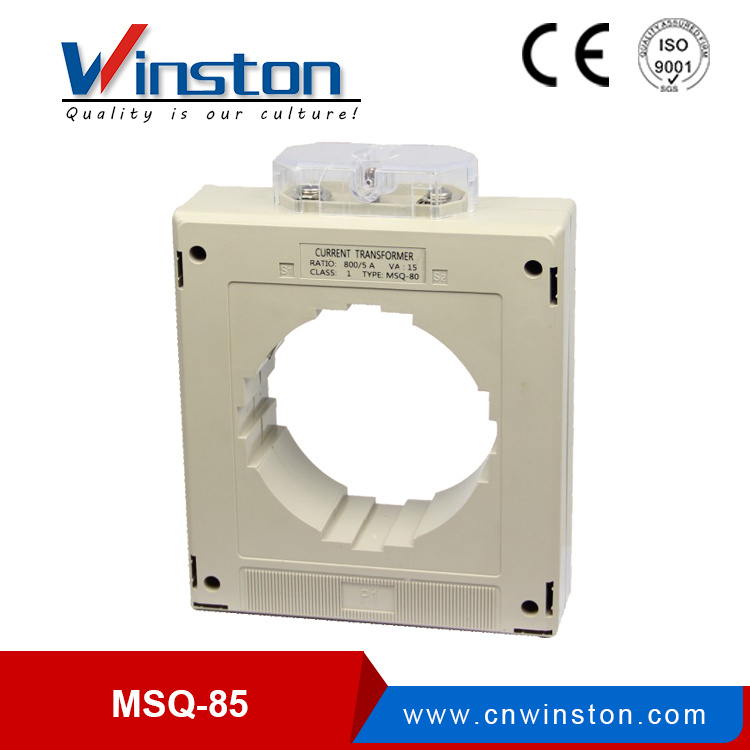

Winton Msq-85 750/5A-2000/5A DIN Rail Mounted Current Transformer

Winton Msq-85 750/5A-2000/5A DIN Rail Mounted Current Transformer
Price: US $ 4.12-6.8/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: MSQ-85
Antistop: DIN Rail Mounted Current Transformer
Rated Test Voltage: 3kv AC (1min)
Secondary Current: 5A / 1A
Rated Insulation Voltage: AC 0.72kv
Working Temperature: -10~+50
Rated Frequency: 50/60Hz
Housing Self-Extinguishing Class: Vo
Ration: 750/5A-2000/5A
Warranty: 24 Months
Certificate: Ce
Application: Instrument
Type: Current Transformer
Phase: Three

Product Description

Description

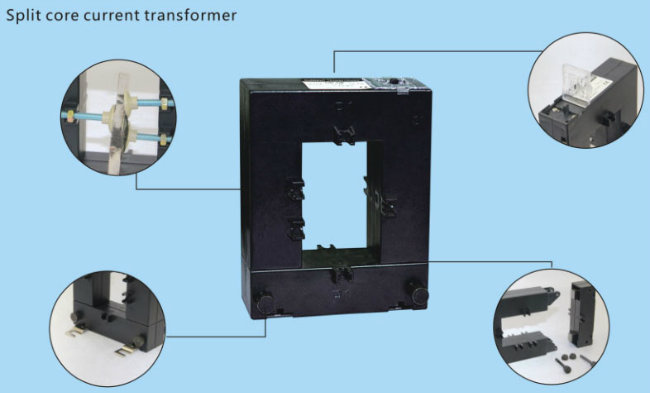

The MSQ Series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or busbar circuit.The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or busbar through the transformer core to connect such cables to the primary terminals.

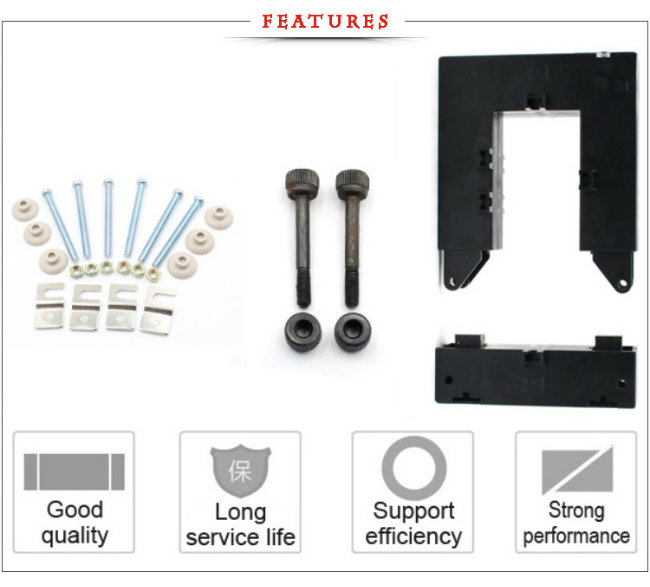

Feature
Two installation methods: Panel / Busbar.
Wide inner window,allowing clamping of big cables or busbar
Wide range of sizes to accommodate all the existing installation
Primary current from 5A to 5000A


Specifications
Rated frequency50Hz/60Hz
Rated test voltage3kv AC (1min)
Rated short-time thermal current (lth)60in
Rated dynamic current (ldyn)2.5lth
Rated voltage (Um)0.72kv AC
Continuous overload (ld)1.2In
Operating temperature-10°C~50°C
Housing self-extinguishing classVO
Safety factorFS 5
Secondary current5A/1A

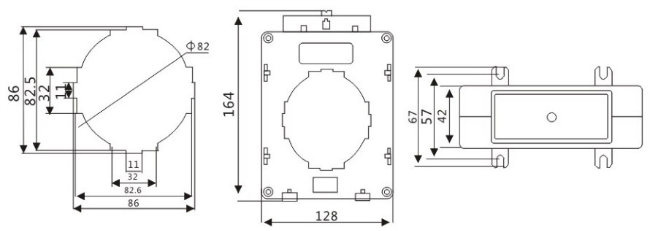

Technical data and dimension

TypeRation (A)Rated power (VA)
Class: 0.5Class: 1.0
MSQ-85750/5510
MSQ-85800/57.510
MSQ-851000/51010
MSQ-851200/51015
MSQ-851500/51515
MSQ-851600/51515
MSQ-852000/51515

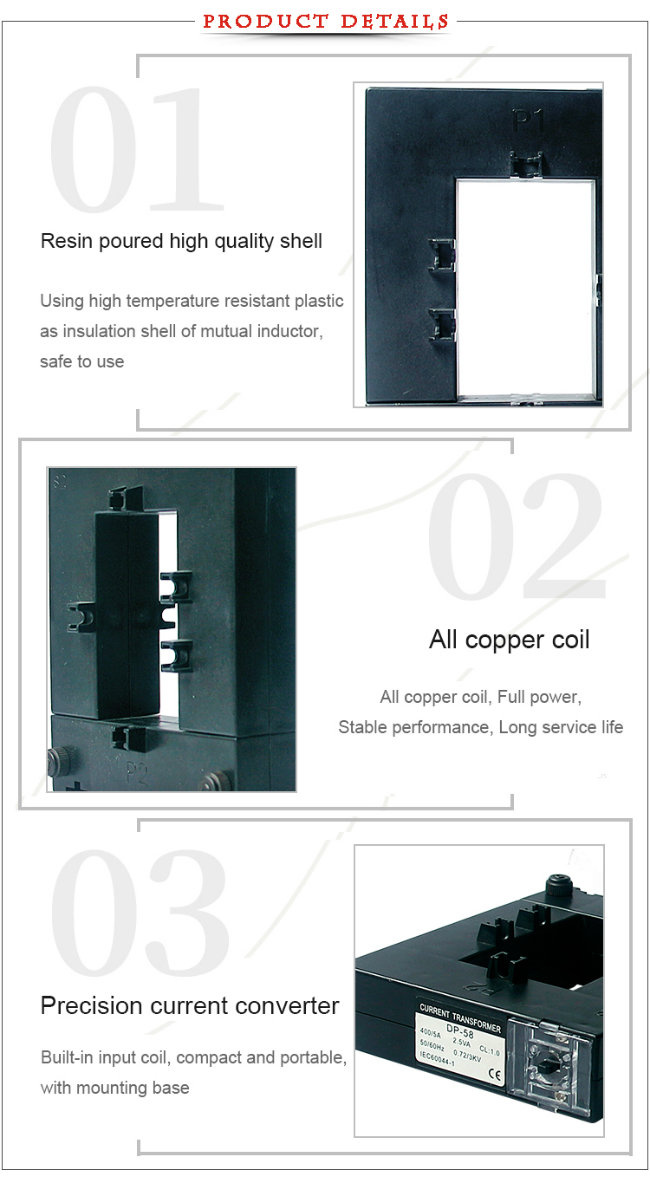

Product detail
