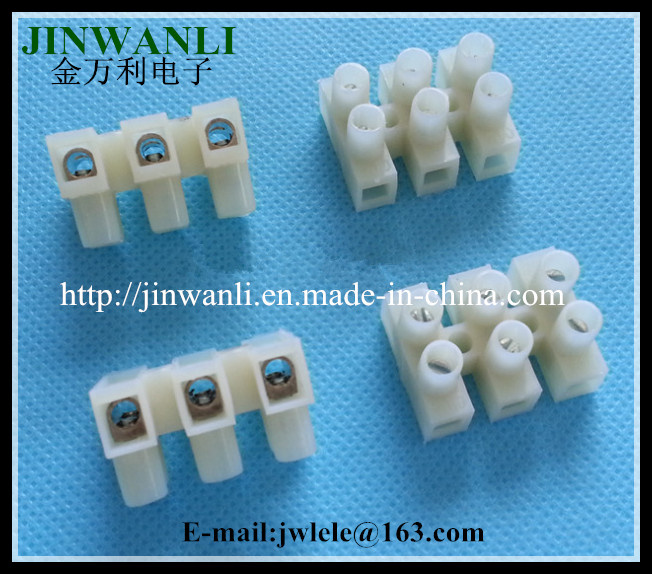

Wire 3 Position Barrier Terminal Strip Block 450A 30A 22-10AWG

Name: Wire 3 Position Barrier Terminal Strip Block 450A 30A 22-10AWG
Brand: all-electronics-online.com
SKU: 768748685
Availability: InStock
Rating: 5 (129 reviews)

Price:	US $ 0.125-0.13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle

Product Description

Supply PA10 Terminal Block (H type)
1) suitable for wires: 2.5MM
2) Rate: 24A 450V
3) Screw:M3*6
4) Size:117.5*20.2*17 mm
5)delivery time:a week ,10-15 days,usually have 1000PCS in stock
6) 2 way, 3way, 4 way, 6 way

----Technical data ----

Model	PA8/PA10/PA12 screw terminal block connector high quality
Material	Nylon PA
Housing	94V-2grade
Operating Temperature	T110
Cross Section	0.5-4.0mm2
Voltage/Ampere	17.5A/24A 450VAC/750VAC
Color	white
Insert	Nickel plated brass/zinc plated steel
Screw	M3*6 yellow chromated
Function	wire connection
Applications	1. Indoor and Outdoor Installations
	2. Rapid Deployment Installations
	3. Corrosive Environments & Hotspot

Model	Ampere(A)	Volage(VAC)	Dimensions(mm)					Packing
Model	Ampere(A)	Volage(VAC)	A	B	C	D	E	Packing
PA8	17.5	450	95.8	18	13.3	8	2.9	50pcs/bag 500pcs/ctn
PA8DS	17.5	450	95.8	18	13.3	8	2.9
PA10	24	450	117.5	20	15.5	10	3.5
PA10DS	24	450	117.5	20	15.5	10	3.5
K10	24	750	117.5	30.5	21.5	10	3.5

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
